What Is the Function of RS232 Port on NVR Explained

The RS232 port on an NVR serves as a critical communication interface for system configuration, firmware updates, and direct connection to PTZ (pan-tilt-zoom) cameras or alarm devices. Enabling serial control and diagnostics, it allows installers to fine-tune settings and troubleshoot issues via terminal software, ensuring reliable integration in professional surveillance setups.

Key Takeaways

• RS232 enables direct NVR configuration via serial commands for advanced settings.
• Use it for firmware updates when network-based methods fail or are unavailable.
• Connect legacy PTZ cameras that rely on serial control protocols for operation.
• Debug system issues efficiently with real-time serial console access to logs.
• Ensure secure local access without relying on vulnerable network connections.
• Pair with converters for modern use like USB-to-RS232 for compatibility.

What Is the Function of RS232 Port on NVR Explained

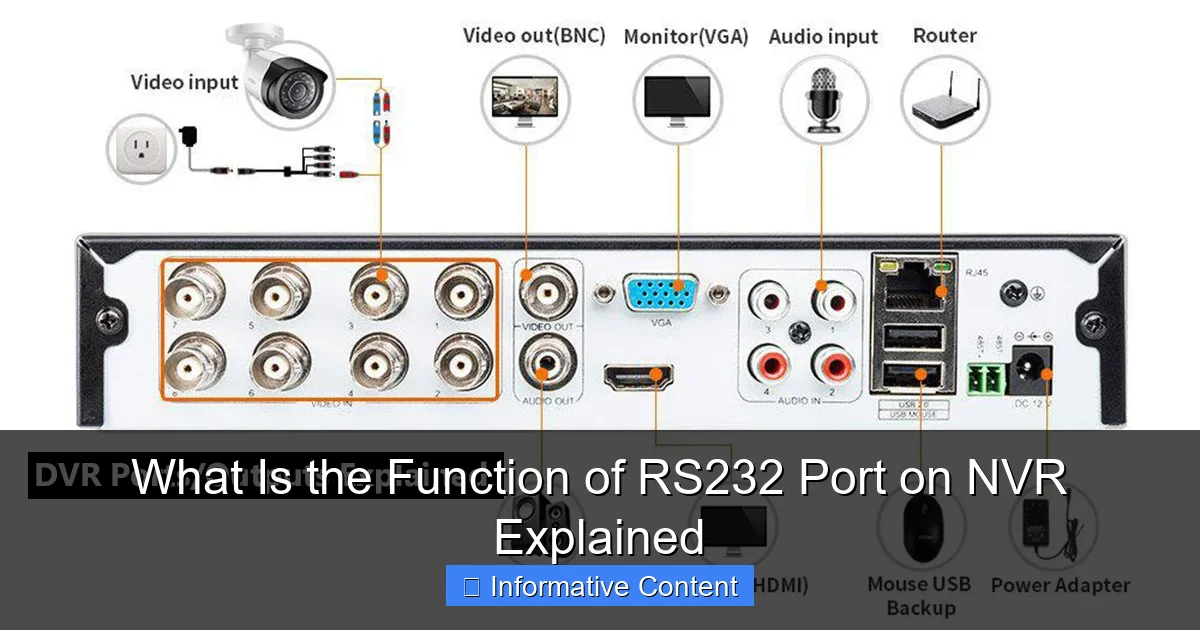

Imagine this: you’ve just installed a new Network Video Recorder (NVR) in your security setup, and while connecting everything, you notice a small, 9-pin port labeled “RS232.” You pause. “What’s that for?” you wonder. It looks like something from the 90s, almost forgotten in the age of Wi-Fi, Bluetooth, and HDMI. But don’t let its retro appearance fool you—this little port is a hidden gem in the world of surveillance systems.

If you’ve ever worked with older security cameras, access control panels, or industrial control systems, you might already have a hunch. The RS232 port on an NVR isn’t just a relic; it’s a functional, reliable, and often essential communication interface. Whether you’re setting up a small business surveillance system or managing a large enterprise-grade security network, understanding what the RS232 port on NVR does can save you time, prevent integration headaches, and unlock advanced control features you didn’t even know existed. In this guide, we’ll dive deep into its purpose, how it works, and why it still matters in 2024 and beyond.

Understanding the Basics: What Is RS232 and Why Is It on an NVR?

A Blast from the Past: The Origins of RS232

RS232 stands for “Recommended Standard 232,” a serial communication protocol introduced in 1960 by the Electronics Industries Association (EIA). Back then, it was the go-to way to connect computers to modems, printers, and other peripherals. While it’s been largely replaced by USB and Ethernet in consumer electronics, RS232 remains a staple in industrial, medical, and security environments due to its simplicity, reliability, and long-distance capabilities.

The RS232 port on NVR is a direct descendant of that legacy. It uses a serial connection—meaning data is transmitted one bit at a time over a single wire—making it slower than modern interfaces, but incredibly stable and resistant to interference. Unlike USB, which requires complex drivers and protocols, RS232 works with simple voltage levels to send and receive data, making it ideal for low-bandwidth, high-reliability tasks.

Why NVRs Still Include RS232 Ports

You might ask, “If it’s so old, why do modern NVRs still have it?” The answer is simple: compatibility and control. Many security and building management systems were designed decades ago and still rely on RS232 for communication. For example, older PTZ (pan-tilt-zoom) cameras, access control panels, alarm systems, and even some legacy DVRs use RS232 to send commands or receive status updates.

Including an RS232 port on an NVR ensures backward compatibility and allows seamless integration with these older systems. It’s also a fallback option—if your network goes down or Wi-Fi fails, you can still control critical devices via this physical connection. Think of it like a spare key to your house: you hope you never need it, but you’re glad it’s there when you do.

Real-World Example: A Small Business Integration

Let’s say you run a convenience store and upgraded to a modern NVR with IP cameras. But your existing door access system still uses an RS232 interface. Instead of replacing the entire access system (which could cost thousands), you can connect it directly to the NVR’s RS232 port. Now, when someone swipes a keycard, the access system sends a signal to the NVR, which can trigger a camera to record or send an alert. No new software, no cloud subscriptions—just simple, direct communication.

Primary Functions of the RS232 Port on NVR

1. PTZ Camera Control

One of the most common uses of the RS232 port on NVR is controlling PTZ cameras. These cameras can pan (rotate horizontally), tilt (move vertically), and zoom in and out. While many modern PTZ cameras support IP-based control (like ONVIF), older models often rely on RS232 for command transmission.

For example, if you have a PTZ camera mounted in a warehouse, you can use the NVR to send RS232 commands to make it scan specific aisles, zoom in on a suspicious activity, or follow a moving object. The NVR acts as a central hub, receiving user input (via a joystick or software) and translating it into RS232 signals sent to the camera.

Pro Tip: Always check your PTZ camera’s protocol (e.g., Pelco-D, Pelco-P, or Bosch). The NVR must be configured to match this protocol, or the commands won’t work. Most NVRs allow you to select the protocol in the camera settings menu.

2. Integration with Access Control Systems

Access control systems—like door locks, turnstiles, and keycard readers—often use RS232 to communicate with other devices. When someone swipes a card, the system sends a “door opened” signal via RS232 to the NVR. The NVR can then:

• Trigger a specific camera to record at high resolution
• Send an alert to a security guard’s mobile device
• Log the event with a timestamp and user ID

This integration creates a powerful audit trail. For instance, if an employee is accused of stealing, you can review the access logs and cross-reference them with video footage—all because the RS232 port enabled the two systems to talk.

3. Alarm System Communication

Many alarm panels (burglar, fire, or environmental sensors) use RS232 to send status updates. When a motion sensor detects movement or a smoke alarm goes off, it can send a signal to the NVR via RS232. The NVR can then:

• Switch to a specific camera view
• Start recording in high frame rate
• Send a push notification or email alert

This is especially useful in remote locations where internet connectivity is spotty. RS232 doesn’t rely on Wi-Fi or Ethernet, so it keeps working even if the network fails.

4. Serial Console Access for NVR Management

Less common but still valuable: some advanced users and IT professionals use the RS232 port to access the NVR’s command-line interface (CLI). This is similar to using a serial console on a router or server. If the NVR’s network interface crashes or misconfigures, you can connect a laptop via RS232 and troubleshoot without needing a monitor or keyboard.

Note: This feature is typically used by system integrators or IT teams. It requires a special cable (usually a null modem cable) and terminal software like PuTTY or Tera Term. While not for everyday users, it’s a lifesaver during emergencies.

How to Use the RS232 Port: Step-by-Step Guide

Step 1: Gather the Right Tools

Before you start, make sure you have:

• An RS232 cable (DB9 male-to-female or male-to-male, depending on your devices)
• A null modem adapter (if needed—check device manuals)
• A laptop or computer with an RS232 port (or a USB-to-RS232 adapter)
• Terminal software (e.g., Tera Term, PuTTY, or RealTerm)

Tip: If your laptop doesn’t have an RS232 port, a USB-to-RS232 adapter works fine. Just ensure it has proper drivers installed, especially on Windows 10/11.

Step 2: Connect the Devices

Shut down both the NVR and the external device (e.g., PTZ camera or access panel). Connect the RS232 cable from the NVR’s port to the device. Pay attention to pin configurations—some devices require specific wiring (e.g., straight-through vs. crossover). If you’re unsure, consult the manuals for both devices.

For example, a common PTZ camera might use:

• Pin 2 (Receive) on NVR → Pin 3 (Transmit) on camera
• Pin 3 (Transmit) on NVR → Pin 2 (Receive) on camera
• Pin 5 (Ground) → Pin 5 (Ground)

This is a “crossed” or null modem connection. Some devices use a straight-through cable, so always double-check.

Step 3: Configure the NVR

Power on the NVR and log into its web interface or local GUI. Navigate to the serial port settings (usually under “System” or “Device Settings”). Here, you’ll need to set:

• Baud rate (e.g., 9600, 19200, 38400)—must match the external device
• Data bits (usually 8)
• Parity (usually None)
• Stop bits (usually 1)
• Protocol (e.g., Pelco-D for PTZ cameras)

Pro Tip: If communication fails, start with 9600 baud, 8N1 (8 data bits, no parity, 1 stop bit)—this is the most common default setting.

Step 4: Test the Connection

Once configured, test the connection. If you’re using a PTZ camera, try panning left or right from the NVR’s interface. If it’s an access system, swipe a card and see if the NVR logs the event. For alarm systems, simulate a trigger and check if the NVR responds.

If nothing happens, double-check:

• Cable connections
• Baud rate and protocol settings
• Device power and status
• Terminal software (if using CLI)

Advantages and Limitations of Using RS232 on NVR

The Pros: Why RS232 Still Makes Sense

• Reliability: RS232 is less prone to interference and works over long distances (up to 50 feet or more without signal boosters).
• No Network Dependency: Works even when Wi-Fi or Ethernet fails—ideal for critical systems.
• Low Power, Low Latency: Minimal processing overhead makes it fast for simple commands.
• Legacy Support: Keeps older systems running without costly upgrades.
• Security: Physical connection is harder to hack than wireless or network-based protocols.

The Cons: Where RS232 Falls Short

• Limited Bandwidth: Can’t handle video or large data transfers. Only for commands and status messages.
• Point-to-Point Only: One port connects to one device. No daisy-chaining (unless using special converters).
• Manual Configuration: Requires precise settings. One wrong baud rate and nothing works.
• Physical Wear: DB9 connectors can loosen or break over time.
• Not Plug-and-Play: Unlike USB, you can’t just plug in and go. Setup takes time.

Real Talk: RS232 is like a landline phone—it’s not flashy, but it works when everything else fails. It’s not meant to replace modern interfaces, but to complement them.

Common RS232 Applications in Security Systems (With Data Table)

To give you a clearer picture of how the RS232 port on NVR is used in real-world scenarios, here’s a breakdown of common applications, their benefits, and typical devices involved:

Application	Devices Involved	Data Type	Typical Baud Rate	Key Benefit
PTZ Camera Control	NVR + PTZ Camera	Pan, tilt, zoom commands	9600, 19200, 38400	Remote surveillance control without network
Access Control Integration	NVR + Door Reader	Card swipe, door status	9600	Video-audio event correlation
Alarm Panel Communication	NVR + Burglar/Fire Alarm	Sensor triggers, alarm status	9600, 4800	Immediate camera response to threats
Serial Console Access	NVR + Laptop	CLI commands, logs	115200	Emergency troubleshooting
Intercom System Link	NVR + Audio Intercom	Call status, audio trigger	9600	Visual verification of audio events

Note: Baud rates vary by manufacturer. Always consult device manuals. Higher baud rates (like 115200) are used for CLI access because they allow faster data transfer for logs and diagnostics.

Example in Practice: A hospital uses RS232 to link its NVR with an emergency call system. When a patient presses the call button, the system sends an RS232 signal to the NVR, which activates the nearest camera to record the room. Nurses get both an alert and live video—critical in emergencies.

Future-Proofing: Is RS232 Still Relevant?

The Shift to IP and Cloud

It’s true—modern security systems are moving toward IP-based communication, cloud storage, and wireless integration. ONVIF, RTSP, and PoE (Power over Ethernet) have made it easier to connect cameras and NVRs without extra cables or ports. So, is RS232 becoming obsolete?

Not quite. While new installations often rely on network protocols, RS232 remains a bridge between old and new. Many organizations can’t afford to replace entire systems overnight. The RS232 port allows them to keep legacy devices operational while gradually upgrading to modern infrastructure.

Hybrid Systems: The Best of Both Worlds

Smart integrators are building hybrid systems that use both RS232 and IP. For example:

• IP cameras for high-resolution video
• RS232-connected access control for secure, offline authentication
• RS232 alarm panels for fail-safe intrusion detection

This approach combines the speed and clarity of IP with the reliability of RS232. It’s not about choosing one over the other—it’s about using each where it performs best.

Will RS232 Disappear?

Eventually, yes—but not anytime soon. Industrial, medical, and security sectors move slowly. Standards stick around for decades. You’ll still see RS232 ports on NVRs for at least the next 5–10 years, especially in markets like:

• Government and military installations
• Large campuses and universities
• Manufacturing and warehouse facilities
• Hospitals and healthcare centers

So while the RS232 port on NVR might not be the star of the show, it’s a reliable supporting character—one you’ll be glad to have when the network goes down or a legacy device needs to talk.

In conclusion, the RS232 port isn’t just a forgotten relic. It’s a practical, powerful tool that enables seamless integration, enhances security, and ensures continuity in surveillance systems. Whether you’re controlling a PTZ camera, linking an access panel, or troubleshooting an NVR, understanding how to use this port gives you an edge. So next time you see that 9-pin connector, don’t dismiss it. Plug in, power up, and unlock a whole new level of control.

Frequently Asked Questions

What is the function of the RS232 port on an NVR?

The RS232 port on an NVR (Network Video Recorder) enables serial communication for configuration, firmware updates, and integration with external devices like PTZ cameras or alarm systems. It provides a direct connection for advanced control and troubleshooting.

Can the RS232 port on an NVR be used for remote access?

No, the RS232 port is not designed for remote access but for local serial communication. It’s typically used for initial setup, diagnostics, or connecting to legacy hardware via short-distance wired links.

How does the RS232 port on an NVR improve system integration?

The RS232 port allows the NVR to interface with third-party devices like access control systems or industrial sensors using standard serial protocols. This simplifies automation and centralized management in surveillance setups.

Is the RS232 port on an NVR necessary for PTZ camera control?

Yes, the RS232 port can directly control PTZ (Pan-Tilt-Zoom) cameras using protocols like Pelco-D, eliminating the need for additional controllers. This ensures smooth, low-latency camera movements for precise monitoring.

What cables are needed to use the RS232 port on an NVR?

A standard DB9 serial cable (RS232) is required to connect the NVR to compatible devices. Ensure pinout compatibility (e.g., straight-through vs. crossover) based on your hardware specifications.

Does the RS232 port on an NVR support modern high-speed data transfer?

No, RS232 is a legacy interface with limited speed (typically up to 115.2 kbps). It’s best suited for configuration tasks, not large data transfers, which are better handled via Ethernet or USB ports.
