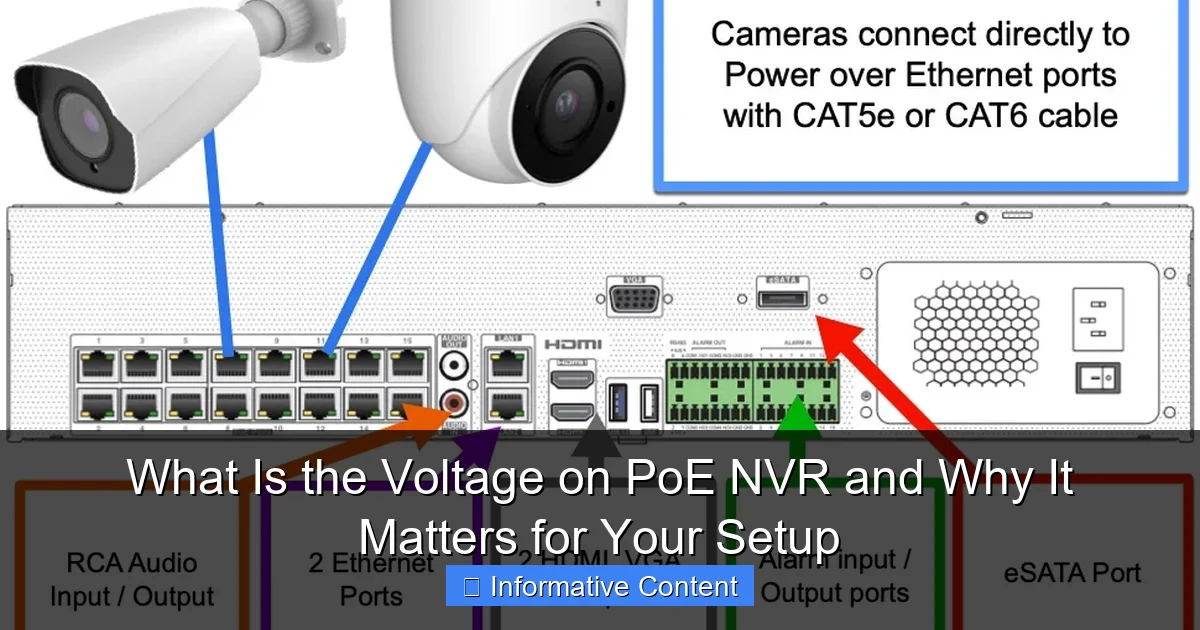

What Is the Voltage on PoE NVR and Why It Matters for Your Setup

Power over Ethernet (PoE) NVRs typically operate at 48V DC, delivering both data and power to connected IP cameras through a single cable. This standardized voltage ensures stable, efficient performance across devices while minimizing the risk of overload or power loss in your surveillance setup.

Key Takeaways

• Standard PoE voltage is 48V: Ensures compatibility with most IP cameras and NVRs.
• Check NVR specifications: Confirm supported voltage to avoid equipment damage or downtime.
• PoE switches auto-negotiate voltage: Safely deliver required power to connected devices.
• Voltage drops over distance: Use quality cabling to maintain stable power delivery.
• Non-standard voltage risks: Mismatched voltage can cause failures or safety hazards.
• Use PoE testers: Verify voltage levels before deploying large-scale systems.

Understanding PoE NVR Voltage: The Heart of Your Surveillance System

Let’s talk about something that’s not always glamorous but absolutely essential—power. If you’ve ever set up a security camera system, you’ve probably heard the term PoE NVR thrown around. It sounds techy, maybe even a bit intimidating. But here’s the thing: once you understand what’s going on behind the scenes, especially the voltage on PoE NVR, setting up your system becomes a whole lot easier—and safer.

I remember the first time I tried to install a security camera system at my parents’ home. I was excited, thinking I’d just plug in a few cameras and call it a day. But then I hit a wall—literally and figuratively. One camera kept flickering, another wouldn’t turn on at all. After hours of troubleshooting, I realized the issue wasn’t with the cameras or the network—it was the power. More specifically, it was the voltage on the PoE NVR. That moment taught me that understanding PoE voltage isn’t just for tech geeks—it’s for anyone who wants a reliable, hassle-free surveillance setup.

What Exactly Is PoE NVR and How Does It Work?

Defining PoE NVR in Simple Terms

PoE stands for Power over Ethernet. That means a single Ethernet cable delivers both data and power to your security cameras. The NVR—Network Video Recorder—is the brain of the system. It records video from your IP cameras, stores it, and lets you view or manage footage remotely. When we say “PoE NVR,” we’re talking about an NVR with built-in PoE ports. These ports can power cameras directly through the same cable used for video transmission.

Think of it like a smart power strip with brains. Instead of running separate power cables to each camera, you run one Ethernet cable. The NVR sends both internet and electricity down that line. No extra outlets, no messy wires—just clean, efficient setup. But here’s the catch: that electricity has to be just right. Too little, and your camera won’t work. Too much, and you risk frying delicate electronics.

The Role of Voltage in Power Delivery

Voltage is the “push” that drives electrical current through a wire. In PoE systems, voltage determines how much power gets to your camera. Most PoE NVRs operate within a standard range—usually between 44V and 57V DC. This is known as PoE (802.3af) or PoE+ (802.3at), depending on the power class.

Here’s a real-world example: I once helped a small business owner set up four cameras in a warehouse. He bought a cheap PoE NVR from an online marketplace. The cameras powered on—but only for a few hours. Then one by one, they died. We tested the voltage and found it was fluctuating between 38V and 60V. That’s outside the safe range. The cheap NVR couldn’t regulate voltage properly, and the cameras were getting fried. Replacing it with a reputable model fixed the issue immediately.

Why Voltage Matters More Than You Think

Voltage isn’t just a number on a spec sheet. It affects:

• Camera performance: Low voltage causes dim LEDs, laggy video, or no startup.
• Cable length limitations: The longer the cable, the more voltage drop occurs. A 100-meter run with low voltage can starve a camera.
• System reliability: Unstable voltage leads to intermittent outages and data loss.
• Device lifespan: Overvoltage can shorten the life of cameras, switches, and even the NVR itself.

So yes—voltage on your PoE NVR is kind of a big deal. It’s the invisible force that keeps your entire surveillance system running smoothly.

Standard PoE Voltage Ranges: What You Need to Know

IEEE 802.3af (PoE) – The Baseline

The original PoE standard, IEEE 802.3af, delivers up to 15.4 watts of power per port. The voltage range is 44V to 57V DC, with a minimum of 37V at the device end after accounting for cable loss. This standard is ideal for basic IP cameras, door access systems, or small wireless access points.

For example, a typical 2MP indoor dome camera might consume around 5–7 watts. A PoE NVR with 802.3af ports can easily handle 4–6 of these without breaking a sweat. But if you’re installing high-resolution PTZ (pan-tilt-zoom) cameras or ones with infrared LEDs, you might hit the limit.

IEEE 802.3at (PoE+) – For Power-Hungry Devices

PoE+ doubles the power output—up to 30 watts per port. The voltage range remains the same (44V–57V), but the current delivery is higher. This standard supports more demanding cameras, such as:

• 4K resolution models
• Outdoor cameras with heaters and fans
• Motorized PTZ units
• Cameras with integrated spotlights or sirens

I once helped a friend set up a 4K PTZ camera on his backyard fence. It required 25 watts to operate the motor, zoom lens, and IR lights. His old PoE NVR (802.3af) couldn’t deliver enough power. The camera would start up but then freeze or reboot. Upgrading to a PoE+ NVR solved the problem. The voltage stayed stable, and the camera worked perfectly—even in freezing winter nights.

PoE++ (802.3bt) – The Future (and When You Might Need It)

There’s also PoE++, or 802.3bt, which comes in two flavors: Type 3 (up to 51W) and Type 4 (up to 71W). These use 50V to 57V and are designed for advanced devices like:

• Multi-sensor cameras
• Thermal imaging systems
• Smart lighting with sensors
• High-end access control panels

Most home and small business setups won’t need PoE++. But if you’re building a high-end security network—say, for a school, warehouse, or smart building—it’s worth considering. Just remember: your PoE NVR must explicitly support PoE++. Not all do. And using a PoE++ camera with a standard PoE NVR could result in underpowered or damaged equipment.

Passive PoE: A Word of Caution

Some budget NVRs and injectors use passive PoE. This is non-standard and often runs at fixed voltages like 12V, 24V, or 48V. It bypasses the IEEE handshake protocol, meaning there’s no negotiation between device and power source. That’s risky.

Why? Because if you connect a 48V passive PoE NVR to a standard 48V PoE camera, it might work—until it doesn’t. Voltage spikes, lack of over-current protection, and no power management can lead to permanent damage. I’ve seen passive PoE systems fry cameras in under a week. Stick with IEEE-compliant PoE whenever possible. Your gear—and your sanity—will thank you.

How Voltage Affects Camera Performance and Cable Length

Voltage Drop: The Silent Killer of PoE Systems

Here’s a common mistake: assuming that because your NVR says “PoE,” it can power cameras over any length of cable. Not true. Every foot of Ethernet cable adds resistance. This causes voltage drop—a reduction in voltage from the source to the device.

For example, a 100-meter (328 ft) Cat5e cable can lose up to 10–15% of the voltage depending on wire gauge and ambient temperature. If your NVR outputs 48V, the camera might only receive 40V at the far end. That’s below the 37V minimum for 802.3af. Result? The camera won’t power on or will behave erratically.

I learned this the hard way during a rural installation. We ran a 120-meter cable to a barn camera. The NVR showed “camera online,” but the video was glitchy and the IR lights wouldn’t activate. We tested the voltage at the camera end—only 36V. We shortened the cable to 80 meters and added a PoE extender. Voltage jumped to 44V, and the camera worked flawlessly.

Choosing the Right Cable for Optimal Voltage

Not all Ethernet cables are equal. To minimize voltage drop, follow these tips:

• Use Cat6 or Cat6a: Thicker conductors reduce resistance. Cat5e works for short runs, but Cat6 is better for long distances.
• Check wire gauge: 23 AWG (American Wire Gauge) is ideal for PoE. Avoid 24 AWG or thinner for runs over 50 meters.
• Keep cable runs under 100 meters: This is the maximum recommended length for reliable PoE delivery.
• Avoid daisy-chaining switches: Each additional switch adds resistance and risk of voltage drop.

Pro tip: If you must go beyond 100 meters, use a midspan PoE extender or PoE switch with local power at the remote site. This boosts voltage and ensures consistent delivery.

Temperature and Environmental Factors

Heat matters. Copper resistance increases with temperature. In a hot attic or sun-baked shed, voltage drop can be worse than in a climate-controlled room. Similarly, cold temperatures can make cables less flexible and slightly increase resistance.

For outdoor installations, choose outdoor-rated (UV-resistant, waterproof) Ethernet cable. And consider using a PoE midspan injector near the camera if the NVR is far away. It’s like giving your camera a “power boost” right where it needs it.

How to Measure and Troubleshoot PoE Voltage

Tools You Need for Voltage Testing

You don’t need a $500 multimeter. A basic digital multimeter (under $20) is enough. Look for one with DC voltage range (up to 60V or 100V). You’ll also need:

• RJ45 breakout adapter (optional but helpful)
• Ethernet cable tester with PoE detection (e.g., Klein Tools VDV500-825)
• Access to the camera end of the cable

Here’s how to test voltage safely:

1. Power on the NVR and camera.
2. Disconnect the Ethernet cable from the camera (but leave it connected to the NVR).
3. Set your multimeter to DC voltage (200V range).
4. Touch the red probe to pin 4 (or 5) and black probe to pin 7 (or 8) on the RJ45 connector. These are the PoE power pins.
5. Read the voltage. It should be between 44V and 57V.

Note: Some NVRs use Alternative A (pins 1,2 and 3,6) or Alternative B (pins 4,5 and 7,8). Check your NVR manual to confirm.

Common Voltage Issues and How to Fix Them

If your voltage reading is off, here’s what to check:

• Below 40V at NVR port: Faulty NVR power supply or internal PoE circuit. Replace or repair the NVR.
• 44V–57V at NVR but low at camera: Long cable run or thin gauge wire. Use shorter cable or higher-quality Cat6.
• Voltage fluctuates: Loose connections, damaged cable, or poor-quality NVR. Inspect all connections and replace suspect cables.
• No voltage: NVR not enabled for PoE, or port is damaged. Check settings and test another port.

I once had a client with three cameras that wouldn’t power on. The NVR showed “connected,” but no video. We tested the voltage—zero. It turned out the NVR’s PoE feature was disabled in the settings. A quick toggle, and everything worked. Always check the software side before assuming hardware failure.

Using a PoE Tester for Quick Diagnostics

For non-technical users, a PoE tester is a lifesaver. Plug it between the NVR and camera, and it displays voltage, wattage, and PoE standard (802.3af, at, etc.). Some even show cable length and resistance.

These testers are especially useful for:

• Verifying new installations
• Diagnosing intermittent camera issues
• Ensuring compliance with IEEE standards

They cost $30–$80 and can save hours of troubleshooting.

Choosing the Right PoE NVR: Voltage and Compatibility Tips

Matching NVR Voltage to Your Cameras

Not all cameras are the same. Check your camera’s power requirements before buying an NVR. Look for:

• Input voltage range (e.g., 48V DC, 37–57V)
• Maximum power draw (in watts)
• PoE standard support (802.3af, at, bt)

For example, if your camera needs 12 watts and runs on 802.3af, a standard PoE NVR will work. But if it’s a 28-watt PTZ, you need PoE+.

Here’s a quick compatibility checklist:

Camera Type	Power Needed	Required PoE NVR	Notes
Basic 1080p indoor camera	5–8W	802.3af (PoE)	Safe for most standard NVRs
4K outdoor with heater	15–25W	802.3at (PoE+)	Ensure NVR supports PoE+
PTZ with motor and IR	25–30W	802.3at or higher	Check total NVR power budget
Multi-sensor or thermal	40W+	802.3bt (PoE++)	Rare for homes; used in commercial setups

Total Power Budget: Don’t Overload Your NVR

Every PoE NVR has a total power budget—the maximum watts it can deliver across all ports. For example, an 8-port PoE NVR might have a 120W total budget. That means if each camera uses 15W, you can safely run up to 8 cameras. But if you add a 30W PTZ, you’d only have room for 6 standard cameras.

Always calculate your total power needs before buying. Leave 10–20% headroom for future expansion or peak power usage (like heaters turning on at night).

Brands and Models with Reliable Voltage Output

Not all PoE NVRs are created equal. Some brands are known for stable voltage and robust power management:

• Hikvision: Excellent PoE+ support, clear voltage indicators in software.
• Dahua: Strong power budgets, good for mixed camera setups.
• Reolink: Reliable for home use, but check PoE+ availability.
• Axis: High-end, PoE++ capable, ideal for commercial use.

Avoid no-name brands with vague power specs. They often cut corners on voltage regulation and protection circuits.

Final Thoughts: Voltage Is the Unsung Hero of PoE NVRs

When you’re setting up a security system, it’s easy to focus on resolution, storage, and night vision. But behind every crisp video feed and smooth pan-tilt movement is a steady, reliable voltage. The voltage on your PoE NVR isn’t just a technical detail—it’s the lifeline that keeps your cameras alive and your footage safe.

From preventing flickering LEDs to enabling long cable runs and protecting your investment, proper voltage management makes all the difference. Whether you’re installing a simple 4-camera setup at home or managing a 32-camera system for a business, understanding and verifying PoE voltage will save you time, money, and frustration.

So next time you plug in a camera, take a moment to check the voltage. Use the right cable, match the standards, and don’t skimp on quality. Your future self—and your security footage—will thank you. After all, a well-powered camera is a reliable camera. And in security, reliability is everything.

Frequently Asked Questions

What is the voltage on PoE NVR, and how does it affect my system?

The voltage on a PoE NVR (Power over Ethernet Network Video Recorder) typically ranges between 44V and 57V, aligning with the IEEE 802.3af/at/bt standards. This voltage ensures stable power delivery to connected IP cameras while preventing damage to sensitive components.

Can I use a standard PoE switch with my NVR, or does voltage matter?

Yes, most PoE NVRs are compatible with standard PoE switches (802.3af/at), as they regulate voltage automatically. However, always check your NVR’s specifications to ensure it supports the switch’s output voltage (e.g., 48V vs. 52V).

Why is the voltage on PoE NVR important for long cable runs?

Lower voltage (e.g., 44V) may cause power loss over extended Ethernet cables, leading to unstable camera performance. Higher voltage (57V) compensates for this drop, making it ideal for setups with long cable distances.

Does a higher PoE voltage mean faster data transfer?

No, voltage on a PoE NVR only impacts power delivery, not data speed. Data transfer rates depend on network bandwidth (e.g., Gigabit Ethernet), not the power voltage supplied to devices.

Are all PoE NVRs compatible with 24V passive PoE systems?

Not always—most PoE NVRs require 48V/52V (standard PoE), while 24V is used in older or proprietary passive PoE setups. Using mismatched voltage can damage equipment, so verify compatibility before connecting.

What happens if the PoE NVR voltage is too low or too high?

Excessively low voltage may cause devices to malfunction or reboot, while excessively high voltage can damage connected hardware. Always stick to the manufacturer’s recommended voltage range for safe operation.
