Where Are the Base Screws on Foscam Camera

Locating the base screws on a Foscam camera is essential for secure mounting and optimal performance. This guide walks you through identifying screw positions across popular models, offers step-by-step installation tips, and helps troubleshoot common issues—so you can set up your camera confidently and correctly.

Key Takeaways

• Base screws are typically found on the bottom or back of Foscam cameras: Most models feature mounting holes on the underside or rear panel for wall or ceiling installation.
• Screw size and type vary by model: Common sizes include M3 and M4, so always check your user manual or camera base before purchasing screws.
• Use the included mounting template: Foscam often provides a paper template in the box to help mark drill points accurately.
• Ensure proper alignment before drilling: Misaligned screws can damage the camera or cause instability—take your time during setup.
• Consider weatherproofing for outdoor use: If mounting outside, use silicone sealant around screw holes to prevent moisture damage.
• Check for hidden screws under rubber feet: Some Foscam models conceal mounting holes beneath removable rubber pads on the base.
• Always power off the camera before mounting: Safety first—disconnect power and network cables to avoid electrical hazards.

Where Are the Base Screws on Foscam Camera? A Complete Guide

So, you’ve just unboxed your new Foscam camera—maybe it’s the Foscam R4, R5, FI9900P, or another popular model—and you’re ready to mount it on the wall or ceiling. But then you pause. Where exactly are the base screws? You flip it over, look around the edges, and maybe even check under the rubber feet. Still unsure? You’re not alone.

Mounting a security camera might seem straightforward, but Foscam’s design varies slightly across models, and the location of the base screws isn’t always obvious. Some cameras have visible screw holes right on the bottom, while others hide them beneath protective covers or require you to remove a base plate. Getting this right is crucial—not just for a clean installation, but for ensuring your camera stays secure, level, and functional over time.

In this guide, we’ll walk you through everything you need to know about finding and using the base screws on your Foscam camera. Whether you’re setting up indoor surveillance or installing an outdoor unit, we’ll cover the exact locations, tools you’ll need, step-by-step instructions, and pro tips to avoid common mistakes. By the end, you’ll feel confident mounting your Foscam camera like a pro—no guesswork required.

Understanding Foscam Camera Mounting Basics

Before we dive into the specifics of where the base screws are located, it’s important to understand how Foscam designs its cameras for mounting. Unlike some security cameras that use magnetic bases or adhesive mounts, Foscam primarily relies on traditional screw-based mounting systems. This gives you greater flexibility in positioning and ensures a sturdy, long-lasting installation.

Most Foscam cameras are designed to be mounted either on a wall or ceiling, and they come with a mounting bracket or base plate that attaches directly to the surface. The camera then screws into this base, allowing you to adjust the angle after installation. This two-part system—base plate and camera—makes it easier to remove the camera for maintenance or repositioning without having to drill new holes every time.

The base screws themselves are typically small, Phillips-head or flat-head screws that secure the camera to the mounting plate. They’re usually made of stainless steel or zinc-plated metal to resist corrosion, especially important for outdoor models. The number of screws can vary—some cameras use two, others four—but they’re almost always positioned symmetrically to distribute weight evenly.

One thing to note: Foscam doesn’t always use standard screw sizes across all models. While many use M3 or M4 machine screws, others may require slightly different dimensions. That’s why it’s always a good idea to check the user manual or measure the existing screws before heading to the hardware store. Using the wrong size can strip the threads or fail to hold the camera securely.

Why Proper Mounting Matters

You might be thinking, “Can’t I just prop it up on a shelf or use double-sided tape?” Technically, yes—but that’s not the best idea. Proper mounting ensures your camera stays in place, maintains the correct viewing angle, and isn’t easily tampered with or knocked over. It also protects the internal components from dust, moisture, and physical stress.

For outdoor installations, secure mounting is even more critical. Wind, rain, and temperature changes can loosen improperly fastened cameras over time. A well-mounted Foscam camera will stay aligned and functional for years, giving you reliable surveillance without constant adjustments.

Locating Base Screws on Popular Foscam Models

Now let’s get into the nitty-gritty: where exactly are the base screws on different Foscam cameras? While the general principle is similar across models, the exact location can vary. Below, we’ll break down the most common Foscam models and where you’ll find their mounting screws.

Foscam R4 and R5 Series

The Foscam R4 and R5 are among the brand’s most popular indoor and outdoor cameras. These models feature a sleek, dome-style design with a removable base plate. To find the base screws:

– Flip the camera upside down.
– Look for two or four small screw holes near the center of the base.
– In some versions, these holes are covered by rubber feet. Gently peel back the rubber pads to reveal the screws underneath.

The R4 and R5 typically use M3 screws, about 8–10mm in length. The mounting plate attaches to the wall or ceiling, and the camera screws into it from below. This allows you to swivel and tilt the camera after installation for the perfect angle.

Foscam FI9900P and FI9901EP

These outdoor bullet-style cameras are built for durability and weather resistance. The base screws on the FI9900P and FI9901EP are located on the rear of the camera, near the cable exit point.

– Look at the back of the camera where the power and network cables come out.
– You’ll see a rectangular mounting bracket with two or four screw holes.
– These are usually M4 screws, slightly larger than those on dome models.

The bracket is fixed to the camera body, so you’ll drill directly into the wall and attach the entire unit. Make sure to route your cables through the wall or use a conduit to protect them from the elements.

Foscam C1 and C2 Indoor Cameras

The Foscam C1 and C2 are compact indoor cameras designed for easy placement. Unlike outdoor models, these often come with a magnetic base or adhesive mount option—but they also support screw mounting.

– Check the bottom of the camera for a small circular base.
– Remove the base by twisting it counterclockwise (it’s usually threaded).
– Inside, you’ll find two screw holes for wall mounting.

These models typically use M3 screws, and the base can be replaced with a wall mount kit if needed. The advantage here is flexibility—you can switch between tabletop and wall mounting without buying additional hardware.

Foscam R2 and R2M

The R2 series is a newer addition to Foscam’s lineup, featuring 4K resolution and advanced AI detection. The base screws on the R2 and R2M are located on the underside, similar to the R4 and R5.

– Flip the camera over.
– Look for four screw holes arranged in a square pattern.
– These are usually covered by rubber feet—peel them back carefully to avoid tearing.

The R2 uses M3 screws, and the mounting plate allows for 360-degree rotation and tilt adjustment. This makes it ideal for corner mounting or covering large areas.

Foscam Dome Cameras (e.g., FI9803P, FI9816P)

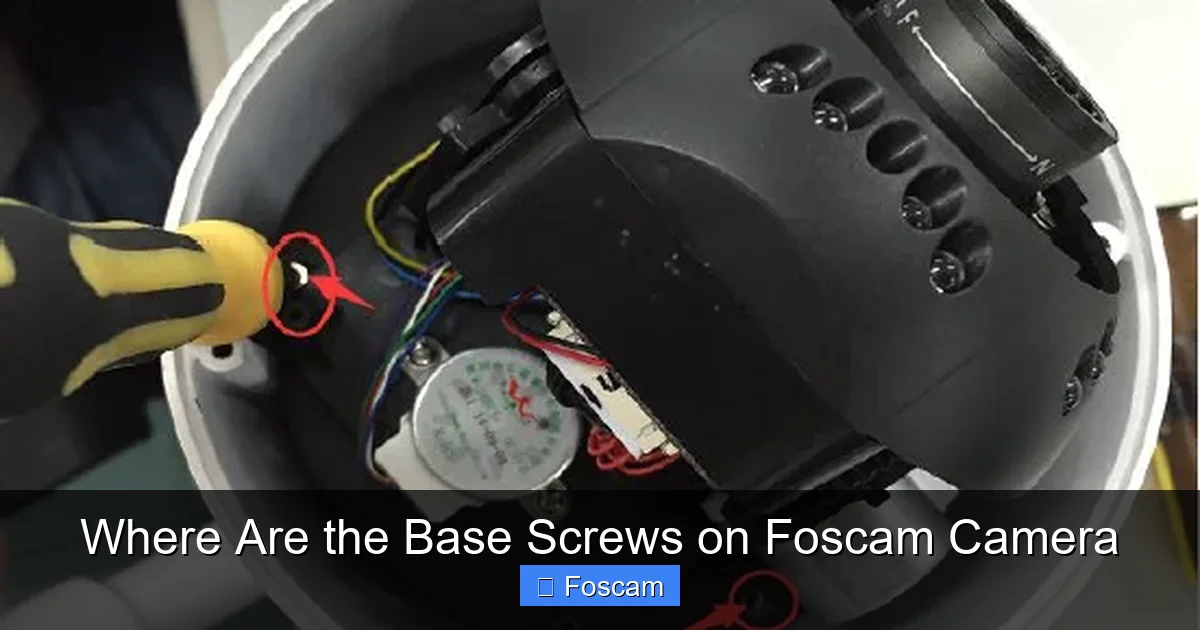

Older dome-style models like the FI9803P and FI9816P have a slightly different design. The base screws are located on a circular plate at the bottom of the camera.

– Remove the dome cover by unscrewing the small screws on the side.
– Once the cover is off, you’ll see the base plate with mounting holes.
– These models often use M4 screws and require a bit more disassembly.

Be careful when removing the dome—some internal components are sensitive to static electricity. Always handle the camera by the edges and avoid touching the lens or circuit board.

Step-by-Step Guide to Mounting Your Foscam Camera

Now that you know where the base screws are, let’s walk through the actual mounting process. Whether you’re installing indoors or outdoors, these steps will help you get it right the first time.

Step 1: Gather Your Tools

Before you start, make sure you have the following:
– Drill and appropriate drill bits (usually 3–4mm for wall anchors)
– Screwdriver (Phillips or flat-head, depending on your screws)
– Wall anchors (if mounting into drywall or masonry)
– Level (to ensure the camera is straight)
– Pencil (for marking drill points)
– Measuring tape
– Optional: Silicone sealant (for outdoor use)

Step 2: Choose the Right Location

Pick a spot that gives you the best view of the area you want to monitor. For outdoor cameras, avoid direct sunlight or areas prone to flooding. For indoor cameras, consider height—mounting too low makes the camera vulnerable to tampering.

Use the camera’s field of view (usually listed in the manual) to determine the ideal placement. A height of 7–9 feet is generally recommended for both indoor and outdoor installations.

Step 3: Use the Mounting Template

Most Foscam cameras come with a paper mounting template in the box. This is a lifesaver—it shows you exactly where to drill based on the screw hole positions.

– Tape the template to the wall or ceiling.
– Use a level to ensure it’s straight.
– Mark the drill points with a pencil.

If you don’t have the template, you can create one by tracing the base plate onto cardboard or paper.

Step 4: Drill and Install Anchors

Drill pilot holes at the marked points. If you’re mounting into drywall, insert plastic wall anchors. For masonry or concrete, use appropriate anchors and a hammer drill.

Make sure the holes are deep enough to hold the anchors securely—shallow holes can cause the screws to loosen over time.

Step 5: Attach the Mounting Plate

Screw the mounting plate to the wall using the appropriate screws. Don’t overtighten—this can strip the threads or crack the plate.

Double-check that the plate is level before moving on.

Step 6: Connect Cables and Mount the Camera

Route your power and network cables through the wall or along the surface. For outdoor installations, use weatherproof conduit or cable clips to protect the wires.

Attach the camera to the mounting plate using the base screws. Tighten them just enough to hold the camera securely—again, avoid overtightening.

Step 7: Adjust and Test

Once mounted, adjust the camera angle to cover your desired area. Power it on and check the live feed on your phone or computer.

Make sure there’s no glare, blind spots, or obstructions. If needed, slightly loosen the screws to reposition the camera, then retighten.

Common Mistakes to Avoid

Even with the best intentions, it’s easy to make mistakes during installation. Here are some common pitfalls and how to avoid them.

Using the Wrong Screw Size

As mentioned earlier, Foscam uses different screw sizes across models. Using a screw that’s too large can damage the threads; one that’s too small won’t hold the camera securely.

Always measure the existing screws or check the manual before buying replacements. If you’ve lost the original screws, contact Foscam support—they often provide replacements free of charge.

Mounting on Unstable Surfaces

Avoid mounting your camera on drywall without anchors, loose wood, or plaster. These surfaces can’t support the weight and may collapse over time.

For best results, mount into studs, concrete, or use heavy-duty anchors rated for the camera’s weight.

Ignoring Weatherproofing

Outdoor cameras are designed to withstand the elements, but improper installation can compromise their durability. Always use silicone sealant around screw holes and cable entry points to prevent water infiltration.

Also, ensure the camera is mounted under an eave or awning if possible, to reduce exposure to rain and direct sunlight.

Over-Tightening Screws

It’s tempting to crank the screws as tight as possible, but this can crack the plastic base or strip the threads. Use a screwdriver—not a power drill—and tighten just until the camera is secure.

If the camera wobbles, check that the mounting plate is flat and the surface is even.

Skipping the Level

A crooked camera might seem like a small issue, but it can significantly affect your field of view. Always use a level when marking drill points and attaching the mounting plate.

Even a slight tilt can cause the camera to point too high or too low, missing important activity.

Tips for Outdoor and Indoor Installations

The mounting process is similar for indoor and outdoor cameras, but there are some key differences to keep in mind.

Outdoor Installations

– Use weatherproof cables and connectors.
– Seal all screw holes and cable entries with silicone.
– Mount the camera under cover to protect from rain and snow.
– Consider using a PoE (Power over Ethernet) adapter to reduce cable clutter.
– Check local regulations—some areas require permits for outdoor surveillance.

Indoor Installations

– Choose a location with good Wi-Fi coverage.
– Avoid mounting near heat sources like radiators or vents.
– Use cable clips to keep wires neat and out of sight.
– Consider privacy—don’t point the camera at bedrooms or private areas without consent.

Ceiling vs. Wall Mounting

Ceiling mounting gives a wider field of view and is harder to tamper with, but it requires more precise alignment. Wall mounting is easier and allows for angled views, but may limit coverage.

For corner mounting, use a corner bracket (often sold separately) to maximize coverage.

Troubleshooting Base Screw Issues

Even with careful installation, you might run into problems. Here’s how to fix the most common base screw issues.

Stripped Screw Holes

If the screw holes are stripped, the camera won’t stay secure. Try using a slightly larger screw or inserting a toothpick or wooden matchstick into the hole before reinserting the screw. This creates a tighter fit.

For plastic bases, you can also use epoxy to fill the hole, then drill a new pilot hole once it’s dry.

Missing or Damaged Screws

If you’ve lost the original screws, check the manual for the exact size and type. You can usually find replacements at hardware stores or order them from Foscam.

Avoid using generic screws that don’t match—this can void your warranty or damage the camera.

Camera Won’t Stay Level

If the camera keeps tilting after mounting, the base plate may not be flush with the surface. Use shims (small pieces of plastic or rubber) behind the plate to level it.

Alternatively, adjust the tension on the mounting screws—some models allow you to tighten or loosen the joint for better stability.

Rubber Feet Won’t Stay On

If the rubber feet keep coming off after removing them to access the screws, clean the base with rubbing alcohol to remove grease. You can also use a small drop of super glue to reattach them—just don’t get glue in the screw holes.

Conclusion

Finding the base screws on your Foscam camera doesn’t have to be a guessing game. With the right knowledge and tools, you can mount your camera securely and confidently, whether it’s a dome-style R4, a bullet camera like the FI9900P, or a compact C1 model.

Remember: the base screws are usually located on the bottom or back of the camera, often under rubber feet or a removable base plate. Always use the included mounting template, choose the right screw size, and take your time during installation. For outdoor setups, don’t forget to weatherproof your connections.

By following this guide, you’ll not only install your Foscam camera correctly the first time, but you’ll also ensure it performs reliably for years to come. Whether you’re protecting your home, monitoring a business, or keeping an eye on your property, a well-mounted camera is the foundation of effective surveillance.

So grab your drill, check those screw holes, and get your Foscam camera up and running—your peace of mind is worth the effort.

Frequently Asked Questions

Where are the base screws located on a Foscam R4 camera?

The base screws on the Foscam R4 are located on the underside of the camera, often beneath removable rubber feet. Peel back the rubber pads to reveal the screw holes, which are typically M3 in size.

Can I mount my Foscam camera without the base screws?

While some models support adhesive or magnetic mounts, using the base screws is recommended for a secure and stable installation, especially for outdoor use.

What size screws do Foscam cameras use?

Most Foscam cameras use M3 or M4 machine screws, but the exact size varies by model. Always check your user manual or measure the existing screws before replacing them.

Are the base screws included with the camera?

Yes, Foscam typically includes the necessary screws and mounting hardware in the box. If you’ve lost them, contact Foscam support for replacements.

Can I mount my Foscam camera on the ceiling?

Absolutely. Most Foscam cameras are designed for both wall and ceiling mounting. Just ensure the base screws are securely fastened and the camera is level.

Do I need to drill holes to mount a Foscam camera?

Yes, unless you’re using an adhesive or magnetic mount. For permanent and secure installation, drilling into the wall or ceiling and using the base screws is the best method.
