Which Fuse Do I Tap into for the Backup Camera

Installing a backup camera? Picking the right fuse is crucial for safety and performance. This guide walks you through how to identify the correct fuse, avoid common mistakes, and wire your camera properly using reliable tools and techniques.

So, you’ve just bought a backup camera—maybe it came with your new car, or you’re upgrading an older ride for better safety and visibility. Either way, you’re probably asking: *Which fuse do I tap into for the backup camera?* It’s a smart question, because wiring your camera the wrong way can lead to blown fuses, electrical damage, or even a drained battery.

The good news? With the right approach, installing a backup camera is one of the easiest and most rewarding DIY car upgrades you can do. You don’t need to be an auto electrician—just a little patience, the right tools, and a solid understanding of your vehicle’s fuse box. In this guide, we’ll walk you through everything you need to know about choosing the correct fuse, using safe wiring techniques, and ensuring your backup camera works flawlessly every time you shift into reverse.

Whether you’re installing a wired or wireless system, the power source matters. Most backup cameras need 12 volts to operate, and they should only turn on when the vehicle is in reverse. That means you can’t just plug it into any old cigarette lighter or always-on accessory port. You need a circuit that activates only when you shift into reverse—like the reverse lights. That’s where the fuse box comes in. By tapping into the right fuse, you ensure your camera powers up automatically and safely, without interfering with other systems.

Key Takeaways

• Use a fuse tap for safe, reversible connections: A fuse tap lets you connect your backup camera without cutting factory wires, preserving your vehicle’s warranty and electrical integrity.
• Choose a fuse that’s only active in reverse: Look for circuits powered only when the vehicle is in reverse gear, such as reverse lights or backup sensors, to ensure the camera turns on automatically.
• Avoid high-draw or always-on fuses: Never tap into fuses for critical systems like ignition, fuel pump, or headlights—these can cause malfunctions or drain your battery.
• Check your owner’s manual and fuse box diagram: Every vehicle is different; use the manual or a fuse box cover diagram to locate the correct fuse and understand its function.
• Test with a multimeter before connecting: Confirm voltage and circuit behavior with a multimeter to avoid damaging your camera or vehicle electronics.
• Use proper tools and insulation: Invest in quality fuse taps, wire strippers, and heat shrink tubing to ensure a secure, weatherproof connection.
• Consider a relay for high-power cameras: If your camera draws significant power, use a relay to protect the fuse box and ensure consistent performance.

Why Fuse Selection Matters for Your Backup Camera

Choosing the right fuse isn’t just about convenience—it’s about safety, reliability, and protecting your vehicle’s electrical system. A backup camera might seem like a small device, but even low-power electronics can cause big problems if wired incorrectly. For example, tapping into a fuse that’s always live (like the one for your dashboard lights) could leave your camera on all the time, draining your battery overnight. On the flip side, connecting to a high-draw circuit like the ignition or fuel pump could overload the fuse, blow it, or even damage sensitive electronics.

The goal is to find a fuse that’s only active when the vehicle is in reverse. This ensures your camera turns on automatically when you need it and turns off when you don’t. It also prevents unnecessary power draw and keeps your installation clean and efficient. Most modern vehicles have a dedicated circuit for reverse lights, which is the ideal candidate. These lights are only powered when the transmission is in reverse, making them a perfect match for your backup camera.

Another reason fuse selection matters is warranty and resale value. Cutting into factory wires or splicing directly into circuits can void your warranty or make future repairs more complicated. Using a fuse tap—a small adapter that plugs into an existing fuse slot—lets you add power without modifying the original wiring. It’s a reversible, professional-looking solution that any mechanic will appreciate.

Finally, proper fuse selection ensures your camera gets clean, stable power. Voltage spikes or inconsistent current can damage sensitive camera components over time. By tapping into a well-regulated circuit like the reverse lights, you protect your investment and enjoy reliable performance for years.

How to Locate the Correct Fuse in Your Vehicle

Now that you know why fuse selection is important, let’s talk about how to find the right one. Every vehicle is different, so there’s no universal “backup camera fuse” that works for all cars. But the process is straightforward if you follow a few simple steps.

Step 1: Consult Your Owner’s Manual

Your vehicle’s owner’s manual is your best friend when it comes to electrical systems. It contains a detailed fuse box diagram that shows which fuse controls which function. Look for sections labeled “Fuse Box Layout,” “Electrical System,” or “Wiring Diagrams.” Most manuals will list fuses by number and describe their purpose—like “Reverse Lights,” “Backup Sensors,” or “Transmission Control.”

If you don’t have the physical manual, don’t worry. You can usually download a PDF version from the manufacturer’s website. Just search for your make, model, and year, and look for the owner’s manual or service manual. Some websites even have interactive fuse box diagrams that let you click on a fuse to see what it powers.

Step 2: Check the Fuse Box Cover

Many vehicles have a diagram printed directly on the inside of the fuse box cover. This is a quick and easy reference, especially if you’re working under the hood or in the cabin. The diagram will show the location of each fuse and its amperage rating. Look for labels like “REV LAMP,” “BACKUP,” or “TRANS.” These are strong indicators that the fuse powers the reverse lights or related systems.

If the diagram is faded or missing, take a photo of it with your phone before removing the cover. That way, you can refer back to it later if needed.

Step 3: Use a Multimeter to Test Fuses

Even with a diagram, it’s smart to double-check with a multimeter. This handheld tool measures voltage, current, and resistance, and it’s essential for safe electrical work. Set your multimeter to DC voltage (usually marked as “V~” or “20V”), and turn the ignition to the “on” position (but don’t start the engine).

Insert the multimeter probes into the fuse socket—one on each side of the fuse. With the vehicle in park, you should see little to no voltage. Now, shift into reverse. If the fuse is correct, the multimeter should show around 12 volts. This confirms that the circuit is only active when the vehicle is in reverse.

If you don’t have a multimeter, you can use a test light or even a spare fuse with a built-in LED indicator. But a multimeter is more accurate and gives you peace of mind.

Step 4: Identify Common Fuse Locations

While every vehicle is different, there are a few common fuse locations where you’re likely to find the reverse light circuit:

– **Under the dashboard (interior fuse box):** Many cars have a fuse panel near the driver’s side kick panel or under the steering column. This is often where accessory fuses are located.
– **Under the hood (engine bay fuse box):** Some vehicles route the reverse light circuit through the main fuse box near the battery. Check the diagram to confirm.
– **Near the transmission or gear selector:** In rare cases, the reverse light switch may have its own dedicated fuse or relay near the transmission.

If you’re having trouble finding the right fuse, search online for your specific make and model. Forums like Reddit, CarTalk, or manufacturer-specific communities often have threads where users share their fuse box layouts and installation tips.

Safe Wiring Methods: Using a Fuse Tap

Once you’ve identified the correct fuse, it’s time to make the connection. The safest and most professional way to do this is with a fuse tap. Also known as a fuse tap adapter or add-a-circuit, this small device lets you “piggyback” onto an existing fuse without cutting wires or splicing.

What Is a Fuse Tap?

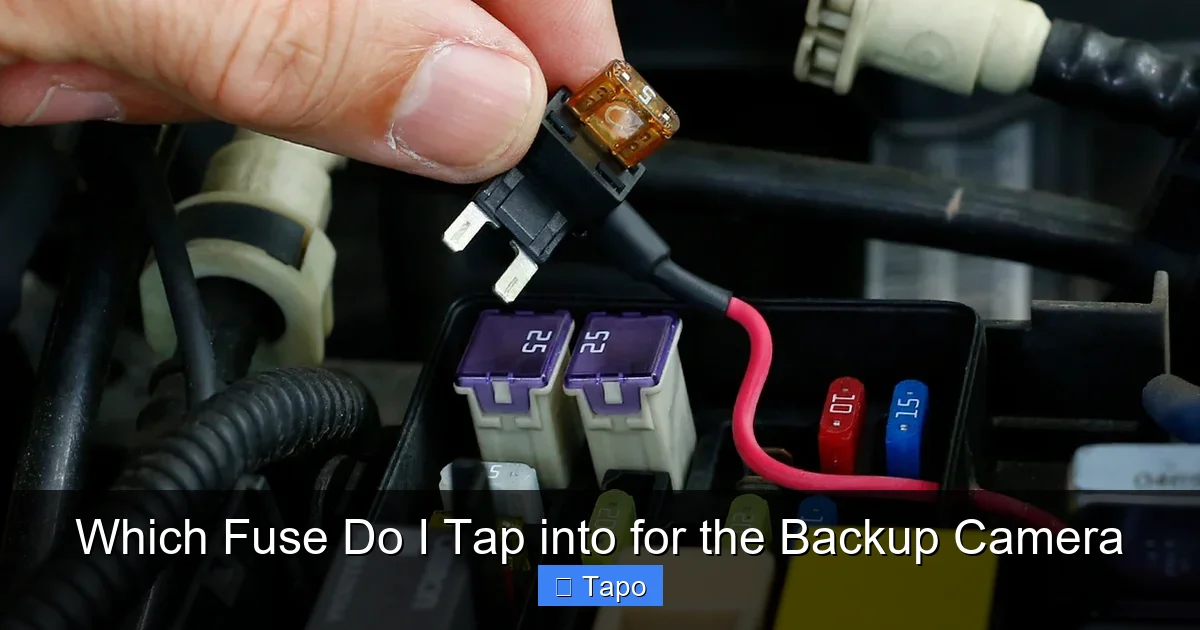

A fuse tap is a plastic adapter that plugs into an existing fuse slot in your fuse box. It has two fuse slots: one for the original fuse and one for your new device (in this case, the backup camera). It also has a wire lead that you connect to your camera’s power input. This setup allows your camera to draw power from the same circuit as the reverse lights, but without interfering with the original wiring.

Fuse taps come in different types, including mini, low-profile, and standard sizes. Make sure you get one that matches your vehicle’s fuse type. Most modern cars use mini or low-profile fuses, but older models may use standard blade fuses.

How to Install a Fuse Tap

Here’s a step-by-step guide to installing a fuse tap for your backup camera:

1. **Turn off the ignition and disconnect the battery (optional but recommended):** This reduces the risk of short circuits or electrical shock.
2. **Locate the correct fuse:** Use your manual or multimeter to confirm it’s the reverse light fuse.
3. **Remove the original fuse:** Use a fuse puller (often included in the fuse box) or needle-nose pliers to gently pull it out.
4. **Insert the fuse into the fuse tap:** Place the original fuse into the slot labeled “original” or “input” on the fuse tap.
5. **Plug the fuse tap into the fuse box:** Insert the entire assembly into the empty fuse slot.
6. **Connect the wire lead to your camera:** Strip the end of the camera’s power wire and connect it to the fuse tap’s lead using a wire connector or soldering iron. Use heat shrink tubing to insulate the connection.
7. **Test the system:** Turn on the ignition, shift into reverse, and check if the camera powers on.

Tips for a Clean Installation

– **Use zip ties or wire loom:** Secure loose wires to prevent them from rubbing against sharp edges or hot components.
– **Route wires away from moving parts:** Avoid areas near the steering column, pedals, or suspension.
– **Label your connections:** If you’re installing multiple accessories, label wires to avoid confusion later.
– **Check for interference:** Make sure the camera’s video signal isn’t affected by nearby electronics like the radio or GPS.

Avoiding Common Mistakes When Tapping a Fuse

Even with the best intentions, it’s easy to make mistakes when wiring a backup camera. Here are some common pitfalls and how to avoid them.

Don’t Tap Into Always-On Fuses

Fuses that are always live—like those for the cigarette lighter, interior lights, or radio—may seem convenient, but they’re a bad choice for a backup camera. These circuits stay powered even when the car is off, which means your camera could drain the battery if left on accidentally. Always choose a fuse that’s only active in reverse.

Avoid High-Draw Circuits

Never tap into fuses for high-power systems like the ignition, fuel pump, or headlights. These circuits are designed for heavy loads and may not have enough spare capacity for your camera. Overloading them can cause fuses to blow or wires to overheat.

Don’t Skip the Fuse Tap

Some DIYers try to splice directly into wires or use quick-tap connectors. While these methods can work, they’re riskier and harder to reverse. A fuse tap is the safest, cleanest option and takes just a few minutes to install.

Don’t Ignore Grounding

Your camera needs a solid ground connection to work properly. Most cameras come with a ground wire that should be connected to a bare metal surface on the vehicle’s chassis. Use a self-tapping screw or existing bolt, and scrape away any paint or rust to ensure a good connection.

Test Before Finalizing

Always test your camera before tucking wires away or reinstalling panels. Make sure it turns on in reverse and off in park or drive. If it doesn’t work, double-check your fuse, connections, and ground.

Alternative Power Sources and When to Use Them

While tapping into the reverse light fuse is the most common method, it’s not the only option. Depending on your vehicle and camera setup, you might consider alternative power sources.

Using a Relay

If your backup camera draws more than 5–10 amps (check the specs), it’s safer to use a relay. A relay acts like a switch that’s controlled by a low-current signal (from the reverse light circuit) but can handle high-current loads. This protects your fuse box and ensures consistent power delivery.

To install a relay, connect the control side to the reverse light circuit and the power side to a direct 12V source (like the battery). The camera then draws power through the relay, not the fuse box.

Hardwiring to the Reverse Light Wire

Instead of using the fuse box, you can tap directly into the reverse light wire at the taillight assembly. This method requires locating the correct wire (usually white with a yellow stripe or labeled “reverse”) and splicing into it. Use a wire tap connector or solder the connection for best results.

This approach is common in older vehicles or when the fuse box is hard to access. Just be sure to use proper insulation and avoid cutting the factory wire.

Using a Wireless Backup Camera

Some wireless backup cameras come with a transmitter that plugs into the reverse light socket. The camera then receives power and sends a video signal wirelessly to a monitor. This eliminates the need for running video cables but still requires tapping into the reverse circuit for power.

Wireless systems are great for quick installations, but they can suffer from interference or signal loss in areas with lots of radio noise.

Tools and Materials You’ll Need

Before you start, make sure you have the right tools and materials. Here’s a checklist:

– Fuse tap (matching your fuse type)
– Multimeter or test light
– Wire strippers and crimpers
– Heat shrink tubing or electrical tape
– Zip ties or wire loom
– Screwdrivers and pliers
– Backup camera kit (with wiring harness)
– Owner’s manual or fuse diagram

Investing in quality tools makes the job easier and safer. A good multimeter, for example, can save you hours of troubleshooting.

Final Tips for a Successful Installation

– **Take your time:** Rushing can lead to mistakes. Work in a well-lit area and double-check each step.
– **Follow the camera’s instructions:** Every model is slightly different. Read the manual before you start.
– **Ask for help if needed:** If you’re unsure about any step, consult a professional or ask in an online forum.
– **Keep it clean:** A neat installation looks better and lasts longer. Use cable management to keep wires tidy.

With the right fuse, proper tools, and careful wiring, your backup camera will work like a charm—giving you peace of mind and safer reversing every time.

Frequently Asked Questions

Can I use any fuse for my backup camera?

No, you should only use a fuse that’s active when the vehicle is in reverse, such as the reverse light circuit. Using always-on or high-draw fuses can drain your battery or damage electronics.

Do I need a multimeter to install a backup camera?

While not strictly required, a multimeter helps confirm voltage and circuit behavior, making installation safer and more reliable. It’s highly recommended for first-time installers.

What if my vehicle doesn’t have a reverse light fuse?

All vehicles have a reverse light circuit, but it may be controlled by a relay or shared with another system. Check your manual or use a multimeter to trace the circuit.

Can I install a backup camera without tapping a fuse?

Yes, you can hardwire to the reverse light wire at the taillight or use a wireless transmitter. However, tapping a fuse is often the cleanest and safest method.

Will tapping a fuse void my warranty?

Using a fuse tap typically won’t void your warranty, as it doesn’t modify factory wiring. However, cutting or splicing wires could. Always check your warranty terms.

How do I know if my fuse tap is working?

Test the camera after installation. If it turns on in reverse and off in park, the fuse tap is working correctly. Use a multimeter to verify voltage if needed.
