Installing a new back up camera? Knowing which wires to tap is crucial for power, ground, and reverse signal. This guide walks you through identifying the right wires, avoiding common mistakes, and ensuring a clean, professional install—no guesswork needed.
So, you’ve decided to upgrade your ride with a new back up camera. Smart move. Whether you’re tired of guessing how close you are to that curb or just want that extra layer of safety, a back up camera is one of the most practical car upgrades you can make. But here’s the thing—getting it installed properly isn’t just about mounting the camera and hoping for the best. The real magic happens behind the scenes, in the wiring. And if you’re doing it yourself (which you totally can), knowing which wires to tap when installing a new back up camera is the key to success.
Let’s be honest—car electronics can feel intimidating. Wires everywhere, colors that don’t always match the manual, and the fear of frying your car’s computer. But don’t sweat it. With the right approach, a little patience, and this guide, you’ll have your camera up and running like a pro. We’re going to break it down step by step, so you know exactly which wires to tap, why they matter, and how to do it safely. No electrical degree required.
By the end of this article, you’ll understand the three essential wires you need to connect: power, ground, and the reverse signal. You’ll also learn how to find them, test them, and make secure connections that won’t fail after a few bumps down the road. Whether you’re installing a wired or wireless system, the principles are the same. So grab your tools, roll up your sleeves, and let’s get started.
Key Takeaways
- Identify the reverse light wire: This is the most important wire to tap, as it triggers the camera when you shift into reverse.
- Use a multimeter or test light: Never guess—always test wires to confirm voltage and function before making connections.
- Tap into constant 12V and ground: These provide steady power and a safe return path, essential for camera operation.
- Avoid splicing into factory harnesses unnecessarily: Use T-taps or solder connections to preserve wire integrity.
- Follow color codes but verify: Wire colors vary by vehicle make and model—always double-check with a wiring diagram.
- Seal all connections: Use heat shrink tubing or electrical tape to prevent corrosion and shorts.
- Test before finalizing: Power up the system and test the camera in reverse to ensure everything works before reassembling panels.
📑 Table of Contents
Understanding the Basics: Why Wiring Matters
Before we dive into which wires to tap, let’s talk about why this step is so important. A back up camera isn’t just a gadget—it’s a safety device. It helps you see what’s behind you, especially in blind spots, and can prevent accidents, scratches, or worse. But if the wiring is sloppy or incorrect, the camera might not turn on when you need it, or worse, it could cause electrical issues in your vehicle.
Think of your car’s electrical system like a network of highways. Each wire carries a specific type of signal or power to different parts of the vehicle. When you install a back up camera, you’re essentially adding a new “exit” to that highway. You need to connect it to the right lanes—power, ground, and trigger—so it knows when to turn on and off.
The good news? Most modern vehicles have standardized wiring for reverse lights, which makes finding the right wire easier. The bad news? Not all cars are the same. Wire colors can vary, and some models have complex fuse boxes or integrated systems. That’s why testing is crucial. You can’t just assume the red wire is power or the green one is ground. You’ve got to verify.
Another thing to keep in mind: your camera needs three things to work:
– Power: Usually 12 volts from the battery.
– Ground: A solid connection back to the chassis.
– Trigger signal: A signal that tells the camera to turn on when you shift into reverse.
These three connections are non-negotiable. Miss one, and your camera won’t work. Get them wrong, and you could damage your camera or your car’s electronics. So let’s break down each one and show you exactly how to find and tap into them.
Step 1: Locating the Reverse Light Wire

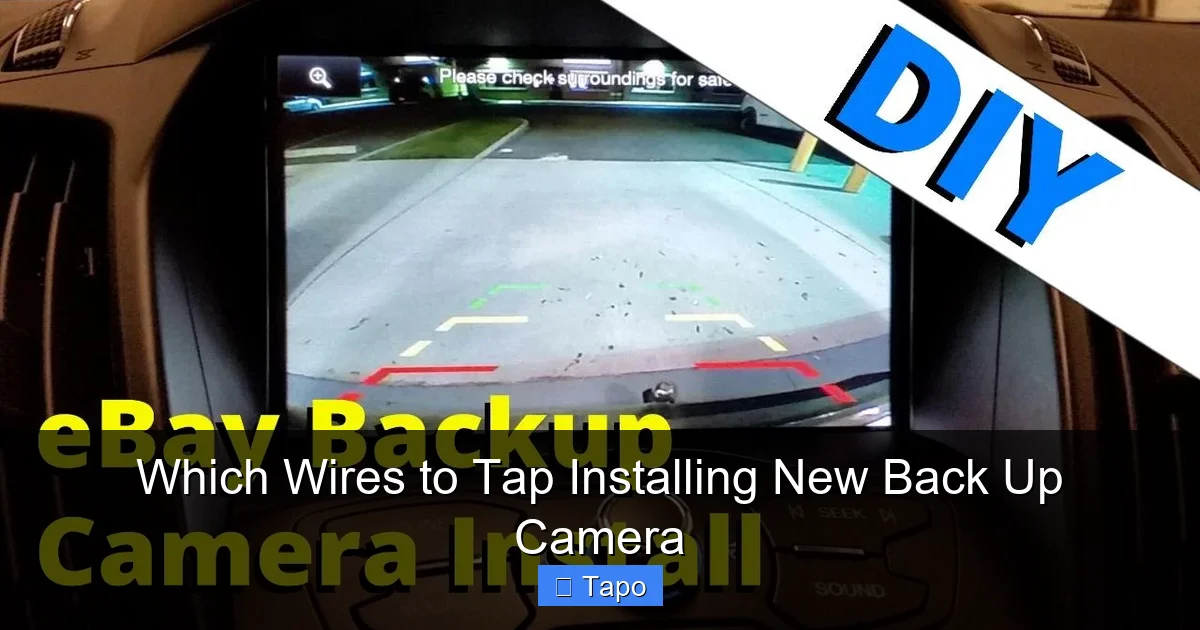

Visual guide about Which Wires to Tap Installing New Back Up Camera
Image source: i.ytimg.com
This is the most critical wire when installing a new back up camera. Why? Because it’s the one that tells your camera, “Hey, the car is in reverse—time to turn on!” Without this signal, your camera might stay off, or worse, stay on all the time, draining your battery.
The reverse light wire is typically found in the taillight assembly or near the transmission. In most vehicles, it’s part of the wiring harness that connects to the backup lights—the white lights that come on when you shift into reverse. These lights are required by law, so every car has them. That means the wire is always there; you just need to find it.
How to Find the Reverse Light Wire
Start by accessing the taillight assembly. You’ll usually need to remove a few screws or clips from the interior trunk panel or the exterior light housing. Once you have access, look for the wiring harness connected to the backup lights. There are typically two or three wires in this harness:
– One for the reverse light (the one you want).
– One for the brake light.
– One for the tail light or ground.
The reverse light wire is usually the one that only has power when the car is in reverse. To confirm, you can use a test light or multimeter.
Testing the Wire
Here’s a simple method:
1. Turn the ignition to the “on” position (but don’t start the engine).
2. Shift into reverse.
3. Use a test light or multimeter to probe each wire in the taillight harness.
4. The wire that shows 12 volts only when in reverse is your target.
Pro tip: If you don’t have a multimeter, you can use a simple 12V test light. Clip the ground to the car’s chassis and touch the probe to each wire. When you shift into reverse, the light should glow on the correct wire.
Once you’ve identified the reverse light wire, mark it with a piece of tape or a marker. This is the wire you’ll tap into for the camera’s trigger signal.
Common Mistakes to Avoid
– Tapping into the brake light wire: This will make your camera turn on every time you hit the brakes—annoying and unsafe.
– Assuming wire color: While many cars use a green or white wire for reverse, this isn’t universal. Always test.
– Cutting the wire: Never cut the factory wire. Use a T-tap or solder connection to preserve the original circuit.
Step 2: Tapping into Power and Ground
Now that you’ve found the reverse signal wire, you need two more: constant 12V power and ground. These provide the energy your camera needs to operate.
Finding Constant 12V Power
Your camera needs a steady 12-volt supply to stay powered. This is different from the reverse signal, which only comes on when needed. The constant power wire should have voltage even when the car is off (though some cameras have a low-power mode to prevent battery drain).
Good sources for constant 12V include:
– The cigarette lighter or 12V accessory socket.
– The fuse box (using a fuse tap).
– The battery (with an inline fuse).
Best practice: Use the fuse box. It’s clean, protected, and easy to access. Look for a fuse that’s always hot (like the radio or interior lights). Use a fuse tap to add a new connection without removing the original fuse.
Finding a Solid Ground
Ground is just as important as power. Without a good ground, your camera won’t work, or it might behave erratically. The ground wire completes the electrical circuit, allowing current to flow back to the battery.
To find a ground:
– Look for a bare metal spot on the car’s chassis or frame.
– Remove any paint or rust to ensure a clean connection.
– Use a ring terminal and bolt to secure the ground wire.
Never use a ground that’s shared with other electronics unless it’s a designated grounding point. A poor ground can cause flickering, static, or complete failure.
Connecting the Wires
Once you’ve identified power and ground, it’s time to make the connections. Here are your options:
– T-tap connectors: Quick and easy, but can loosen over time.
– Soldering: More reliable, but requires skill and tools.
– Wire nuts: Not recommended for automotive use—they can vibrate loose.
Recommended method: Solder the connections and cover with heat shrink tubing. This creates a permanent, weatherproof seal.
Step 3: Routing the Camera Wire
Now that you’ve identified which wires to tap, you need to get the camera’s wire from the back of the car to the front—usually to the head unit or display.
Choosing the Right Path
The goal is to hide the wire and protect it from damage. Common routes include:
– Through the firewall (using an existing grommet).
– Along the door sills or under carpeting.
– Through the center console.
Tip: Use a coat hanger or fish tape to pull the wire through tight spaces. Be gentle—wires can break if bent too sharply.
Avoiding Interference
Keep the camera wire away from:
– Power cables (like those for the alternator or ignition).
– Antenna wires.
– High-voltage components.
Running wires parallel to power lines can cause interference, leading to a noisy or distorted image.
Securing the Wire
Use zip ties or wire loom to secure the cable along its path. This prevents it from rubbing against sharp edges or getting caught in moving parts.
Step 4: Connecting to the Head Unit or Display
Most back up cameras connect to a display—either a standalone screen or a head unit with a video input.
Wired vs. Wireless Systems
– Wired systems: Require a video cable from the camera to the display. More reliable, but harder to install.
– Wireless systems: Use a transmitter at the camera and a receiver at the display. Easier to install, but can suffer from interference or lag.
If you’re using a wired system, connect the video cable to the “reverse camera” or “RCA video in” port on your head unit. Some units require you to enable the camera input in the settings.
Powering the Display
The display usually gets power from the same source as the head unit. If it’s a standalone screen, you may need to tap into the same 12V and ground wires used for the camera.
Step 5: Testing and Troubleshooting
Before you button everything up, test the system.
Power-On Test
1. Turn on the ignition.
2. Shift into reverse.
3. Check if the camera turns on and the image appears on the screen.
If it doesn’t work, check:
– Is the reverse signal wire connected?
– Is there power to the camera?
– Is the ground secure?
Common Issues and Fixes
– No image: Check video cable connections and head unit settings.
– Flickering image: Loose ground or poor power connection.
– Camera stays on: Reverse wire is connected to constant power.
Final Tips for a Clean Install
– Label all wires before disconnecting anything.
– Use zip ties to keep wires neat.
– Test everything before reassembling panels.
– Take photos during disassembly to help with reassembly.
Conclusion
Installing a new back up camera doesn’t have to be scary. By knowing which wires to tap—reverse signal, power, and ground—you can do it safely and correctly. Take your time, test everything, and don’t skip the basics. A little effort now means a reliable, long-lasting camera that keeps you and your passengers safe.
Frequently Asked Questions
Can I install a back up camera without tapping into wires?
Yes, wireless back up cameras use a transmitter to send the video signal, so you don’t need to run a video cable. However, you still need to tap into power, ground, and the reverse signal wire for the camera to function.
What if my car doesn’t have a reverse light wire?
Every car has reverse lights, so there’s always a reverse signal wire. It might be in the transmission harness or near the shifter. Use a multimeter to locate it by testing for voltage when in reverse.
Can I use the same ground wire for multiple devices?
It’s best to use a dedicated ground point for each device. Sharing grounds can cause noise or interference, especially with sensitive electronics like cameras.
Do I need a fuse when tapping into the battery?
Yes, always use an inline fuse when connecting directly to the battery. This protects your camera and wiring from shorts or overloads.
What’s the best tool to test wires?
A digital multimeter is the most accurate tool. A test light is cheaper and works well for basic checks, but a multimeter gives you precise voltage readings.
Can I install a back up camera myself?
Absolutely! With basic tools and this guide, most people can install a back up camera in a few hours. Just take your time and double-check all connections.
