Installing a backup camera? Knowing which wires to tap into is crucial for a safe, reliable setup. This guide breaks down the essential wires—reverse trigger, power, ground, and video—so you can wire your camera correctly without damaging your vehicle’s electrical system.
Key Takeaways
- Reverse light wire is key: This wire sends a signal when you shift into reverse, triggering the camera to turn on automatically.
- Use a multimeter for accuracy: Always test wires with a multimeter to confirm voltage and avoid guessing, which can lead to damage.
- Ground wire must be secure: A poor ground connection causes flickering or no video feed—attach it to bare metal on the chassis.
- Power source matters: Most cameras run on 12V; tap into a fused, switched power source to avoid battery drain.
- Avoid splicing into factory harnesses: Use T-taps or solder connections to prevent cutting factory wires and maintain warranty.
- Check camera compatibility: Ensure your camera matches your vehicle’s voltage and video format (NTSC/PAL).
- Test before finalizing: Always test the system before tucking wires away to catch issues early.
[FEATURED_IMAGE_PLACEHOLDER]
Why a Backup Camera Matters—And Why Wiring It Right Is Essential
Backing up used to be a guessing game. You’d crane your neck, roll down windows, and still worry about blind spots. Today, backup cameras are standard on most new vehicles—and for good reason. They reduce accidents, protect pedestrians, and make parking in tight spots a breeze. But if you’re driving an older model or want to upgrade your current setup, installing an aftermarket backup camera can feel intimidating. The biggest hurdle? Figuring out which wires to tap into for backup camera power and signal.
Don’t worry—you’re not alone. Even seasoned DIYers pause when faced with a tangle of colored wires behind the dashboard or under the bumper. But with the right knowledge, the process becomes straightforward. The key is understanding what each wire does and how to connect it safely. A botched wiring job can lead to blown fuses, dead batteries, or even damage to your vehicle’s electronics. That’s why knowing which wires to tap into for backup camera installation is more than a convenience—it’s a necessity.
This guide will walk you through every step, from identifying the correct wires to testing your setup. Whether you’re installing a wireless system or hardwiring a high-resolution camera, we’ll cover the essentials. You’ll learn how to locate the reverse trigger wire, find a reliable power source, ground your camera properly, and avoid common mistakes. By the end, you’ll have the confidence to install your backup camera like a pro—without calling in an expensive technician.

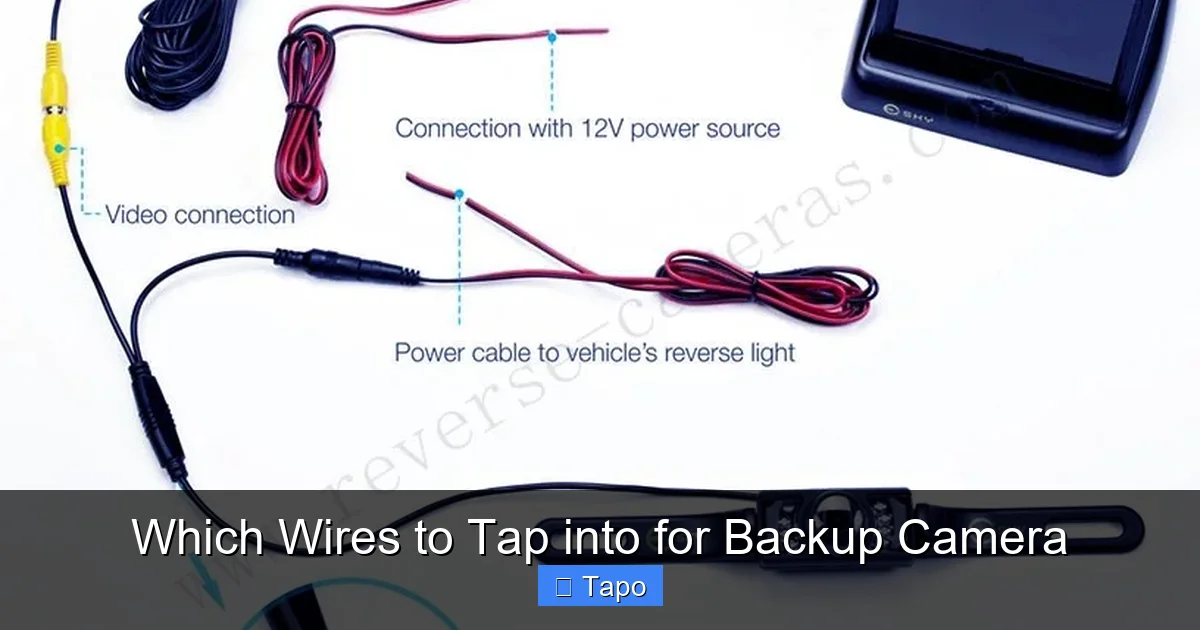

Understanding the Core Wires in a Backup Camera System
Before you start snipping or splicing, it’s important to understand the role of each wire in your backup camera setup. Most aftermarket backup cameras require three to four essential connections: power, ground, reverse trigger, and video signal. Let’s break them down one by one so you know exactly which wires to tap into for backup camera functionality.
Power Wire (12V Constant or Switched)
The power wire supplies electricity to your camera. Most backup cameras operate on 12 volts, which matches your vehicle’s electrical system. However, not all 12V sources are created equal. You’ll want to tap into a switched power source—one that only activates when the ignition is on. This prevents your camera from draining the battery when the car is off.
Common switched power sources include the cigarette lighter fuse, radio fuse, or accessory fuse in the fuse box. Use a fuse tap or add-a-circuit device to safely draw power without cutting factory wires. Always check the amperage rating of your camera (usually 0.5A to 1A) and ensure the fuse you’re tapping can handle the extra load.
Ground Wire (Negative Connection)
The ground wire completes the electrical circuit. Without a solid ground, your camera won’t work—or worse, it may flicker, overheat, or damage other components. The best practice is to connect the ground wire directly to the vehicle’s chassis using a self-tapping screw on a clean, unpainted metal surface. Avoid grounding to plastic, rubber, or painted areas, as these won’t conduct electricity properly.
Pro tip: Scrape off a small patch of paint with sandpaper before attaching the ground wire. This ensures maximum conductivity and a reliable connection.
Reverse Trigger Wire (Signal Wire)
This is the magic wire that tells your camera when to turn on. When you shift into reverse, the reverse lights receive power. The reverse trigger wire detects this signal and activates the camera. Most head units or monitors with backup camera inputs have a dedicated “reverse trigger” wire (often labeled “reverse” or “backup cam”) that needs to be connected to the reverse light circuit.
Locating this wire is critical. It’s usually found in the wiring harness near the rear license plate lights or inside the trunk. Use a multimeter to confirm you’ve found the right wire—it should read 12V only when the vehicle is in reverse.
Video Signal Wire (RCA or Coaxial)
The video wire carries the camera’s image to your display. Most cameras use a yellow RCA connector for video output. This wire runs from the camera to the head unit or monitor. If you’re installing a wired system, you’ll need to route this cable carefully—through the firewall, under trim panels, and into the dashboard. Avoid running it near power wires to prevent interference.
Wireless cameras skip this step by transmitting the signal via radio frequency, but they still need power and ground connections. Even wireless systems require tapping into the reverse trigger wire to activate automatically.
Step-by-Step: How to Identify the Right Wires to Tap Into
Now that you know what each wire does, let’s get practical. Here’s how to find and tap into the correct wires for your backup camera installation. We’ll focus on the most common setup: a wired camera connected to an aftermarket head unit.
Step 1: Locate the Reverse Light Wire
The reverse light wire is your starting point. This wire carries 12V only when the vehicle is in reverse, making it the perfect trigger for your camera.
Start by opening your trunk or tailgate and removing the interior trim panel near the license plate lights. You’ll see a wiring harness connected to the reverse lights. Use a multimeter set to DC voltage. With the ignition on and the vehicle in reverse, probe each wire in the harness. The one that reads 12V is your reverse trigger wire.
Alternatively, use a test light. Touch one end to a known ground and the other to each wire. The light will illuminate when you find the correct wire.
Once identified, note the wire color. Common colors include white, yellow, or green, but this varies by make and model. Always double-check with your vehicle’s wiring diagram if available.
Step 2: Find a Switched Power Source
Next, locate a 12V power source that turns on with the ignition. The fuse box is the best place to start. Look for fuses labeled “ACC,” “Radio,” or “Cigarette Lighter.” These are typically switched and safe to tap.
Use a fuse tap or add-a-circuit adapter to connect your camera’s power wire. This device plugs into the existing fuse slot and provides a new slot for your camera’s fuse. It’s a clean, reversible method that doesn’t require cutting wires.
Avoid tapping into constant power sources (like the battery or interior lights) unless you install a relay or switch. Otherwise, your camera could drain the battery overnight.
Step 3: Establish a Solid Ground
Find a clean, unpainted metal surface on the vehicle’s chassis near the camera or inside the trunk. Use a self-tapping screw to secure the ground wire. Scrape off any paint or rust with sandpaper to ensure a good connection.
If you’re grounding inside the cabin, look for existing grounding points used by other components (like the radio or dashboard). These are often marked with a ground symbol or labeled “GND.”
Step 4: Route the Video Cable
Run the video cable from the camera to the head unit. Start at the rear of the vehicle and work your way forward. Use trim removal tools to gently pry off panels along the roofline, under the doors, and into the dashboard.
Avoid sharp edges and moving parts (like door hinges). Secure the cable with zip ties or adhesive clips to prevent it from getting pinched or damaged.
If your head unit has a dedicated backup camera input, connect the yellow RCA cable directly. If not, you may need a video switcher or adapter.
Step 5: Connect to the Head Unit
Most aftermarket head units have a dedicated backup camera input. Locate the reverse trigger wire on the head unit’s harness (usually green or purple). Connect this to the reverse light wire you identified earlier.
Also, connect the camera’s power and ground wires to the corresponding sources. Double-check all connections before powering on the system.
Common Mistakes to Avoid When Tapping Wires
Even with the best intentions, mistakes happen. Here are the most common errors people make when figuring out which wires to tap into for backup camera installation—and how to avoid them.
Splicing Factory Wires Directly
Cutting into factory wiring can void your warranty and increase the risk of shorts or corrosion. Instead, use T-tap connectors, solder joints, or fuse taps. These methods preserve the integrity of the original harness and allow for easy removal later.
Using the Wrong Power Source
Tapping into a constant 12V source (like the battery) without a relay can drain your battery. Always use a switched source that turns off with the ignition. If you must use constant power, install a relay controlled by the ignition switch.
Poor Ground Connection
A loose or corroded ground is a common cause of camera failure. Never ground to plastic, rubber, or painted metal. Always attach the ground wire to bare chassis metal and secure it tightly.
Ignoring Wire Gauge and Fuse Ratings
Using wires that are too thin can cause voltage drop or overheating. Most backup cameras use 18- to 20-gauge wire, which is sufficient for short runs. Also, ensure your fuse matches the camera’s amperage. A 3A or 5A fuse is usually safe for most cameras.
Not Testing Before Final Assembly
Always test the camera before tucking wires away. Turn on the ignition, shift into reverse, and check if the camera activates and displays a clear image. If not, troubleshoot the connections before reassembling panels.
Forgetting to Secure Wires
Loose wires can rattle, wear out, or get caught in moving parts. Use zip ties, loom, or adhesive clips to secure all cables along their route. This prevents damage and reduces noise.
Wireless vs. Wired Backup Cameras: Which Is Right for You?
When deciding which wires to tap into for backup camera installation, you’ll also need to choose between wired and wireless systems. Each has pros and cons.
Wired Backup Cameras
Wired systems offer the most reliable connection. The video signal is transmitted directly through a cable, so there’s no lag or interference. They’re ideal for vehicles with metal frames that can block wireless signals.
However, wired systems require more work. You’ll need to route a video cable from the camera to the head unit, which can be time-consuming. But once installed, they’re durable and consistent.
Wireless Backup Cameras
Wireless cameras transmit video via radio frequency (usually 2.4GHz or 5.8GHz). This eliminates the need for a video cable, making installation faster and easier.
But wireless systems can suffer from interference, especially in urban areas or near other electronic devices. They also require a power source at the camera, so you’ll still need to tap into power, ground, and reverse trigger wires.
Some wireless cameras use a transmitter mounted near the camera and a receiver connected to the head unit. Others use Bluetooth, but these often have higher latency.
Which Should You Choose?
If you value reliability and don’t mind the extra work, go wired. If you want a quick, clean install and don’t drive in areas with heavy interference, wireless is a great option.
Either way, you’ll still need to tap into the same core wires: power, ground, and reverse trigger. The only difference is the video signal—wired uses a cable, wireless uses radio waves.
Vehicle-Specific Tips: What to Know by Make and Model
Not all vehicles are wired the same way. Here are some tips based on popular makes and models to help you identify which wires to tap into for backup camera installation.
Ford Vehicles
Ford often uses a white wire with a yellow stripe for the reverse light circuit. This wire is typically found in the rear harness near the license plate. The fuse box usually has a dedicated “Backup Lamp” fuse (often 10A or 15A) that you can tap for power.
Chevrolet and GMC Trucks
Chevy and GMC trucks commonly use a gray wire for the reverse signal. It’s located in the rear light harness. For power, look for the “Cigarette Lighter” or “Accessory” fuse in the under-hood fuse box.
Toyota and Honda
Toyota and Honda vehicles often use a green wire with a white stripe for the reverse trigger. It’s usually found near the rear combination lights. These brands also tend to have well-labeled fuse boxes, making it easier to find a switched power source.
Jeep Wranglers
Jeeps have a more complex wiring setup due to their removable tops and doors. The reverse wire is often yellow or white and located in the tail light harness. Grounding can be tricky—look for a dedicated ground point near the rear bumper or frame rail.
European Vehicles (BMW, Mercedes, Audi)
European cars often use CAN bus systems, which can complicate aftermarket installations. In some cases, you may need a CAN bus decoder or interface module to avoid triggering error codes. Always consult a wiring diagram specific to your model year.
Tools and Accessories You’ll Need
Having the right tools makes all the difference. Here’s a checklist of essentials for tapping into backup camera wires:
- Multimeter: For testing voltage and confirming wire functions.
- Wire strippers and crimpers: For preparing and securing connections.
- T-tap connectors or solder kit: For safe, reversible wire tapping.
- Fuse tap or add-a-circuit: For connecting to the fuse box without cutting wires.
- Trim removal tools: For safely removing interior panels.
- Zip ties and wire loom: For securing and protecting cables.
- Electrical tape: For insulating connections.
- Self-tapping screws: For grounding to the chassis.
Investing in quality tools saves time and prevents frustration. A good multimeter, in particular, is worth its weight in gold—it helps you avoid guesswork and ensures you’re tapping the right wires.
Final Thoughts: Confidence in Every Connection
Installing a backup camera doesn’t have to be overwhelming. Once you understand which wires to tap into for backup camera power, ground, and signal, the process becomes manageable—even for beginners. The key is preparation: test every wire, use the right tools, and take your time.
Remember, the reverse trigger wire is your best friend—it tells the camera when to turn on. Pair that with a solid ground and a switched power source, and you’ve got a reliable system. Whether you go wired or wireless, the principles remain the same.
Don’t rush. Don’t guess. And always test before you finalize. A few extra minutes now can save hours of troubleshooting later.
With this guide, you’re equipped to install your backup camera safely and correctly. So grab your tools, follow the steps, and enjoy the peace of mind that comes with a clearer view behind you.
FAQs
What wire triggers the backup camera?
The reverse trigger wire, usually connected to the reverse light circuit, sends a 12V signal when you shift into reverse. This tells the camera and head unit to activate automatically.
Can I power a backup camera from the cigarette lighter?
Yes, but only if it’s a switched outlet (turns off with the ignition). Use a fuse tap to connect safely and avoid battery drain.
Do I need to ground the backup camera?
Absolutely. A solid ground connection is essential for the camera to function. Attach the ground wire to bare metal on the vehicle’s chassis.
How do I test if I’ve found the right reverse wire?
Use a multimeter set to DC voltage. With the ignition on and the vehicle in reverse, probe the wires. The one that reads 12V is the correct reverse trigger wire.
Can I install a backup camera without cutting wires?
Yes. Use T-tap connectors, fuse taps, or solder joints to tap into wires without cutting them. This preserves the factory harness and maintains warranty.
Why isn’t my backup camera turning on?
Check the reverse trigger wire, power source, and ground connection. Also, ensure the head unit is set to display the camera when in reverse. A faulty connection is usually the culprit.
