Which Wires Used for PoE Camera A Complete Guide

Ethernet cables, specifically Cat5e, Cat6, or higher, are essential for powering and connecting PoE cameras, as they deliver both data and electrical power over a single cable. Always verify your camera’s PoE standard (802.3af/at/bt) to ensure compatibility with your cabling and switch, avoiding performance issues or damage.

Key Takeaways

• Use Cat5e or higher: Ensures reliable power and data for PoE cameras.
• Check wire length limits: Stay under 100 meters to avoid signal loss.
• Verify PoE standards: Match camera and switch to IEEE 802.3af/at/bt.
• Shielded cables for EMI: Use STP in high-interference areas for stable connections.
• Proper termination is key: Follow T568A/B wiring for consistent performance.
• Avoid daisy-chaining injectors: Use midspan injectors or PoE switches instead.

The Future of Surveillance: Powering PoE Cameras with the Right Wires

Power over Ethernet (PoE) technology has revolutionized the world of surveillance and network infrastructure, offering a streamlined solution for powering and connecting IP cameras without the need for separate electrical wiring. Whether you’re setting up a security system for a small business, a large enterprise, or a smart home, understanding which wires are used for PoE cameras is essential to ensure optimal performance, safety, and longevity of your network. Gone are the days of tangled power cords and complicated installations—PoE enables data and power to travel over a single Ethernet cable, simplifying deployment and reducing costs.

However, not all cables are created equal when it comes to PoE camera installations. The type of wire you choose can directly impact signal quality, power delivery, transmission distance, and overall system reliability. From Cat5e to Cat8, shielded to unshielded, the options can be overwhelming. This comprehensive guide will walk you through everything you need to know about selecting, installing, and maintaining the right wires for your PoE camera system. We’ll explore the technical specifications, compare cable categories, discuss installation best practices, and help you avoid common pitfalls—ensuring your surveillance network runs smoothly and efficiently.

Understanding PoE Technology and How It Works

What Is Power over Ethernet (PoE)?

Power over Ethernet (PoE) is a technology that allows both electrical power and data to be transmitted over a single twisted-pair Ethernet cable. This eliminates the need for separate power cables, reducing clutter and simplifying installations. Originally developed for VoIP phones, PoE has become the gold standard for IP cameras, wireless access points, and IoT devices. The technology is standardized under IEEE 802.3af, 802.3at (PoE+), and 802.3bt (PoE++), each offering increasing levels of power delivery.

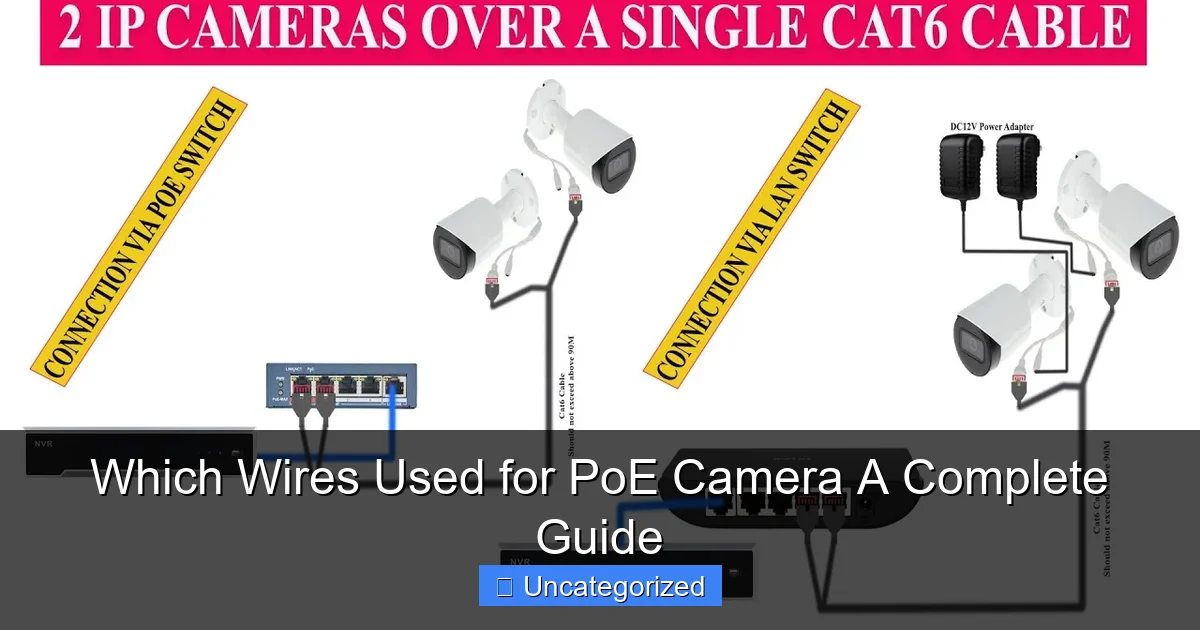

For PoE cameras, this means the camera receives its operating power (typically 12–48V DC) and network data through the same cable connected to a PoE switch, PoE injector, or a PoE-compatible Network Video Recorder (NVR). This integration reduces installation time, enhances scalability, and allows for remote power management and monitoring.

How PoE Delivers Power and Data Simultaneously

PoE uses a clever method called phantom power to transmit electricity. In a standard Ethernet cable, there are four twisted pairs (eight conductors). Data is transmitted over these pairs using differential signaling, which cancels out electromagnetic interference. Power is injected across the same pairs—or unused pairs in older standards—without disrupting the data signal.

• Mode A (Endspan): Power is delivered on the same pairs used for data (pins 1, 2, 3, and 6). This is common with PoE switches.
• Mode B (Midspan): Power is sent over the spare pairs (pins 4, 5 and 7, 8). Often used with PoE injectors.
• 4PPoE (4-Pair Power): Introduced with PoE++, power is delivered over all four pairs for higher wattage (up to 90W).

For example, a typical 24V PoE camera drawing 15W will receive power via Mode A from a PoE+ switch. The switch “handshakes” with the camera using the Power Sourcing Equipment (PSE) protocol to ensure compatibility and prevent damage to non-PoE devices.

PoE Standards and Their Relevance to Camera Power Needs

Different PoE standards support varying power levels, which directly influence the type of cameras and cables you can use:

• IEEE 802.3af (PoE): Up to 15.4W per port (12.95W available to device). Suitable for basic fixed cameras.
• IEEE 802.3at (PoE+): Up to 30W per port (25.5W available). Ideal for PTZ (pan-tilt-zoom) cameras, heaters, and outdoor models.
• IEEE 802.3bt (PoE++): Type 3 (60W) and Type 4 (100W). Supports high-power devices like dual-sensor cameras or cameras with IR illuminators and heaters.

Choosing the right PoE standard ensures your camera gets enough power, especially when operating in extreme temperatures or with advanced features. Always verify the camera’s power requirements (in watts) and match them with the appropriate PoE class.

Which Ethernet Cables Are Suitable for PoE Cameras?

Cat5e vs. Cat6 vs. Cat6a vs. Cat7 vs. Cat8: A Detailed Comparison

The category of Ethernet cable you use determines its data speed, bandwidth, shielding, and suitability for PoE. Below is a breakdown of the most common cable types used with PoE cameras:

Cable Type	Max Bandwidth	Max Speed	PoE Support	Max Distance (100m)	Shielding	Best For
Cat5e	100 MHz	1 Gbps	PoE, PoE+	Yes (with limitations)	Unshielded (UTP)	Basic indoor cameras, low-power devices
Cat6	250 MHz	1 Gbps (up to 10 Gbps at 55m)	PoE, PoE+, PoE++	Yes	Unshielded or shielded (STP)	High-resolution cameras, mid-range installations
Cat6a	500 MHz	10 Gbps	PoE, PoE+, PoE++	Yes	Shielded (S/UTP or F/UTP)	Outdoor, industrial, long-distance runs
Cat7	600 MHz	10 Gbps	PoE, PoE+, PoE++	Yes	Fully shielded (S/FTP)	High-interference environments, data centers
Cat8	2000 MHz	25–40 Gbps (short runs)	PoE, PoE+, PoE++	No (30m max)	Fully shielded (S/FTP)	High-speed data backbones (not typical for cameras)

While Cat8 offers blazing speeds, it’s generally overkill for PoE cameras, which rarely exceed 1 Gbps. Cat6a and Cat7 are excellent for future-proofing and high-interference areas, but Cat6 is the sweet spot for most PoE camera installations—balancing cost, performance, and power delivery.

Shielded vs. Unshielded Cables: When to Use Each

Shielding protects the twisted pairs from electromagnetic interference (EMI) and radio frequency interference (RFI), which can degrade signal quality and cause packet loss—especially critical for video transmission.

• Unshielded Twisted Pair (UTP): Most common (e.g., Cat5e, Cat6 UTP). Suitable for indoor environments with low EMI (offices, homes).
• Shielded Twisted Pair (STP or FTP): Includes foil or braided shielding (e.g., Cat6 STP, Cat6a F/UTP). Ideal for industrial areas, near machinery, or outdoor installations.
• Fully Shielded (S/FTP): Each pair and the overall cable are shielded (e.g., Cat7). Best for high-interference zones like power stations or data centers.

Practical Tip: If you’re installing cameras near fluorescent lights, motors, or high-voltage equipment, always use shielded cables. For outdoor runs, shielded Cat6a or Cat7 with UV-resistant jacketing is recommended to prevent degradation from sunlight and moisture.

Solid vs. Stranded Conductors: Choosing the Right Core

Ethernet cables come with either solid or stranded copper conductors:

• Solid Conductors: Single piece of copper per wire. Better for long, permanent runs (e.g., in-wall or conduit). Lower signal loss over distance.
• Stranded Conductors: Multiple thin wires per conductor. More flexible, ideal for patch cables or temporary setups. Higher resistance, not suitable for long distances.

For PoE camera installations, solid-core cables are preferred because they offer better power delivery and signal integrity over 100 meters. Stranded cables are only suitable for short connections (e.g., from a wall jack to a camera).

Key Technical Considerations for PoE Camera Wiring

Cable Length and Power Loss (Voltage Drop)

One of the biggest challenges in PoE installations is voltage drop over long cable runs. As electricity travels through copper, resistance causes the voltage to decrease. For example, a 24V PoE system may deliver only 20V at the camera end after 90 meters—potentially causing underperformance or failure.

The maximum recommended cable length for Ethernet is 100 meters (328 feet) per segment. Beyond this, signal degradation and power loss become significant. Factors affecting voltage drop include:

• Cable gauge (AWG): Lower AWG (e.g., 23 AWG) = thicker wire = less resistance.
• Cable material: Pure copper (not CCA—copper-clad aluminum) is essential for consistent power delivery.
• PoE standard: Higher-wattage PoE++ systems are more sensitive to voltage drop.

Tip: Use a voltage drop calculator or PoE power budget tool to ensure your camera receives at least 10–12V (minimum for most IP cameras). For runs over 80 meters, consider using Cat6a with 23 AWG conductors or a PoE extender.

Temperature and Environmental Factors

Outdoor and industrial environments expose cables to temperature extremes, UV radiation, moisture, and physical stress. These factors can degrade insulation, increase resistance, and shorten cable life.

• Indoor cables (CM/CMR): Flame-retardant jackets, suitable for dry locations.
• Outdoor cables (CMX, PE jacket): UV-resistant, water-blocked, suitable for direct burial or conduit.
• Plenum-rated (CMP): For air-handling spaces (e.g., ceilings). Meets fire safety codes.

For example, a camera installed on a rooftop should use a direct burial Cat6a cable with a polyethylene (PE) jacket and shielded construction. Avoid standard indoor cables outdoors—they’ll degrade within months.

PoE Power Budget and Switch Capacity

Before wiring multiple PoE cameras, calculate the total power draw and ensure your PoE switch or injector can handle it. For instance:

• 10 x PoE+ PTZ cameras @ 25W each = 250W total
• Requires a PoE++ switch with at least 300W power budget (to allow for overhead)

Always leave a 20–30% power margin. Overloading a switch can cause port failures or reboots. Use managed switches with per-port power monitoring for large installations.

Installation Best Practices and Common Mistakes to Avoid

Proper Cable Termination and Connector Types

Terminating Ethernet cables correctly is crucial for reliable PoE performance. Use:

• RJ45 connectors (8P8C): Standard for Ethernet. Use shielded connectors with shielded cables.
• Keystone jacks and patch panels: For structured cabling systems.
• Field-terminated vs. pre-terminated cables: Pre-terminated saves time; field-terminated allows custom lengths.

Pro Tip: Always follow the T568A or T568B wiring standard. Mismatched pinouts cause communication errors. Use a cable tester to verify continuity, polarity, and PoE delivery.

Grounding and Lightning Protection for Outdoor Runs

Outdoor PoE installations are vulnerable to lightning strikes and ground loops. To protect your system:

• Use shielded cables with proper grounding at both ends (camera and switch).
• Install PoE surge protectors (also called Ethernet lightning arrestors) on outdoor cables.
• Bond the shield to earth ground using a grounding block or clamp.

Failure to ground shielded cables can create a “ground loop,” introducing noise and damaging equipment.

Avoiding Cable Stress and Bending Radius

Ethernet cables have a minimum bend radius (typically 4x the cable diameter). Sharp bends or stapling too tightly can crush the twisted pairs, increasing crosstalk and resistance. Use:

• Cable ties (not staples)
• Conduit or raceways for protection
• Wall clips with wide radius

Never pull cables with excessive force. Use fish tape or pull string for long runs.

Future-Proofing Your PoE Camera Network

Upgrading to Higher Bandwidth and Power Standards

As camera resolutions increase (4K, 8MP, 12MP) and AI analytics become standard, data demands grow. Future-proof your network by:

• Using Cat6a or Cat7 cables for all new installations.
• Deploying PoE++ (802.3bt) switches to support high-power cameras.
• Planning for 10 Gbps backbone links between switches and NVRs.

Example: A 4K PTZ camera with IR and heater may require 40W—easily supported by PoE++ but not PoE+.

Smart Cable Management and Monitoring

Use structured cabling practices:

• Label all cables at both ends.
• Use cable trays and vertical/horizontal managers.
• Deploy network monitoring tools to track PoE power usage, port status, and uptime.

Smart switches with SNMP or cloud management allow remote troubleshooting—saving time and reducing downtime.

Conclusion: Making the Right Choice for Reliable PoE Camera Performance

Choosing the right wires for your PoE camera system is about more than just picking a cable—it’s about ensuring reliability, scalability, and long-term performance. The best wires for PoE cameras balance data speed, power delivery, environmental resilience, and cost. For most installations, shielded Cat6 or Cat6a with solid 23 AWG pure copper conductors is the optimal choice, offering support for PoE+, PoE++, and high-resolution video over 100-meter runs.

Remember to consider your environment: use outdoor-rated, shielded cables for exterior installations, and always verify PoE power budgets. Avoid copper-clad aluminum (CCA) cables—they’re cheaper but unreliable for PoE. Invest in proper termination, grounding, and cable management to prevent future headaches.

As technology evolves, so will your surveillance needs. By selecting the right wires today, you’re not just installing a camera—you’re building a foundation for a smart, secure, and scalable security network. Whether you’re a homeowner, integrator, or IT professional, understanding which wires are used for PoE cameras empowers you to make informed decisions that protect your assets, data, and peace of mind.

Frequently Asked Questions

Which wires are used for PoE camera installations?

PoE (Power over Ethernet) cameras typically use **Cat5e, Cat6, or Cat6a Ethernet cables**. These cables transmit both data and power, eliminating the need for separate power wiring.

Can I use Cat5e for PoE cameras, or is Cat6 better?

Yes, Cat5e works for most PoE cameras, but **Cat6 or Cat6a** is recommended for longer distances or higher power demands (e.g., PTZ cameras). Cat6 cables also reduce interference and support faster data speeds.

What type of wire is needed for outdoor PoE cameras?

For outdoor PoE cameras, use **shielded (STP) or outdoor-rated (CMX/UV-resistant) Cat6 cables**. These protect against moisture, temperature changes, and electromagnetic interference for reliable performance.

Do all Ethernet cables support PoE cameras?

Most modern Ethernet cables (Cat5e and above) support PoE, but **avoid low-quality or uncertified cables**. Thinner or poorly shielded wires may overheat or fail to deliver stable power.

How far can PoE cameras be from the switch using standard wires?

Standard PoE cameras work up to **100 meters (328 feet)** with Cat5e/Cat6 cables. Beyond that, you’ll need extenders or fiber converters to maintain power and data integrity.

Are there special PoE camera wires for high-power devices?

For high-power PoE cameras (e.g., 60W+), use **Cat6a or higher with 23 AWG conductors**. These thicker wires minimize voltage drop and safely handle PoE++ (802.3bt) standards.
