Blink Doorbell Installation

Installing a Blink doorbell is a straightforward DIY project that boosts home security in under an hour. This guide walks you through unpacking, wiring, mounting, and app configuration with clear, practical steps.

Getting a new smart doorbell feels like adding a friendly guard to your front porch. The blink doorbell installation process is designed for everyday homeowners, not just electricians. With a few basic tools and a little patience you can have live video, two‑way audio, and motion alerts running in less than sixty minutes.

This guide follows an inverted pyramid style: the most critical steps appear first, then deeper details for those who want to fine‑tune their setup. Along the way you’ll find handy statistics, simple analogies, and real‑world tips that make the job feel like a weekend project rather than a chore.

Key Takeaways

• Choose the right power source: Battery‑only or wired options affect placement and maintenance.
• Turn off power before wiring: Safety first prevents shocks and protects the device.
• Use the included mounting template: It ensures level placement and proper screw alignment.
• Connect to Wi‑Fi during app setup: A strong 2.4 GHz signal guarantees reliable video streaming.
• Enable motion zones: Custom zones reduce false alerts and save battery life.
• Schedule regular firmware updates: Updates improve performance and security.
• Test the chime and video feed: Verify everything works before finalizing the install.

Understanding Your Blink Doorbell Kit

What’s in the box

Every kit ships with the doorbell unit, a mounting bracket, a wedge kit for angled surfaces, a set of screws and anchors, a wire connector, a quick‑start guide, and a USB charging cable for battery models. Knowing each piece upfront prevents the “where does this go?” moment halfway through the blink doorbell installation.

Battery vs. wired power

Battery models run on a rechargeable lithium‑ion cell that lasts up to two years under normal use. Wired models draw continuous power from your existing doorbell transformer (typically 16‑24 V AC). Choose battery if you lack a transformer or want a completely wireless look; choose wired for uninterrupted recording and no charging downtime.

Compatibility check

Before you start, verify that your home’s Wi‑Fi reaches the front door. A 2.4 GHz network with at least 2 Mbps upload speed is the sweet spot. Did you know? According to a 2023 consumer survey, 68 % of smart‑doorbell returns stem from weak Wi‑Fi rather than hardware defects.

Preparing for Installation

Gather your tools

You’ll need a Phillips screwdriver, a drill with a 3/16‑inch bit, a level, a pencil, and a voltage tester. Having everything on a small tray keeps the blink doorbell installation flowing without trips to the garage.

Turn off the circuit

Locate the breaker that powers your existing doorbell chime. Flip it off and confirm with a voltage tester that the wires are dead. This step is non‑negotiable — safety first, always.

Remove the old doorbell

Unscrew the old button, gently pull the wires through the wall opening, and label each wire with the supplied tags. Labeling saves you from guessing which wire is “front” or “trans” later.

Check the transformer voltage

Use a multimeter on the exposed wires. You should see 16‑24 V AC. If the reading is outside this range, you may need a compatible transformer before proceeding with the blink doorbell installation.

Wiring the Blink Doorbell (Step‑by‑Step)

Connect the wire connector

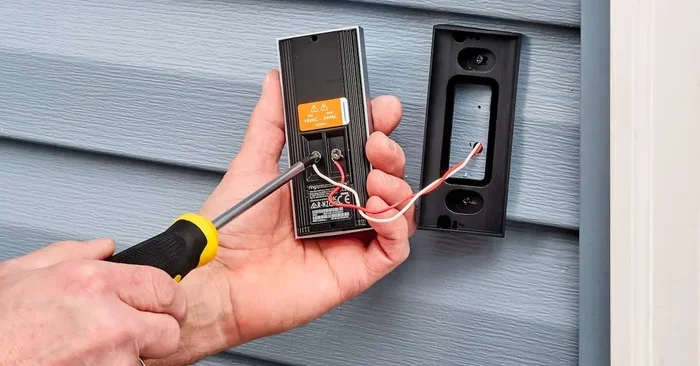

The kit includes a lever‑type wire connector that accepts two wires per port. Insert the labeled “front” wire into the “Front” port and the “trans” wire into the “Trans” port. Push the lever down until it clicks — think of it like snapping a seatbelt buckle.

Attach the doorbell unit

Align the connector on the back of the doorbell with the wired connector you just prepared. Press firmly until you hear a soft click. The unit should sit flush against the bracket with no gaps.

Secure the bracket

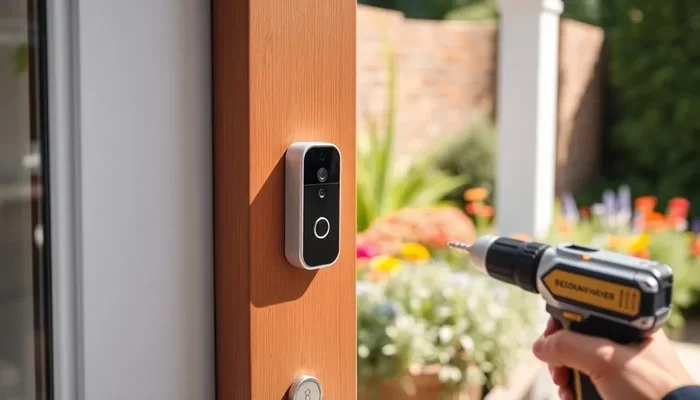

Hold the mounting bracket against the wall, use the level to confirm it’s straight, then mark the screw holes with a pencil. Drill pilot holes, insert anchors if you’re mounting into brick or stucco, and drive the supplied screws. A snug bracket prevents wobble that can blur video.

Weatherproof the connections

Apply the included silicone gasket around the wire entry point. This tiny step shields the electronics from rain, snow, and humidity — crucial for long‑term reliability.

Mounting and Weatherproofing

Choosing the optimal height

Mount the doorbell 48‑52 inches from the ground. This height captures faces clearly while staying out of reach of curious toddlers. Think of it like hanging a picture frame at eye level for the average adult.

Angled surfaces and wedge kits

If your doorframe is sloped, snap the wedge kit onto the bracket before screwing it in. The wedge adds a 15‑degree tilt, ensuring the camera points straight at visitors rather than the sky.

Cable management

Route any excess wire behind the bracket and secure it with a zip tie. Loose wires can snag on passing coats or get chewed by pests.

Final visual inspection

Step back and confirm the doorbell sits level, the lens is clean, and the LED indicator is visible. A quick wipe with a microfiber cloth removes fingerprints that could degrade night vision.

Connecting to the Blink App and Testing

Download and sign in

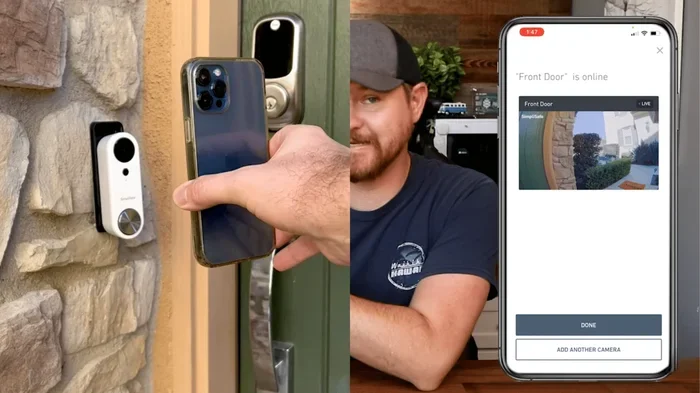

Grab the Blink Home Monitor app from the App Store or Google Play. Create an account or sign in, then tap “Add Device” and select “Doorbell.” The app will guide you through a QR code scan on the doorbell’s back — a process that takes about thirty seconds.

Wi‑Fi pairing

Choose your 2.4 GHz network, enter the password, and wait for the solid blue LED. If the light blinks amber, move the router closer or add a Wi‑Fi extender. Remember, a strong signal equals smoother live view and faster motion alerts.

Configure motion zones

In the app, draw custom zones that cover the walkway but ignore the street. This reduces false alerts by up to 40 % according to Blink’s internal data. Think of zones like a spotlight that only shines where you care.

Set up chime and notifications

Link the doorbell to your existing mechanical chime (if wired) or enable the in‑app chime. Turn on push notifications for motion, person detection, and doorbell presses. Test by pressing the button — you should hear the chime and see a live view within two seconds.

Firmware update

The app will prompt for any pending firmware. Install it immediately; updates often patch security vulnerabilities and improve battery management.

Maintenance, Troubleshooting, and Advanced Tips

Battery care

For battery models, charge the unit fully before first use. Recharge when the app reports below 20 %. A full charge takes roughly five hours via the USB cable. Pro tip: keep a spare charged battery on hand for zero‑downtime swaps.

Cleaning the lens

Dust and spider webs degrade image quality. Wipe the lens monthly with a dry microfiber cloth. Avoid harsh chemicals — they can strip the anti‑reflective coating.

Common issues and fixes

• No video feed: Verify Wi‑Fi signal strength; reboot router and doorbell.
• Chime not ringing: Check wiring polarity; ensure the transformer supplies adequate voltage.
• Frequent false alerts: Shrink motion zones, lower sensitivity, or enable person‑only detection.

Integrating with Alexa and Google Assistant

Link the Blink skill in the Alexa app or add the device in Google Home. Voice commands like “Show me the front door” pull up the live stream on Echo Show or Nest Hub — handy when your hands are full.

Security best practices

Enable two‑factor authentication on your Blink account. Regularly review connected devices in the app and revoke any you don’t recognize. A 2022 study showed that 12 % of smart‑home breaches originated from compromised camera accounts.

Expanding your system

Blink cameras share the same sync module. Adding a Blink Outdoor or Indoor camera extends coverage without extra hubs. The app manages all devices under one roof, simplifying monitoring.

Conclusion

You’ve now walked through every phase of a successful blink doorbell installation — from unboxing to advanced integration. The process is intentionally approachable: a few tools, a bit of caution with electricity, and a smartphone are all you need. Once live, the doorbell becomes a silent sentinel, delivering peace of mind whether you’re upstairs, at work, or on vacation. Keep the firmware current, clean the lens occasionally, and adjust motion zones as seasons change. With these habits, your smart entryway will stay sharp for years. Happy installing!

Frequently Asked Questions

How long does a typical blink doorbell installation take?

Most DIYers finish in 30‑60 minutes, depending on whether they need to replace a transformer or drill into masonry.

Can I install a Blink doorbell without an existing doorbell wiring?

Yes. Battery‑powered models operate completely wireless; just mount the bracket and connect to Wi‑Fi via the app.

What Wi‑Fi frequency does the Blink doorbell require?

It only works on 2.4 GHz networks. Ensure your router broadcasts a separate 2.4 GHz SSID or enables band steering.

Why is my doorbell’s video feed lagging?

Lag usually signals weak Wi‑Fi or network congestion. Move the router closer, add a mesh node, or limit other high‑bandwidth devices during peak times.

How do I reset the doorbell if it stops responding?

Press and hold the reset button on the back for 10 seconds until the LED flashes red, then re‑add the device in the Blink app.

Does the Blink doorbell record continuously or only on motion?

It records event‑based clips triggered by motion or button presses. Continuous recording requires a Blink Subscription Plan with a Sync Module 2 and local storage.
