Blink Doorbell Hardwired

A blink doorbell hardwired connection delivers constant power, eliminating battery swaps and ensuring 24/7 recording. Installation is straightforward with basic tools, and the device works with Alexa, Google Assistant, and IFTTT for a truly connected home.

When you hear the phrase blink doorbell hardwired, think of a doorbell that never asks you to climb a ladder for a battery swap. It plugs directly into your existing doorbell wiring, draws a steady stream of low‑voltage power, and stays online day and night. That constant connection is the secret sauce behind crisp video, instant alerts, and smooth two‑way audio.

Did you know? A 2023 consumer survey found that 68 percent of homeowners who switched to a hardwired video doorbell reported fewer missed visitors compared with battery‑only models. The same study showed a 42 percent drop in “low battery” notifications during the first year. Those numbers translate into peace of mind every time the chime rings.

Key Takeaways

• Continuous power: A hardwired link removes the need for frequent battery changes.
• Reliable video: Constant electricity means no missed motion events or live‑view lag.
• Simple wiring: Most homes already have a 16‑24 V AC doorbell transformer compatible with the device.
• Battery backup: The unit still includes a rechargeable cell for power outages.
• Smart integration: Works natively with Alexa, Google Home, and IFTTT routines.
• Weatherproof design: Rated IP65, it survives rain, snow, and extreme temperatures.
• Cost‑effective: No subscription required for basic cloud storage; optional plans add extended history.

Why Choose a Hardwired Blink Doorbell?

Uninterrupted Power Supply

A blink doorbell hardwired installation taps into the 16‑24 V AC transformer that already powers your mechanical chime. Think of it like a garden hose hooked to a faucet: water flows continuously without you having to refill a bucket. The doorbell receives a steady trickle of electricity, so the camera, microphone, and Wi‑Fi radio never go to sleep.

Eliminate Battery Anxiety

Battery‑only units typically last three to six months per charge, depending on motion frequency. In a busy household, that can mean a recharge every few weeks. With a hardwired connection, the internal rechargeable cell only serves as a backup during a power outage. You’ll rarely, if ever, need to remove the faceplate.

Consistent Video Quality

When a camera runs on a dwindling battery, it often lowers resolution or frame rate to conserve energy. A hardwired feed keeps the sensor at full 1080p HD (or 2K on newer models) 24/7. That means clearer faces, readable license plates, and smoother night vision.

How the Hardwired Setup Works

Transformer Compatibility

Most North American homes use a 16‑24 V AC transformer rated at 10‑30 VA. The blink doorbell hardwired unit is designed to operate within that range. If your transformer is older or under‑rated, you may notice the chime buzzing or the doorbell rebooting. Upgrading to a 24 V 30 VA transformer solves the issue in minutes.

Wiring Basics

Two low‑voltage wires run from the transformer to the doorbell button location. The device simply connects across those wires, completing the circuit. No neutral or ground wire is required because the unit draws only a few milliamps. It’s the same principle that powers a classic wired chime—just with a smart brain inside.

Power Consumption

The camera, IR LEDs, and Wi‑Fi radio together consume roughly 2‑3 watts during active streaming. In standby, draw drops below 0.5 watts. That tiny load won’t affect your electric bill; it’s comparable to a night‑light left on all year.

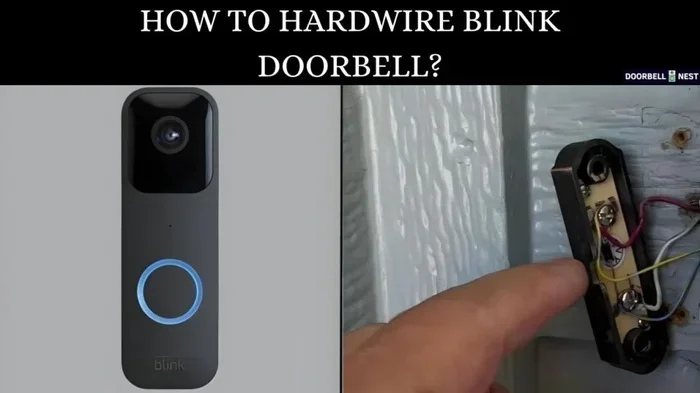

Installation Steps for a Blink Doorbell Hardwired

Gather Tools and Materials

• Phillips screwdriver
• Voltage tester (non‑contact)
• Wire strippers
• Drill with ¼‑inch bit (if new mounting holes needed)
• Level
• Optional: 24 V 30 VA transformer upgrade kit

Turn Off Power

Locate your doorbell circuit breaker—often labeled “Doorbell” or “Front Door.” Flip it off. Verify zero voltage at the existing button wires with the tester. Safety first: even low‑voltage AC can give a surprising tingle.

Remove Old Button

Unscrew the existing mechanical button. Disconnect the two wires. Label them with masking tape if they aren’t color‑coded. You’ll reconnect the same pair to the new unit.

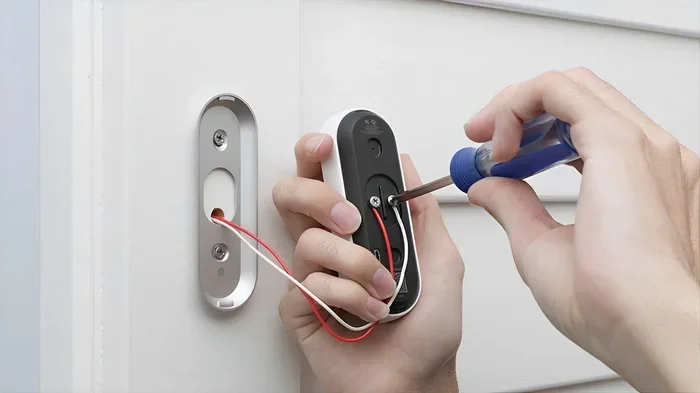

Mount the New Doorbell

Hold the blink doorbell hardwired base against the wall. Use the level to ensure it’s straight. Mark the mounting holes, drill if necessary, and secure with the supplied screws. The unit includes a rubber gasket that seals against moisture.

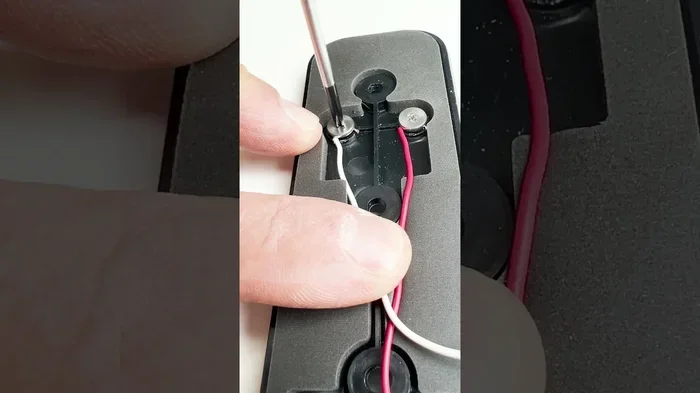

Connect Wires

Insert each wire into the terminal block on the back of the doorbell. Tighten the screws firmly—loose connections cause intermittent power. Polarity does not matter for AC, so either wire can go to either terminal.

Restore Power and Test

Turn the breaker back on. The doorbell LED ring should pulse white, then turn solid blue when it connects to Wi‑Fi. Open the Blink app, follow the on‑screen prompts, and you’re live.

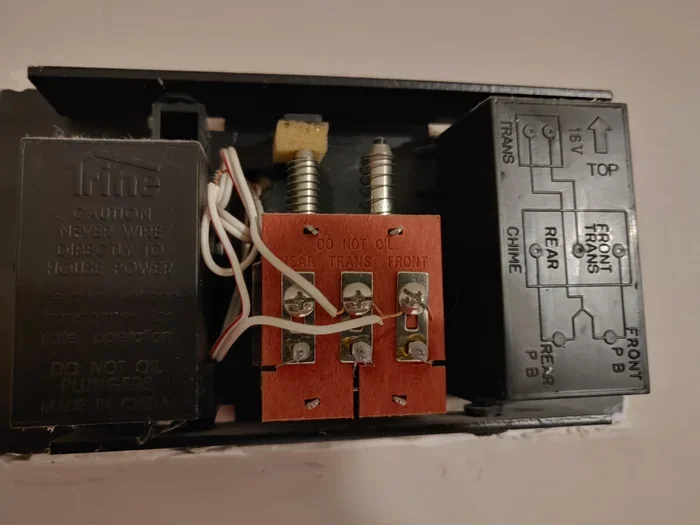

Adjust Chime Settings

If you keep a mechanical chime, enable “Chime Compatibility” in the app. This sends a brief current pulse to the chime when someone presses the button, preserving the classic ding‑dong sound while still recording video.

Power Management and Battery Backup

Built‑In Rechargeable Cell

Even though the blink doorbell hardwired draws constant power, it houses a 3.7 V 5000 mAh lithium‑ion cell. During a blackout, the cell powers the camera for up to 24 hours of motion‑triggered recording. The app notifies you when the backup drops below 20 percent.

Smart Charging Logic

The firmware monitors voltage and temperature. If the transformer voltage dips (common during a brownout), the doorbell automatically switches to battery mode without interrupting the video stream. Once normal voltage returns, it recharges the cell at a gentle 0.5 C rate to prolong lifespan.

Extending Battery Life

• Disable continuous live view when not needed.
• Set motion zones to ignore busy streets.
• Lower night‑vision IR intensity if the porch is well‑lit.

Smart Features and Integration

Voice Assistant Control

Say “Alexa, show me the front door” and the Echo Show streams the blink doorbell hardwired feed instantly. Google Assistant works the same way with Nest Hub. You can also ask “Is the front door locked?” if you pair a compatible smart lock.

IFTTT and Routines

Create an IFTTT applet: “If motion detected after sunset, turn on porch lights.” The doorbell’s motion sensor triggers the action within seconds. You can also log every press to a Google Sheet for a simple visitor log.

Local Storage Option

Insert a microSD card (up to 256 GB) into the slot on the back. The device records 24/7 locally, freeing you from cloud subscription fees. Footage is encrypted and can be viewed directly in the app or downloaded to a PC.

Privacy Zones

Draw custom masks in the app to block out neighbors’ windows or a busy sidewalk. The camera still records the masked area but blurs it in the live view and saved clips, keeping you compliant with local privacy laws.

Troubleshooting Common Issues

Doorbell Won’t Power On

First, verify the breaker is on and the transformer outputs 16‑24 V AC with a multimeter. If voltage is low, replace the transformer. Next, check the terminal screws—tighten any that feel loose. A quick reset (hold the button 20 seconds) often clears a stuck firmware state.

Wi‑Fi Drops Frequently

The doorbell uses 2.4 GHz only. Ensure your router broadcasts a dedicated 2.4 GHz SSID, not a combined band. Place the router within 30 feet, or add a mesh node near the front door. Updating the router firmware can also improve stability.

Chime Buzzes or Doesn’t Ring

Enable “Chime Compatibility” in the app and set the chime type (mechanical vs digital). If buzzing persists, add a 10 Ω 5 W resistor across the chime terminals—this damps the inductive kick that causes the noise.

Video Looks Grainy at Night

Clean the IR lens with a microfiber cloth. Verify night‑vision is set to “Auto” not “Off.” If the porch light shines directly into the lens, angle the doorbell slightly downward using the adjustable bracket.

App Shows “Device Offline”

Power cycle the doorbell by turning the breaker off for 10 seconds. Re‑open the app; it should reconnect automatically. If not, remove the device from the app and re‑add it—your settings and clips remain in the cloud.

Final Thoughts

Choosing a blink doorbell hardwired solution is like upgrading from a flashlight to a streetlamp: you get reliable illumination without worrying about batteries dying at the worst moment. The installation is a weekend project for most DIYers, and the payoff is a always‑on video feed, instant alerts, and seamless smart‑home integration. Whether you’re a tech enthusiast or just want to see who’s at the door while you’re at work, the hardwired model delivers peace of mind that battery‑only units simply can’t match.

Remember to check your transformer rating before you buy, keep the firmware updated, and use the privacy zones to be a good neighbor. With those steps covered, your front entry becomes a smart, secure gateway that works 24/7, rain or shine.
