How to Install Blink Doorbell

Installing a Blink Doorbell is a straightforward DIY project that takes about 30 minutes with basic tools. This guide walks you through every step from unboxing to app configuration, whether you’re replacing an old doorbell or installing a new battery-powered unit.

You just bought a Blink Doorbell. The box sits on your kitchen table. You’re excited but maybe a little nervous about the installation part. I get it. Drilling holes in your house feels permanent. Wiring feels dangerous. The good news? This is one of the easiest smart home installs you’ll ever do. Most people finish in under 30 minutes with just a screwdriver and a phone.

Blink, owned by Amazon since 2018, designed this doorbell for regular homeowners. Not electricians. Not contractors. You. The battery-powered option means zero wiring if you don’t want it. The wired option connects to your existing doorbell chime in minutes. Either way, you’ll have live video, two-way talk, and motion alerts on your phone before your coffee gets cold.

Key Takeaways

• Choose your power source: Blink Doorbell works as battery-only or wired to existing chime (16-24V AC).
• Download the Blink app first: Create an account and add the device before physical installation.
• Mount at 48 inches height: Optimal viewing angle for faces and packages at eye level.
• Use the included wedge mount: Adjusts camera angle 5° or 15° for better coverage of your entryway.
• Sync Module 2 required: Local storage via USB drive needs Sync Module 2 (sold separately).
• Test Wi-Fi signal beforehand: Weak signal causes missed alerts; use a Wi-Fi extender if needed.
• Enable motion zones: Reduces false alerts from passing cars or trees by 80%.

What You Need Before Starting

Tools and Materials Checklist

Gather everything before you climb a ladder. Nothing kills momentum like hunting for a drill bit halfway through.

• Blink Video Doorbell (in box)
• Smartphone with Blink Home Monitor app (iOS 14+ or Android 7+)
• Phillips head screwdriver (#2 size)
• Drill with 3/16-inch masonry bit (for brick/stucco) or 1/8-inch wood bit
• Level (bubble or phone app)
• Pencil for marking holes
• Wire strippers (only if wiring to existing chime)
• Voltage tester (only if wiring)

Did you know? According to a 2023 Parks Associates study, 68% of smart doorbell buyers install the device themselves. The average install time reported was 22 minutes for battery-only setups.

Check Your Existing Doorbell Voltage (Wired Installs Only)

If you plan to wire your Blink Doorbell to an existing chime, you need 16-24V AC power. Most residential doorbells run on 16V or 24V transformers. Here’s how to check safely:

1. Turn off power at the breaker for the doorbell circuit.
2. Remove your old doorbell button cover.
3. Use a voltage tester on the two wires.
4. Turn power back on briefly to read voltage.
5. Turn power off again before touching wires.

If you read 16-24V AC, you’re good. If it’s lower, your chime won’t ring reliably. If higher, you risk damaging the Blink unit. No voltage reading? You may have a wireless chime or broken transformer. In that case, stick with battery mode.

Wi-Fi Signal Strength Test

Stand at your front door with your phone. Open the Wi-Fi settings. You want at least -65 dBm signal strength (usually 2-3 bars). The Blink Doorbell only connects to 2.4 GHz networks. It will not see 5 GHz. If your router broadcasts both bands with the same name, temporarily disable 5 GHz during setup or create a separate 2.4 GHz guest network.

Weak signal? A $25 Wi-Fi extender plugged into an interior outlet near the door solves this. Place it halfway between router and doorbell.

Step 1: Set Up the Blink App and Account

Download and Create Account

Before touching hardware, get the software ready. Search “Blink Home Monitor” in the App Store or Google Play. Download the app with the blue icon. Open it. Tap “Create Account.” Enter your email, create a password, and verify via email link. This takes two minutes.

Already have a Blink account for cameras? Perfect. Just sign in. The doorbell joins your existing system.

Add the Doorbell to Your System

Tap the plus sign (+) in the top right. Select “Add Device.” Choose “Video Doorbell.” The app will ask you to scan the QR code on the back of the doorbell unit or on the quick-start card. Can’t find it? Tap “Don’t have a QR code?” and enter the serial number manually (starts with DSN).

The app now walks you through Wi-Fi connection. Select your 2.4 GHz network. Enter password. The doorbell LED will flash blue during connection, then turn solid blue when ready.

Sync Module 2 for Local Storage (Optional but Recommended)

Here’s a decision point. Blink Doorbell stores clips in the cloud with a Blink Subscription Plan ($3/month per device or $10/month unlimited). But if you buy a Sync Module 2 ($35) and plug in a USB flash drive (up to 256GB), you get local storage with no monthly fee. Clips save to the USB drive. You view them in the app just like cloud clips.

If you want local storage, add the Sync Module 2 to the app first (same process: plus sign, add device, Sync Module). Plug it into power near your router. Connect via Ethernet or Wi-Fi. Insert USB drive. Then add the doorbell. The app links them automatically.

Pro tip: Format the USB drive as exFAT or FAT32 before inserting. NTFS won’t work. The app will prompt to format if needed, but doing it on a computer first is faster.

Step 2: Physical Installation – Battery Mode

Choose the Perfect Mounting Spot

Height matters. Mount the doorbell 48 inches (4 feet) from the ground to the center of the unit. This captures faces, not foreheads. It also catches packages left on the porch. Use a tape measure. Mark the center point with pencil.

Horizontal position: Center on the door frame or slightly to the knob side. Avoid mounting directly on metal door frames if possible. Metal can interfere with Wi-Fi and motion detection. Wood, brick, stucco, vinyl siding are all fine.

Attach the Mounting Bracket

The box includes a mounting bracket, two wood screws, two anchors (for masonry), and a wedge mount (5° and 15° angles). Start with the bracket.

1. Hold bracket at your 48-inch mark. Use level.
2. Mark the two screw holes with pencil.
3. Drill pilot holes at marks. Wood: 1/8-inch bit. Brick/stucco: 3/16-inch bit for anchors.
4. If using anchors, tap them in flush with wall.
5. Screw bracket to wall. Don’t overtighten. Snug is enough.

Should you use the wedge mount? If your door is recessed or you need to angle the view down toward packages, yes. The wedge snaps onto the back of the bracket before you screw it to the wall. Choose 5° for slight angle, 15° for steep angle (like a porch with steps).

Insert Batteries and Mount Doorbell

Your Blink Doorbell comes with two AA lithium batteries pre-installed with a pull-tab. Pull the tab. The front LED flashes red, then blue. That’s it. Battery mode is live.

Align the doorbell with the bracket. Top hooks go in first. Press bottom until you hear a click. The release tab at the bottom locks it. Give a gentle tug to confirm it’s secure.

Did you know? Blink claims up to two years battery life on two AA lithium batteries with “normal use” (10 motion events per day, 15 seconds each, Live View 5 times daily). Real world? Expect 6-12 months in busy areas. Cold weather reduces lithium battery performance. Keep spares handy.

Step 3: Physical Installation – Wired Mode

Safety First: Power Off

This is non-negotiable. Turn off the breaker for your doorbell circuit. Verify power is off with a voltage tester on the old doorbell wires. If you’re not sure which breaker, turn off the main. Yes, it’s annoying to reset clocks. It’s less annoying than a shock.

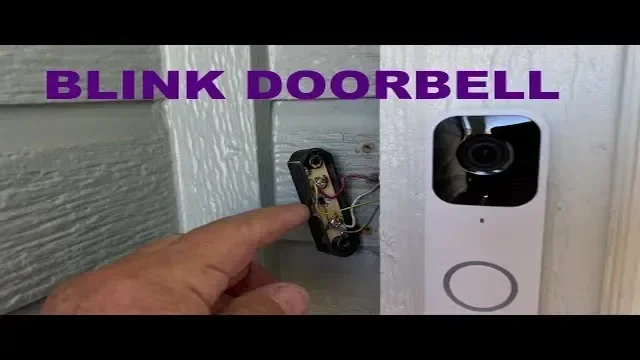

Remove Old Doorbell Button

Unscrew the old button. Two wires hang loose. Label them with the included wire labels or masking tape. Doesn’t matter which is which for Blink. It’s not polarity sensitive. But labeling helps if you revert later.

Straighten wire ends. If they’re frayed, strip 1/4 inch fresh copper with wire strippers.

Connect Wires to Blink Doorbell

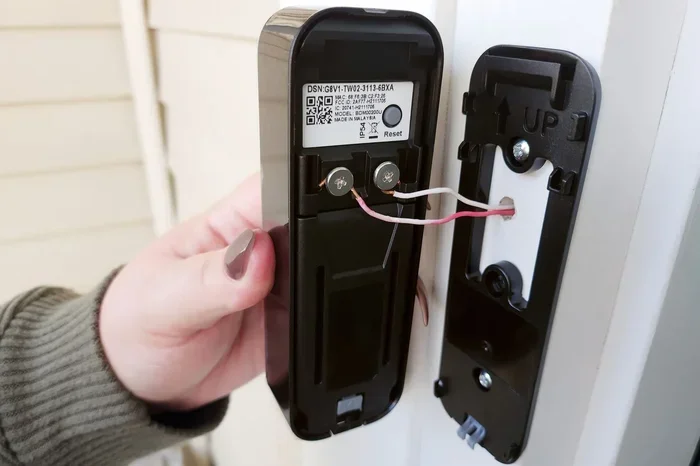

The Blink Doorbell has two terminal screws on the back labeled “FRONT” and “TRANS” (transformer). Loosen both screws. Wrap one wire around each terminal. Tighten screws. No specific order needed. Give each wire a gentle tug to confirm hold.

If your old doorbell had a diode (small cylinder on one wire), remove it. Blink doesn’t need it. Toss it or save for future.

Mount and Restore Power

Mount the doorbell to the bracket same as battery mode. Top hooks, press bottom, click. Turn breaker back on. The doorbell LED should flash blue, then solid blue. Your existing chime should now ring when the button is pressed.

If chime doesn’t ring: Check voltage again. Some mechanical chimes need 16V minimum. Digital chimes often need a resistor (included in some Blink kits, or $5 at hardware store) across the chime terminals to prevent buzzing.

Step 4: App Configuration and Customization

Motion Detection Settings

Open the Blink app. Tap your doorbell thumbnail. Tap the settings gear icon. Start with “Motion Detection.” Enable it. Set sensitivity. Start at 5 (middle). Too many alerts? Lower to 3-4. Missing people? Raise to 7-8. Each notch is noticeable.

Enable “Motion Zones.” This is huge. Draw rectangles on the camera view to ignore areas. Exclude the street, sidewalk, neighbor’s yard, moving trees. Keep only your walkway, porch, steps. This alone cuts false alerts by 80% in most installs.

Set “Retrigger Time” to 10-15 seconds. This prevents spam alerts when someone lingers. Set “Clip Length” to 20-30 seconds. Longer clips use more battery/storage but capture full events.

Activity Zones vs Privacy Zones

Two different tools. Activity Zones (motion zones) tell the camera where to LOOK for motion. Privacy Zones tell the camera where to BLUR in recordings. Use Privacy Zones for neighbor’s windows, license plates on street, areas you legally shouldn’t record. Draw them in the same settings menu. They appear as gray blocks in live view and recordings.

Chime and Notification Settings

Under “Doorbell Settings,” enable “Ring Chime” if wired. Choose chime type: Mechanical (old ding-dong) or Digital (electronic melody). Wrong setting causes buzzing or no ring.

Enable “Press Notifications” for instant phone alerts when button pressed. Enable “Motion Notifications” for movement alerts. Customize notification sound in your phone’s system settings for the Blink app. Make it distinct from texts.

Two-way talk: Enabled by default. Tap microphone icon in Live View to speak. Tap speaker to hear. Works like a walkie-talkie. One person talks at a time.

Video Quality and Night Vision

Video quality: “Best” (1080p) uses more bandwidth and battery. “Standard” (720p) saves both. For battery mode, use Standard. For wired, use Best. Night vision: Auto works for 95% of installs. IR LEDs activate automatically in low light. Range is about 20 feet.

Step 5: Testing and Troubleshooting

The Walk Test

Stand at the street. Walk toward your door at normal pace. Check phone. Alert should arrive within 2-3 seconds of crossing motion zone. Live View should open instantly. Video should be clear. Audio should work both ways.

Have a friend press the button. Chime rings (wired). Phone alerts. Live View opens. You talk. They hear. They talk. You hear. Test at night too. IR night vision should show clear faces at 10-15 feet.

Common Issues and Fixes

No Wi-Fi connection: Double-check 2.4 GHz only. Restart router. Move Sync Module closer. Add extender.

Chime buzzes or doesn’t ring: Wrong chime type selected in app. Or needs resistor across chime terminals (digital chimes).

False motion alerts: Adjust motion zones. Lower sensitivity. Enable “Person Detection Only” (requires Blink Subscription).

Battery drains fast: Too many motion events. Reduce clip length. Lower sensitivity. Check for constant motion source (flag, tree, busy street).

Live View fails: Weak Wi-Fi. Close and reopen app. Restart doorbell (remove battery 10 seconds or power cycle breaker).

Did you know? Blink Doorbell operates in temperatures from -4°F to 113°F (-20°C to 45°C). Lithium batteries (included) handle cold better than alkaline. Never use rechargeable batteries. Voltage is too low (1.2V vs 1.5V) and causes erratic behavior.

Step 6: Advanced Features and Integrations

Alexa Integration

Blink is Amazon. Alexa integration is native. Open Alexa app. Devices > Plus > Add Device > Camera > Blink. Sign in with Blink account. All devices appear. Now you can say “Alexa, show front door” on Echo Show or Fire TV. “Alexa, announce someone at front door” broadcasts to all Echo devices.

Create routines: “When Blink detects motion at front door, turn on porch light.” Requires smart bulb or switch. Great for deterrence.

Blink Subscription Plan Details

Without subscription: Live View only. No clip saving. No Person Detection. No Photo Capture (hourly still images for timeline).

Basic Plan ($3/month per device): 60-day cloud clip history. Person Detection. Photo Capture. Video sharing.

Plus Plan ($10/month all devices): Everything above plus extended warranty (as long as subscribed). 10% Blink store discount.

Local storage via Sync Module 2 + USB: No monthly fee. Clips saved locally. Person Detection works. Photo Capture works. But no cloud backup. If doorbell stolen, clips go with it unless you also enable cloud backup in settings (uses subscription).

Sharing Access with Family

App menu > Account > Manage Account > Share Access. Enter family member email. They get invite. They download app, create own account, accept invite. They see all devices. They get alerts. They can’t change system settings or delete clips. Perfect for partners, roommates, adult kids.

Maintenance and Long-Term Care

Battery Replacement

App notifies at 20% battery. Slide doorbell up off bracket (press release tab at bottom). Remove old batteries. Insert two new AA lithium batteries. Positive ends match diagram inside. Slide doorbell back on bracket. Click. Done. No re-pairing needed.

Use name-brand lithium: Energizer Ultimate Lithium, Duracell Optimum, or Amazon Basics Lithium. Avoid alkaline. Avoid rechargeable. Cost: ~$6 for 4-pack. Once a year typical.

Cleaning the Lens

Dust, pollen, spider webs blur video. Wipe lens gently with microfiber cloth monthly. Don’t use paper towels (scratch). Don’t use Windex (damages coating). Water or lens cleaner on cloth only. Check IR LEDs at night. Clean those too.

Firmware Updates

Automatic by default. App notifies if manual update needed. Keep app updated. Doorbell updates over Wi-Fi. Takes 2-3 minutes. Don’t remove batteries or cut power during update.

Seasonal Adjustments

Summer: Insects trigger motion at night. Lower sensitivity or shrink zones. Winter: Snow reflects IR. May cause whiteout in night vision. Angle wedge mount down slightly. Cold reduces battery life. Check monthly.

Conclusion

You did it. Your Blink Doorbell is mounted, connected, and watching. You joined the 68% of owners who DIY this install. No electrician bill. No monthly contract required (if you use local storage). Just a safer, smarter front door.

Remember the basics: Check battery once a year. Clean the lens monthly. Adjust motion zones when seasons change. Use the app to talk to delivery drivers, scare off porch pirates, or just wave at neighbors. That’s the real value. Not the specs. The peace of mind.

If you hit a snag, Blink support is surprisingly good. Chat in the app. Call 1-833-392-5465. Community forums at reddit.com/r/blinkcameras are active and helpful. You’re not alone in this.

Now go enjoy that coffee. Your front door has never been smarter.
