Adding an IP camera to Hikvision NVR is easier than you think! In this guide, you’ll learn the full process—from physical installation to network configuration—so your cameras work flawlessly with your recorder. Whether you’re expanding your home security or building a business system, we’ve got clear steps and expert tips to make it happen quickly.
Quick Answers to Common Questions
Tip/Question? How do I know if my IP camera is PoE or needs external power?
Answer: Check the camera’s label or packaging. PoE (Power over Ethernet) cameras often say “PoE” or “802.3af/at.” Non-PoE models typically require a DC power adapter. If unsure, consult the user manual or contact the manufacturer.
Tip/Question? Can I mix Hikvision and third-party IP cameras?
Answer: Yes, especially ONVIF-compliant cameras. Hikvision NVRs support many brands like Dahua, Amcrest, and Lorex, but test compatibility first and expect slightly reduced functionality compared to native Hikvision gear.
Tip/Question? Why isn’t my camera showing up after auto-search?
Answer: Verify the camera and NVR are on the same network subnet. Try pinging the camera’s IP from a computer. Also, ensure the camera isn’t blocked by a VLAN or firewall. Manual entry often resolves stubborn cases.
Tip/Question? Should I use dynamic or static IPs for my cameras?
Answer: For reliability, assign static IPs via your router or NVR’s DHCP reservation. Dynamic IPs (via DHCP) can change unexpectedly, causing connection drops—especially problematic for remote access.
Tip/Question? How many IP cameras can I connect to one Hikvision NVR?
Answer: It depends on the NVR model. Entry-level units support 4–8 channels; mid-range handle 16–32; enterprise models go up to 64+. Always check the specs—exceeding limits causes dropped frames or failed detection.
How to Add an IP Camera to Hikvision NVR: A Complete Step-by-Step Guide
If you’re upgrading your home security system or expanding a small business surveillance setup, integrating an IP camera with your Hikvision Network Video Recorder (NVR) is one of the most effective ways to build a reliable, scalable video monitoring solution. Unlike analog systems, IP-based networks offer higher resolution, remote access, and intelligent features like motion alerts and facial recognition. But if you’re new to IP cameras and Hikvision equipment, the process might seem confusing at first.
This comprehensive guide walks you through everything you need to know about how to add an IP camera to Hikvision NVR. From unboxing to final verification, we’ll cover every detail—including wiring, software setup, network considerations, and troubleshooting. By the end, you’ll have a fully functional surveillance system that delivers crystal-clear footage, instant notifications, and peace of mind.
Before You Begin: What You’ll Need
Before diving into the installation, gather these essential items:

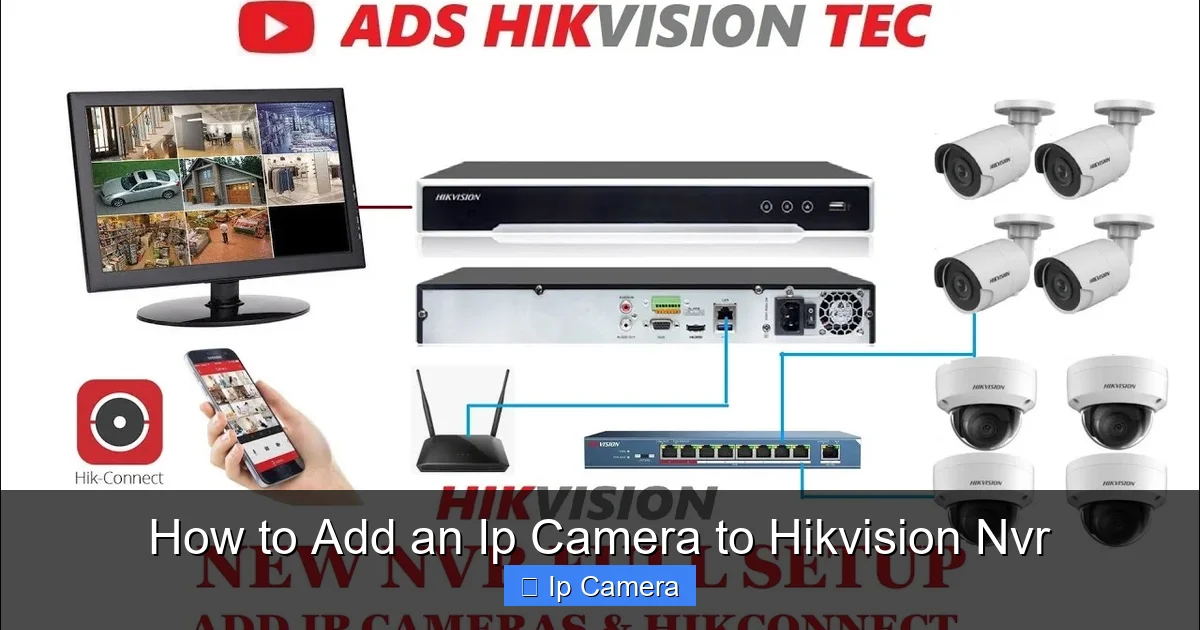

Visual guide about How to Add an Ip Camera to Hikvision Nvr
Image source: i.ytimg.com
- Hikvision NVR (e.g., DS-7608NI-I2/8P, DS-9632NI-I8)
- Compatible IP camera(s) — Ensure they support ONVIF Profile S or are listed in Hikvision’s compatibility matrix
- Ethernet cable(s) — Cat5e or Cat6 recommended (minimum 100 feet max length without signal boosters)
- Power adapter(s) — Most PoE (Power over Ethernet) cameras get power via the NVR, but non-PoE models need separate power
- Network switch (optional) — If your NVR has limited LAN ports or you’re adding many cameras
- Computer or mobile device — For initial configuration and testing
- Monitor and mouse — To connect directly to the NVR during setup
💡 Pro Tip: Always check Hikvision’s official compatibility list before purchasing cameras. Mixing brands can sometimes cause issues, though ONVIF-compliant devices usually work well.
Step 1: Physical Installation – Wiring Your Cameras
Connect the Camera to Power and Network
The first physical step is ensuring your IP camera receives both power and data. Here’s how:
- Plug in the camera’s power supply (if not PoE). Look for a label like “DC 12V” or “PoE+” on the camera or documentation.
- Run an Ethernet cable** from the camera to an available port on your NVR or network switch.
- For PoE cameras:** No extra power needed—just connect the Ethernet cable. The NVR will deliver both data and power through the same wire.
- Mount the camera securely** using the included bracket. Adjust the angle so it captures the desired area clearly.
⚠️ Important: Never force a cable into the RJ45 port. Make sure it clicks in firmly but gently.
Example Setup Diagram
Imagine you’re installing two outdoor dome cameras near your front door and garage. You’d:
- Mount Camera 1 above the front entrance, pointing south.
- Mount Camera 2 at the side of the garage, angled toward the driveway.
- Run Cat6 cables back to your basement where the NVR is located.
- Label each cable (e.g., “Front Door,” “Garage”) for easy identification later.
Step 2: Power On the NVR and Access the Interface
Once all cameras are wired, it’s time to turn things on:
- Connect the NVR to power using its provided adapter.
- Link the NVR to your router or modem** via one of its LAN ports. This enables internet access and remote viewing.
- Attach a monitor and mouse** to the HDMI/VGA port on the NVR.
- Turn on the NVR.** It will boot up and display the login screen within 30–60 seconds.
Log Into the NVR System
You’ll see a login prompt asking for:
- Username:** Usually “admin”
- Password:** Often blank by default (press Enter), but some models require setting a password on first boot
After logging in, you’ll enter the main menu—a familiar interface with tabs like “Live View,” “Playback,” and “Configuration.”
Step 3: Search for and Detect New Cameras
Now comes the magic: telling the NVR to look for your newly connected IP cameras.
Use Auto-Discovery (Recommended)
Hikvision NVRs include a powerful tool called Auto-Search that scans your local network for compatible devices.
- In the main menu, go to Configuration > Camera > Auto-Search.
- Click Start Search. The system will ping all devices on the subnet.
- Detected cameras appear in the list with details like IP address, model, and status.
- Select the cameras you want to add and click Add.
If the camera doesn’t show up, try clicking Refresh or manually entering its IP address (more on that below).
Manual Entry (When Auto-Search Fails)
Sometimes cameras aren’t found automatically due to firewall rules or mismatched subnets. Here’s how to add them manually:
- Open your computer’s command prompt (Windows) or terminal (Mac/Linux).
- Type
ping [camera-IP](replace with actual IP) to test connectivity. - If successful, go back to the NVR > Auto-Search > Manual Input.
- Enter the camera’s IP address, port (usually 80), username, and password.
- Click Test Connection. If green light appears, click Add.
🔧 Troubleshooting Note: If the test fails, double-check:
– Is the camera powered on?
– Is it on the same network segment as the NVR?
– Are the login credentials correct?
Step 4: Configure Camera Settings
After adding, fine-tune each camera for best performance:
Adjust Basic Parameters
Navigate to Camera > Edit > Advanced > Basic Parameters:
- Resolution:** Choose 1080p, 4K, or higher based on your storage budget and needs.
- Frame Rate:** 25 fps (NTSC) or 30 fps (PAL) is standard; lower values save space.
- Bitrate Type:** VBR (variable) offers better quality under load; CBR (constant) keeps file sizes predictable.
Set Up Motion Detection (Optional but Useful)
Enable smart alerts to record only when activity occurs:
- Go to Event > Motion Detection > Area Selection.
- Draw zones over important areas (avoid trees or moving shadows).
- Adjust sensitivity and schedule recording times.
Step 5: Test and Verify Everything Works
Before finishing, run a quick test:
- Switch to Live View on the NVR monitor.
- Confirm all cameras display live video with good clarity and no flickering.
- Check audio (if supported) by speaking near the mic-equipped camera.
- Try pausing, zooming (digital), and switching between channels smoothly.
🎉 Success! Your IP cameras are now part of your Hikvision NVR system.
Advanced Tips for Better Integration
Want even more control? Try these pro-level tweaks:
- Assign Static IPs: Avoid DHCP conflicts by reserving fixed addresses for cameras via your router or NVR’s DHCP server.
- Update Firmware: Go to System > Maintenance > Upgrade to install latest versions—this fixes bugs and adds features.
- Enable Remote Viewing: Set up Hik-Connect app or iVMS-4200 software for smartphone alerts and off-site access.
- Configure Alerts: Send email/SMS when motion is detected or storage gets low.
Troubleshooting Common Issues
Even experienced users hit snags. Here’s how to fix frequent problems:
Camera Not Detected?
- ✅ Reboot both camera and NVR.
- ✅ Confirm Ethernet cable is fully inserted and undamaged.
- ✅ Check if the camera appears in your router’s connected devices list.
- ✅ Disable any third-party firewalls temporarily during setup.
Blurry or Laggy Video?
- ✅ Reduce resolution or frame rate.
- ✅ Shorten cable length or use shielded cables outdoors.
- ✅ Ensure your internet upload speed supports remote streaming (min 2 Mbps per camera).
Login Failures or Lockouts?
- ✅ Reset the NVR admin password using hardware buttons (refer to manual).
- ✅ Use factory defaults if you forgot credentials.
Conclusion: You’re All Set!
Adding an IP camera to Hikvision NVR transforms basic surveillance into a smart, responsive security system. With clear steps—from wiring to configuration—you’ve successfully integrated high-definition video feeds, intelligent alerts, and remote monitoring capabilities. Whether protecting your family, business, or property, this setup gives you professional-grade results without the complexity.
Remember: regular maintenance (like firmware updates and cable checks) keeps your system running smoothly. And don’t hesitate to explore advanced features like AI analytics or cloud backups once your core setup is solid.
Ready to expand? Add more cameras, integrate smart locks, or connect to a central monitoring service. The possibilities grow with your network.
