Configuring an IP camera is easier than you think! This guide walks you through every step—from unboxing to live viewing—so you can protect your space with confidence. Whether you’re a beginner or tech-savvy, we’ve got simple instructions, troubleshooting help, and pro tips to make the process smooth and stress-free.
Quick Answers to Common Questions
Tip: Use a Static IP for Easier Management
Assigning a static IP to your camera prevents it from changing after reboots, making remote access and troubleshooting much simpler.
Question? Can I view my camera without port forwarding?
Yes! Many cameras support P2P (peer-to-peer) technology. Just scan the QR code with your mobile app—no router changes needed.
Tip: Enable Two-Way Audio for Intercoms
Great for pet owners or delivery confirmation. Speak through the camera’s speaker while seeing the person at your door.
Question? How do I stop my camera from being hacked?
Use strong passwords, disable unused services like FTP or email alerts, and never leave default credentials unchanged.
Tip: Schedule Recordings to Save Space
Set motion-only recording or schedule off-hours recording to reduce storage usage and avoid filling your SD card.
How to Config IP Camera: A Complete Step-by-Step Guide
Setting up an IP camera doesn’t have to be intimidating. Whether you’re installing one for home security, monitoring your store, or keeping an eye on pets, understanding how to config ip camera properly ensures reliable performance and peace of mind. This guide breaks down the entire process into simple steps—no technical jargon, just clear directions.
By the end of this guide, you’ll know how to connect your camera to your network, access its settings, configure recording options, enable remote viewing, and keep everything secure. Let’s get started!
What Is an IP Camera?
An IP camera, or Internet Protocol camera, captures video and sends it over a network or the internet. Unlike traditional analog cameras, IP cameras digitize video at the source, offering higher resolution, better image quality, and advanced features like motion detection and two-way audio.

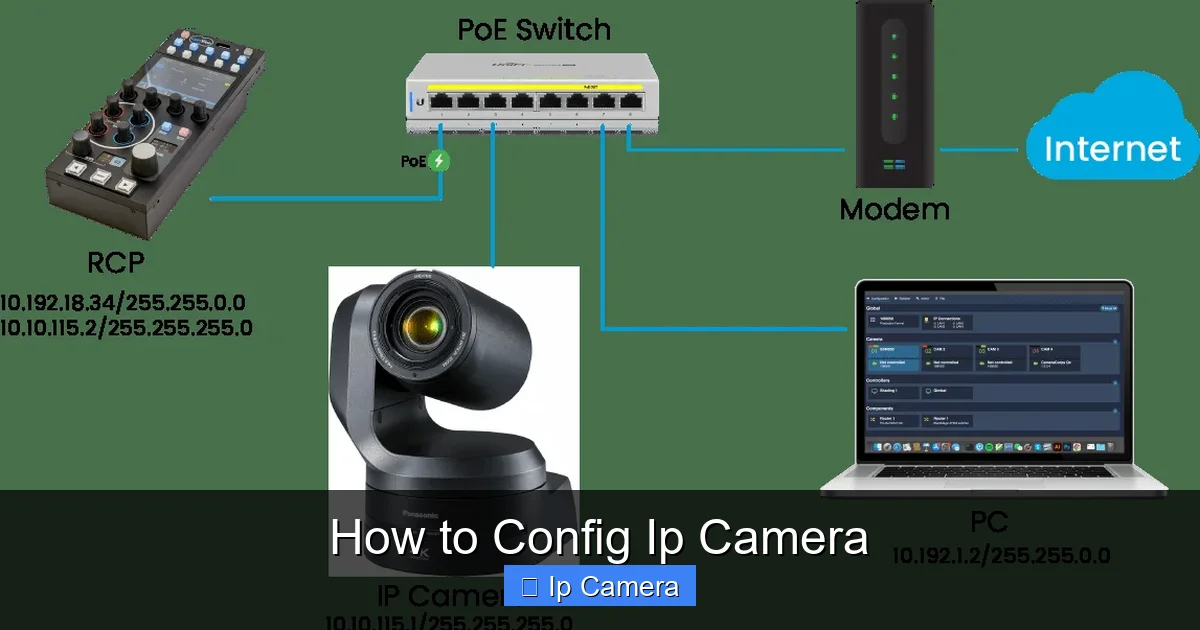

Visual guide about How to Config Ip Camera
Image source: free-template-download.net
These cameras are commonly used in homes, offices, retail stores, warehouses, and even smart city projects. They can be wired (using Ethernet cables) or wireless (Wi-Fi enabled), making them flexible for various environments.
Before You Begin: What You’ll Need
Before diving into the configuration process, gather these essentials:
- A compatible IP camera (wired or wireless)
- Ethernet cable (for initial setup if using PoE or wired connection)
- Computer, smartphone, or tablet with internet access
- Router with available LAN ports or Wi-Fi capability
- Manufacturer’s software or app (e.g., Hikvision iVMS, Dahua DMSS, Amcrest View Pro)
- Default login credentials (usually found on a label or in the manual)
- Optional: MicroSD card for local storage
Tip: If you’re unsure which model you have, check the packaging or look for branding like Hikvision, Dahua, Reolink, or Amcrest.
Step 1: Physical Installation of the IP Camera
The first step in how to config ip camera is proper placement and mounting. Follow these guidelines:
Choose the Right Location
Position the camera where it has a clear view of the area you want to monitor. Avoid direct sunlight, rain exposure, or obstructions like trees or walls. For outdoor cameras, ensure they’re weatherproof and securely mounted.
Connect Power and Network
- Wired (PoE or Ethernet): Use an Ethernet cable to connect the camera to your router or PoE switch. Power will flow through the cable.
- Wireless (Wi-Fi): Plug in the camera using the included power adapter. Wait for the indicator light to show it’s powered on.
For most setups, it’s best to start with a wired connection during initial configuration. Once everything works locally, you can switch to wireless if preferred.
Step 2: Find the Camera’s IP Address
To config ip camera, you need to locate its IP address. This is how your computer communicates with it on the network.
Method 1: Check the Label or Manual
Many IP cameras come with a default IP address printed on a sticker (e.g., 192.168.1.108). This is often the case with models using P2P or cloud setups.
Method 2: Use Router Admin Panel
- Log in to your router’s admin page (usually 192.168.1.1 or 192.168.0.1).
- Look under “Connected Devices” or “DHCP Client List.”
- Find your camera by name or MAC address.
- Note its assigned IP address.
Method 3: Use IP Scanner Software
Download tools like Advanced IP Scanner or Angry IP Scanner. Scan your network and look for devices matching your camera brand. Double-click to open the device info.
Example: If your camera shows up as “Reolink-XXXX,” its IP might be 192.168.1.105.
Step 3: Access the Camera’s Web Interface
Now that you have the IP address, let’s log in and begin configuration.
Open a Web Browser
Type the IP address into your browser’s address bar (Chrome, Firefox, Edge). Press Enter.
Enter Login Credentials
Default username and password are usually “admin/admin” or “admin/12345.” Change these immediately after logging in for security.
Troubleshooting Login Issues
- If the page won’t load, confirm the IP is correct and both devices are on the same network.
- Clear browser cache or try incognito mode.
- Reset the camera by holding the reset button for 10 seconds.
Step 4: Configure Basic Settings
Once logged in, you’ll see a dashboard with tabs like “Configuration,” “Network,” “Video,” and “Event.”
Set Up Date & Time
Incorrect time causes issues with recordings and cloud sync. Enable NTP (Network Time Protocol) and select your time zone.
Adjust Video Quality
- Resolution: Choose 1080p or higher for clarity.
- Frame Rate: 15–30 fps balances quality and bandwidth.
- Bitrate: Higher = better quality but uses more storage.
Configure Audio (If Supported)
Enable microphone and speaker settings if your camera supports two-way talk. Test by speaking into the mic and checking the audio output.
Step 5: Network Configuration
This section determines how your camera connects to the internet and other devices.
Static vs. Dynamic IP
- Dynamic IP (DHCP): Most common. The router assigns an IP automatically.
- Static IP: Manually set an IP outside the DHCP range to avoid conflicts. Useful for remote access.
Port Forwarding (For Remote Access)
To view your camera from outside your home network:
- Log in to your router.
- Find “Port Forwarding” or “Virtual Server” settings.
- Add a rule:
- Service Name: Camera
- Internal IP: Your camera’s IP (e.g., 192.168.1.105)
- External Port: 8000 (or custom)
- Internal Port: 8000
- Protocol: TCP/UDP
- Save and test using the external IP or domain.
Warning: Port forwarding exposes your camera to the internet. Use strong passwords and consider a dynamic DNS (DDNS) service like No-IP or Dynu.
Alternative: Use P2P or Cloud Services
Many modern cameras support Plug-and-Play via P2P. Scan a QR code with your phone app, and the camera connects automatically to the cloud. This avoids complex port forwarding.
Step 6: Set Up Motion Detection and Alerts
Motion detection saves storage and notifies you of activity.
Enable Motion Detection
- Go to “Event” > “Motion Detection.”
- Draw zones on the video preview where you want detection.
- Sensitivity: Adjust slider (low, medium, high).
Configure Notifications
- Email alerts: Enter SMTP server details (Gmail, Outlook, etc.).
- Push notifications: Link to mobile app (iOS/Android).
- FTP upload: Save snapshots to a remote server.
Schedule Detection
Set times when motion detection is active (e.g., only at night or during business hours).
Step 7: Configure Recording Options
Decide where and how long videos are stored.
Local Storage (MicroSD Card)
- Insert a Class 10 or higher SD card (max 256GB recommended).
- Format in-camera if prompted.
- Set loop recording to overwrite old files.
Cloud Storage
Some cameras offer free or paid cloud plans (e.g., Reolink Cloud, Hik-Connect). Benefits include off-site backup and remote playback.
NVR (Network Video Recorder)
For multiple cameras, connect to an NVR. It manages recordings, displays live feeds, and offers advanced analytics.
Step 8: Test and Optimize Performance
After setup, run tests to ensure everything works smoothly.
Check Live View
Open the camera feed on your browser or app. Look for lag, pixelation, or dropped frames.
Verify Night Vision
Turn off lights and check IR illumination. Adjust focus if images are blurry.
Test Two-Way Audio
Speak through the camera and confirm the other end hears you clearly.
Monitor Bandwidth Usage
High-resolution streams can slow your network. Reduce bitrate or use lower resolution during peak hours.
Step 9: Secure Your IP Camera
Security is critical. Follow these best practices:
- Change default usernames and passwords.
- Disable UPnP if not needed (prevents automatic port opening).
- Enable HTTPS for encrypted access.
- Regularly update firmware.
- Use a separate VLAN or guest network for IoT devices.
Example: If your camera supports RTSP, disable it unless required. It can expose your stream to hackers.
Troubleshooting Common IP Camera Issues
Camera Not Showing Up on Network
- Restart the camera and router.
- Check Ethernet/Wi-Fi connection.
- Ensure no IP conflict exists.
Can’t Access Web Interface
- Confirm the IP address is correct.
- Try accessing from another device.
- Reset the camera and reconfigure.
No Video Feed
- Check power and network lights.
- Verify firewall isn’t blocking the port.
- Test with a different browser or device.
Intermittent Connectivity
- Weak Wi-Fi signal? Move closer to router or add a repeater.
- Overloaded network? Limit streaming during busy times.
Conclusion: You’re All Set!
Configuring an IP camera is a straightforward process when broken into clear steps. From physical installation to remote access, each part builds on the last. By following this guide, you’ve learned how to config ip camera safely and effectively—ensuring your property stays protected with high-quality surveillance.
Remember: regular maintenance, firmware updates, and strong security habits keep your system running flawlessly. And if you ever hit a snag, revisit the troubleshooting section or consult your camera’s user manual.
Now go ahead—install, monitor, and rest easy knowing you’ve mastered the art of IP camera configuration!
