Connecting a Dahua IP camera to a Hikvision NVR may seem tricky, but it’s absolutely possible with the right approach. This guide walks you through network configuration, ONVIF settings, and video management software to help you integrate both systems smoothly. Whether you’re upgrading your security setup or consolidating gear, we’ve got you covered.
Quick Answers to Common Questions
Tip/Question?
Answer: Can I connect any Dahua camera to any Hikvision NVR? Not necessarily. Only Dahua cameras with ONVIF support and Hikvision NVRs that allow third-party devices can be connected. Older models may lack this capability.
Tip/Question?
Answer: Do I need to change the Dahua camera’s IP address? It’s recommended to assign a static IP to avoid conflicts, but as long as both devices are on the same network and can communicate, dynamic IPs (DHCP) will work too.
Tip/Question?
Answer: Why does my Hikvision NVR show “Authentication Failed” when adding the Dahua camera? This usually means incorrect login credentials. Double-check the username and password—some Dahua models require the ONVIF user to be created separately.
Tip/Question?
Answer: Is ONVIF the only way to connect Dahua to Hikvision? Yes, ONVIF is the standard method. RTSP can be used as a fallback, but ONVIF provides better metadata and control features.
Tip/Question?
Answer: What if auto-discovery doesn’t find my camera? Try manual addition using the camera’s IP, ONVIF port (default 80), and correct credentials. You can also use tools like ONVIF Device Manager to test connectivity.
How to Connect Dahua IP Camera to Hikvision NVR: A Complete Guide
If you’re upgrading your home or business surveillance system, you might find yourself in a situation where you have a Dahua IP camera but an Hikvision NVR—two leading brands that don’t always play nicely together out of the box. But don’t worry! With the right steps, you can successfully integrate your Dahua camera into your Hikvision NVR setup and enjoy unified video monitoring, recording, and alerts.
In this detailed guide, we’ll walk you through everything you need to know to connect your Dahua IP camera to your Hikvision NVR. From checking compatibility and preparing your network to configuring settings and troubleshooting common issues, we’ve got you covered. Whether you’re a beginner or a tech-savvy installer, this step-by-step guide will help you get your system running smoothly.
Why Would You Want to Do This?
Many users choose to mix brands for cost savings, legacy equipment, or simply because they already own one brand but need features from another. While both Dahua and Hikvision offer high-quality cameras and reliable NVRs, their proprietary software and protocols often prevent seamless integration. However, thanks to industry standards like ONVIF, cross-brand connections are not only possible—they’re becoming more common.
By connecting a Dahua camera to an Hikvision NVR, you gain benefits such as:
- Centralized video management
- Unified recording and playback
- Simplified user interface
- Easier remote access via mobile apps
Step 1: Verify Compatibility and Requirements
Check ONVIF Support
The first thing to confirm is whether your Dahua camera supports ONVIF (Open Network Video Interface Forum), which is essential for cross-brand communication. Most modern Dahua cameras do, especially those released after 2015, but older models may require firmware updates or even replacement.

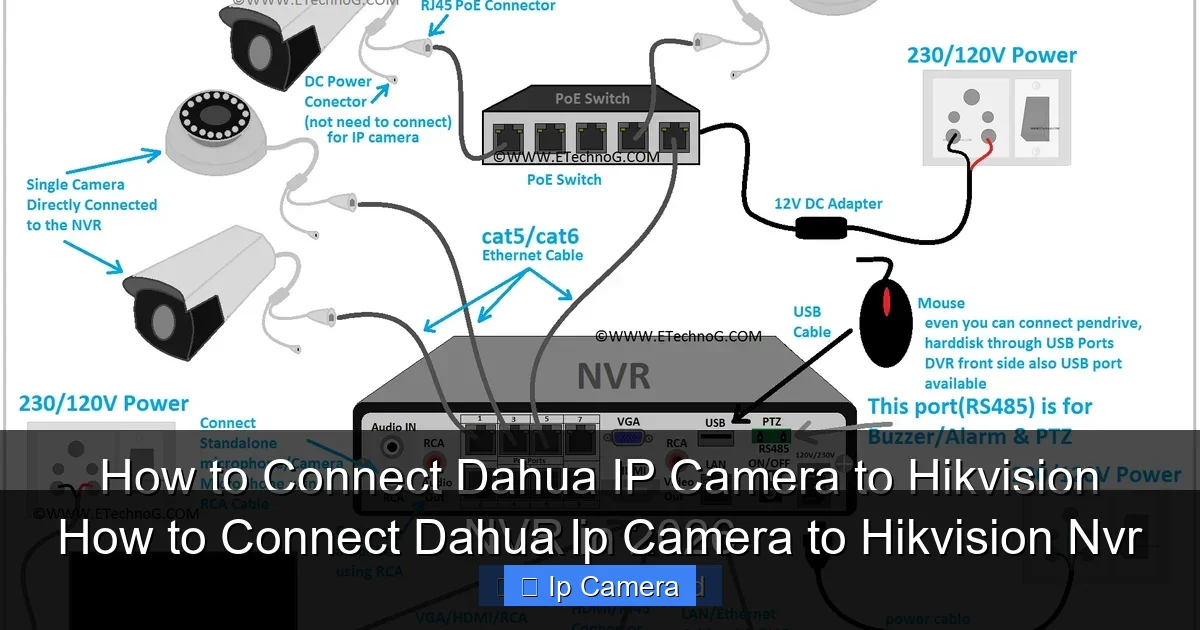

Visual guide about How to Connect Dahua Ip Camera to Hikvision Nvr
Image source: surveillanceguides.com
To check ONVIF support:
- Log in to your Dahua camera’s web interface (usually via its IP address in a browser).
- Navigate to Configuration > Advanced Configuration > Network > ONVIF.
- Ensure ONVIF is enabled. If it’s disabled, turn it on and save the settings.
Confirm Your Hikvision NVR Supports Third-Party Cameras
Not all Hikvision NVRs allow third-party camera addition. Most modern Hikvision models—especially those running iVMS-4200 or newer firmware—do support ONVIF cameras, but it’s best to verify.
Go to your NVR’s menu and look for:
- Configuration > Camera > Add Device
- If you see options like “Auto Detect” or “Manual Add,” your NVR is compatible.
Prepare Your Network
For the camera and NVR to communicate, they must be on the same local network. Here’s what to do:
- Connect both devices to the same router or switch.
- Assign static IP addresses to avoid conflicts (or ensure DHCP is stable).
- Disable any firewalls or security groups that might block port 80, 554 (RTSP), or 37777 (ONVIF).
Step 2: Configure the Dahua Camera
Access the Camera’s Web Interface
Open a web browser and enter your Dahua camera’s IP address (e.g., http://192.168.1.100). Log in using the admin username and password. If you’ve forgotten these, reset the camera or consult the device label.
Enable ONVIF Service
This is crucial for discovery by the Hikvision NVR.
- Go to Configuration > Advanced Configuration > Network > ONVIF.
- Turn ONVIF service Enabled.
- Set a username and password for ONVIF access (use the same as your camera login if prompted).
- Save settings and reboot the camera if required.
Set Up RTSP Stream (Optional but Recommended)
Even if ONVIF works, having an RTSP stream ensures better compatibility. Dahua cameras typically support RTSP on port 554.
To enable or verify RTSP:
- Go to Configuration > Advanced Configuration > Network > Protocol.
- Ensure RTSP is enabled.
- Note the RTSP URL format:
rtsp://[username]:[password]@[IP]:554/[channel]/[subtype] - Example:
rtsp://admin:mypassword@192.168.1.100/1/h264
Step 3: Add the Dahua Camera to Your Hikvision NVR
Access the NVR’s Management Interface
Use the monitor connected to your NVR or access it remotely via the Hikvision mobile app (HiLook) or web client.
Start Auto-Discovery
- Go to Menu > Configuration > Camera > Add Device.
- Click Auto Detect or Search.
- Wait for the NVR to scan the network. It should find your Dahua camera if ONVIF is active.
- If found, select the camera and click Add.
Manual Addition (If Auto-Detect Fails)
If the camera doesn’t appear, try adding it manually:
- Click Manual Add.
- Enter the following details:
- Device Type: ONVIF
- IP Address: Camera’s IP (e.g., 192.168.1.100)
- Port: 80 or 8000 (default ONVIF ports)
- Username: Admin
- Password: Your camera password
- Test connection and click OK.
Verify Video Feed
Once added, the camera should appear in the NVR’s live view. Click on it to confirm video is streaming. You may need to adjust resolution or frame rate under Camera Settings if the feed is choppy.
Step 4: Optimize and Secure the Setup
Update Firmware
Outdated firmware can cause compatibility issues. Check for updates on both devices:
- Dahua: Visit dahuasecurity.com and download firmware for your model.
- Hikvision: Use the HiTools software or visit hikvision.com.
Change Default Credentials
Never leave default usernames and passwords. Update them immediately to prevent unauthorized access.
Use Strong Encryption
Enable HTTPS on the NVR and use encrypted protocols like TLS for ONVIF and RTSP over SSL if supported.
Configure Recording and Alerts
Set motion detection, recording schedules, and email/SMS alerts through the NVR interface for full functionality.
Troubleshooting Common Issues
Camera Not Detected by NVR
If the camera doesn’t show up:
- Double-check ONVIF is enabled on the Dahua camera.
- Verify both devices are on the same subnet (e.g., 192.168.1.x).
- Ping the camera from the NVR’s network to test connectivity.
- Try restarting both devices.
Black Screen or No Video
This usually means authentication failed or the stream path is wrong.
- Re-enter credentials carefully (case-sensitive).
- Try using the RTSP URL directly in VLC Media Player to test the stream.
- Ensure the Dahua camera isn’t set to exclusive mode or restricted access.
Choppy or Lagging Video
Reduce bandwidth usage:
- Lower the resolution in the NVR’s camera settings.
- Switch from H.265 to H.264 if the NVR struggles with compression.
- Ensure your network has enough bandwidth—avoid Wi-Fi if possible.
Authentication Failed
This error occurs when the NVR can’t log in to the camera.
- Confirm the username/password match exactly.
- Some Dahua models require the ONVIF username to be different—create a new user in the camera’s web UI.
- Reset the camera and reconfigure from scratch.
Alternative Methods: Using Third-Party VMS
If direct NVR integration proves too difficult, consider using a third-party Video Management System (VMS) like:
- Milestone XProtect: Supports both Dahua and Hikvision cameras natively.
- Blue Iris: Affordable, flexible, and great for hybrid setups.
- Synology Surveillance Station: Ideal for Synology NAS users.
These platforms act as a bridge, allowing you to manage all cameras—regardless of brand—from one interface. They also offer advanced features like analytics, AI detection, and cloud backup.
Conclusion
Connecting a Dahua IP camera to an Hikvision NVR is entirely achievable with the right preparation and configuration. By leveraging ONVIF, ensuring proper network settings, and updating firmware, you can create a powerful, unified surveillance system that combines the strengths of both brands.
While there are some limitations and occasional compatibility hiccups, the benefits of centralizing your video feeds, simplifying management, and reducing hardware redundancy make this integration worthwhile. And remember—if direct NVR pairing doesn’t work, third-party VMS solutions offer excellent alternatives.
With this guide, you now have the knowledge to confidently link your Dahua camera to your Hikvision NVR and enjoy seamless, professional-grade security monitoring.
