How to Connect Foscam Ip Camera

How to Connect Foscam Ip Camera

by

Connecting a Foscam IP camera is simpler than you think! Whether you’re setting up for home security or monitoring your business, this guide walks you through plugging in your camera, connecting it to Wi-Fi, and accessing live video from anywhere. With clear steps and troubleshooting tips, you’ll have your camera running in under 20 minutes—no technical background required.

Quick Answers to Common Questions

Can I use my Foscam camera without the app?

Yes! You can view live footage directly through your web browser by entering the camera’s IP address. Just log in with your credentials, and you’ll see the video stream—no app required.

How do I improve Wi-Fi signal strength for my Foscam camera?

Place the camera closer to your router, remove physical obstructions, or use a Wi-Fi extender. For best results, switch to Ethernet during setup and once stable.

Is my Foscam camera compatible with Google Assistant or Alexa?

Some newer Foscam models support voice control via third-party integrations, but not all. Check your model’s specs on Foscam’s website. You can also cast the video feed to Chromecast if supported.

What’s the difference between Foscam Cloud and local storage?

Cloud stores recordings online (accessible anytime, but requires subscription). Local storage uses microSD cards or FTP servers (more private, but limited by card size). Use both for redundancy!

How often should I update my Foscam firmware?

At least once every 3–6 months, or immediately after Foscam announces a security patch. Updates fix bugs, add features, and close vulnerabilities.

How to Connect Foscam IP Camera: A Simple Step-by-Step Guide

You just got a new Foscam IP camera—congratulations! Now comes the fun part: getting it up and running so you can see what’s happening in real time, whether you’re at home, work, or on vacation. Don’t worry if the process seems technical at first. This guide breaks everything down into easy, bite-sized steps. By the end, you’ll know how to connect your Foscam IP camera, view live footage, set up motion alerts, and access your camera securely from any device.

We’ll cover everything from unboxing to advanced remote access. Whether you’re using an older model like the FI9851P or a newer one like the FI9900P, these instructions apply to most Foscam cameras. Ready? Let’s get started!

What You’ll Need Before You Begin

Before diving in, make sure you have these items ready:

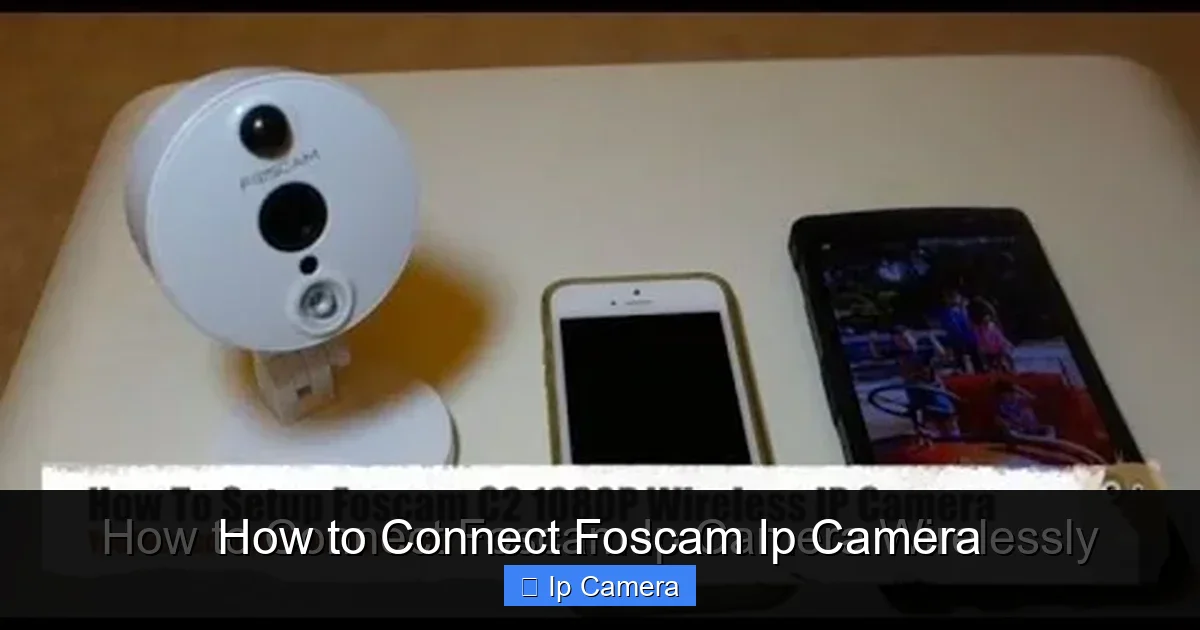

How to Connect Foscam Ip Camera

Visual guide about How to Connect Foscam Ip Camera

Image source: surveillanceguides.com

  • A working internet connection (Wi-Fi or wired)
  • The Foscam camera (obviously!)
  • A power adapter (included with most models)
  • An Ethernet cable (optional but recommended for initial setup)
  • A computer or smartphone with internet access
  • Your router’s login credentials (if you need to access the admin panel)

Pro tip: If you’re setting up over Wi-Fi, place your camera within range of your router during installation. Once connected, you can move it later if needed.

Step 1: Power On the Camera

Start by plugging the Foscam camera into a power outlet using the included adapter. Most Foscam models use a standard DC barrel connector, so it should snap right in. Once powered, the status light on the camera will turn on—usually solid green when ready, or blinking if still initializing.

What to Expect During Boot-Up

After powering on, the camera takes about 30 seconds to fully start up. You’ll hear a brief chime (on some models), and the LED may blink blue and green during this time. Wait until the light becomes steady before proceeding.

Step 2: Connect the Camera to Your Network

There are two main ways to connect your Foscam IP camera: via Ethernet cable or wirelessly. For the first setup, we recommend using an Ethernet cable. It’s more reliable and helps avoid Wi-Fi signal issues later.

Option A: Wired Connection (Recommended)

  1. Plug one end of the Ethernet cable into the camera’s LAN port.
  2. Plug the other end into an open port on your router or modem.
  3. Wait 30–60 seconds for the camera to register on the network.

Now your camera is physically connected and visible to your network.

Option B: Wireless (Wi-Fi) Setup

  1. Ensure your camera is close enough to the Wi-Fi router for a strong signal (typically within 30 feet).
  2. Press and hold the reset button (usually on the side or bottom) for 5 seconds to enter Wi-Fi pairing mode (LED blinks rapidly).
  3. Download the Foscam mobile app (available here) and create an account if you don’t already have one.
  4. Open the app, tap “+” to add a device, select “Wi-Fi Setup,” and follow the prompts to scan for available networks.
  5. Select your home Wi-Fi network and enter the password when prompted.
  6. The app will push the connection settings to the camera. Wait for confirmation (LED turns solid green).

Note: Some older Foscam models require you to connect to the camera’s temporary hotspot first. Check your manual if this applies.

Step 3: Find the Camera’s IP Address

To access your camera’s settings, you need its IP address—the digital home address that lets your computer talk to it on the network. Here’s how to find it:

Method 1: Use Foscam’s Device Search Tool

  1. Visit findfoscam.com on the same computer connected to the same network as your camera.
  2. Click “Search for Devices.” The tool will scan and display all active Foscam cameras on your network.
  3. Write down the camera’s IP address, username (default is usually “admin”), and password (default is often blank or “admin”).

Method 2: Check Your Router’s Admin Panel

  1. Open a web browser and type your router’s IP (commonly 192.168.1.1 or 192.168.0.1).
  2. Log in with your router’s username and password.
  3. Navigate to “Connected Devices,” “DHCP Clients,” or “Attached Devices.”
  4. Look for a device named “Foscam” or with a MAC address starting with F8:XX:XX (common Foscam prefix).
  5. Copy the associated IP address.

💡 Pro Tip: If you can’t find your Foscam in the router list, try disconnecting other devices temporarily to isolate it.

Step 4: Access the Camera’s Web Interface

Now that you have the IP address, let’s log in to the camera’s built-in dashboard:

  1. Open a web browser (Chrome, Firefox, Edge, etc.).
  2. Type the camera’s IP address into the address bar and press Enter.
  3. Enter the default login credentials:
    – Username: admin
    – Password: (leave blank) or try “admin”
  4. If prompted, change the password immediately for security.

Once logged in, you’ll see the live video feed and a full menu of settings. From here, you can adjust resolution, motion detection zones, recording schedules, and more.

Step 5: Configure Basic Settings

After logging in, take a few minutes to customize your camera:

Change Video Quality

  1. Go to Setup > Video & Audio.
  2. Adjust Video Resolution (e.g., 1080p for HD, 720p for lower bandwidth).
  3. Set Frame Rate to 15–30 fps depending on your internet speed.
  4. Save changes.

Enable Motion Detection

  1. Navigate to Setup > Event > Motion Detection.
  2. Check Enable and draw zones where motion should trigger alerts (e.g., front door, driveway).
  3. Adjust sensitivity (Low/Medium/High) to reduce false alarms.
  4. Assign actions: send email alert, record to SD card, or upload to FTP.

Set Up Email Alerts

  1. Go to Setup > System > Email.
  2. Fill in SMTP server details (Foscam provides default settings for Gmail, Yahoo, etc.).
  3. Test the connection to ensure emails work.
  4. Return to Event tab and link motion detection to email alerts.

Example: Use Gmail SMTP with App Password (not your regular password) for best results.

Step 6: Use the Foscam Mobile App for Remote Viewing

The easiest way to view your camera remotely is through the Foscam app:

  1. Download the Foscam app from the Apple App Store or Google Play.
  2. Open the app and sign in with the same account used during Wi-Fi setup (or create one).
  3. Tap “+” to add a new device.
  4. Choose Manual Add and enter:
    – Device ID (found in the web interface under Setup > Basic Info)
    – Port (default is 88)
    – Username and password
  5. Tap “Add Device.”

Once added, you’ll see a live view, playback controls, two-way audio, and pan-tilt-zoom (PTZ) features if your model supports it.

Step 7: Enable Remote Access (View from Anywhere)

By default, you can only view your camera when on the same local network. To view remotely (from outside your home), enable remote access:

Option A: Use Foscam Cloud Service (Easiest)

  1. In the web interface, go to Setup > Network > Cloud Service.
  2. Register for a free Foscam Cloud account (if you haven’t).
  3. Link your camera to your cloud account using the Device ID.
  4. Enable Cloud Push and Remote Access.
  5. In the mobile app, your camera will now appear under “Cloud Devices.”

No port forwarding needed! This is the simplest method for most users.

Option B: Manual Port Forwarding (Advanced)

  1. Log in to your router’s admin page.
  2. Find Port Forwarding or Virtual Server settings.
  3. Add a new rule:
    – External Port: e.g., 8000
    – Internal IP: [your camera’s IP]
    – Internal Port: 88 (default Foscam port)
    – Protocol: TCP/UDP
  4. Save and restart the router.
  5. Access remotely via: http://[your-public-IP]:8000 or through DDNS if configured.

⚠️ Warning: Open ports can be risky. Only use port forwarding if you understand security risks and keep firmware updated.

Step 8: Update Firmware for Security and Performance

Outdated firmware can cause bugs or security holes. Always keep your camera updated:

  1. Go to Setup > Maintenance > Upgrade in the web interface.
  2. Click Check for Updates.
  3. If an update is available, click Upgrade Now and wait (do not power off during update).
  4. Repeat every few months or whenever Foscam releases a new version.

Tip: Enable automatic firmware checks in Setup > System > General to stay current.

Troubleshooting Common Connection Issues

Even with perfect instructions, things can go wrong. Here’s how to fix them:

Camera Not Showing Up on Network

  • Check physical connections (power, Ethernet/Wi-Fi).
  • Restart both camera and router.
  • Try the Foscam Device Search Tool again.
  • If using Wi-Fi, ensure signal strength is adequate.

Can’t Log In to Web Interface

  • Verify the correct IP address.
  • Clear browser cache or try incognito mode.
  • Reset camera to factory defaults (hold reset button for 10 sec).
  • Default login: admin / [blank]

Live View Freezes or Buffers

  • Lower video resolution in settings.
  • Close other bandwidth-heavy apps (streaming, downloads).
  • Switch from Wi-Fi to Ethernet if possible.
  • Check your internet speed—Foscam recommends at least 2 Mbps upload for smooth streaming.

Mobile App Won’t Connect

  • Confirm Device ID and port are entered correctly.
  • Ensure cloud service is enabled in web interface.
  • Reboot the camera and app.
  • Update the app to the latest version.

Conclusion: You’re All Set!

Congratulations! You’ve successfully connected your Foscam IP camera and unlocked a world of smart surveillance. Whether you’re watching over your kids’ playroom, deterring porch thieves, or checking on a pet while away, your camera is now your eyes and ears—anytime, anywhere.

Remember: the key to long-term success is regular maintenance—updating firmware, testing connections, and adjusting motion zones as needed. And never skip changing that default password. Security matters.

If you ever get stuck, Foscam’s official support site has detailed manuals and forums. Or reach out to their customer service—they’re responsive and helpful.

Now go enjoy your new level of peace of mind. Your Foscam camera isn’t just a gadget—it’s your personal security team.
