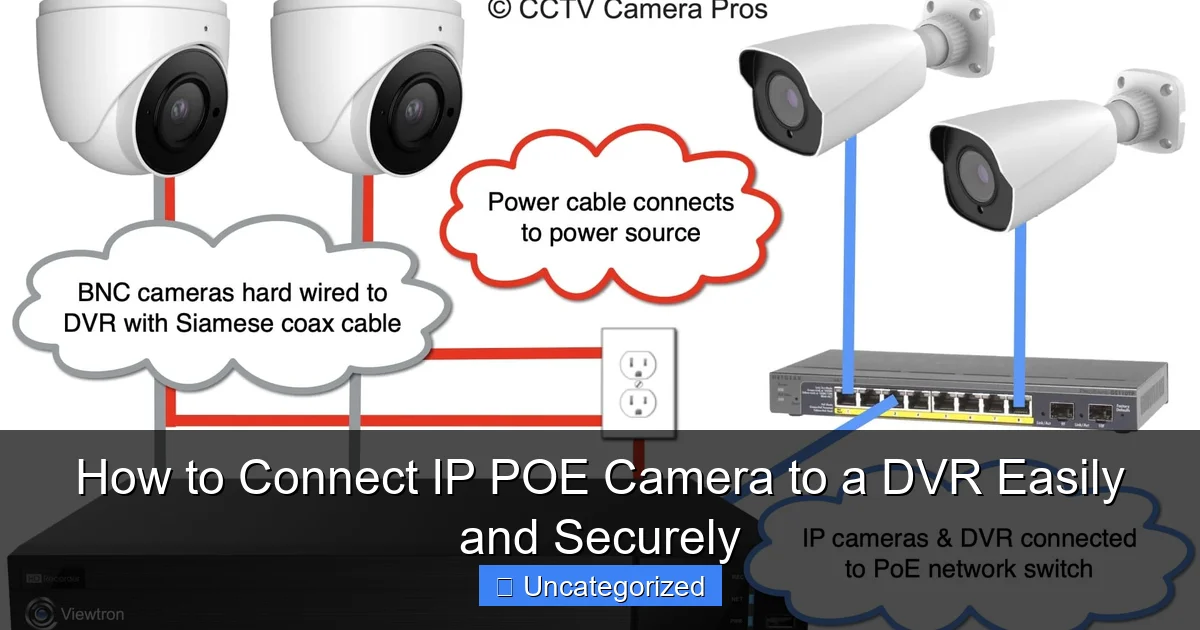

How to Connect IP POE Camera to a DVR Easily and Securely

Key Takeaways

• Use a PoE switch: Power and connect cameras without extra cables.
• Verify DVR compatibility: Ensure it supports IP cameras and PoE.
• Secure network first: Change default passwords and enable encryption.
• Assign static IPs: Prevent address conflicts for stable connections.
• Update firmware: Patch vulnerabilities and improve camera performance.
• Test before finalizing: Confirm video feed and motion detection work.

Why This Matters / Understanding the Problem

Setting up a surveillance system isn’t just about buying cameras and hoping they work. If you’ve invested in IP POE cameras and a DVR, you’re already on the right track—but the real challenge is how to connect IP POE camera to a DVR easily and securely without running into network issues, power problems, or blurry feeds.

Many homeowners and small business owners assume IP cameras only work with NVRs (Network Video Recorders), but that’s not always true. With the right setup, you can integrate IP POE cameras with a hybrid DVR—saving money and using existing equipment. However, misconfiguration can lead to dropped feeds, security vulnerabilities, or cameras that won’t even power on.

This guide walks you through the entire process, from unboxing to live monitoring, with real-world troubleshooting tips. Whether you’re setting up a home security system or upgrading a small office, you’ll learn how to connect IP POE camera to a DVR easily and securely—without needing a degree in networking.

What You Need

Before you start, gather these tools and materials. Having everything ready saves time and avoids mid-process delays.

• IP POE Cameras (e.g., Hikvision, Dahua, Reolink) – Make sure they’re ONVIF-compliant for best compatibility.
• Hybrid DVR (supports IP camera input) – Look for “Hybrid” or “HD-TVI + IP” in the specs.
• POE Switch or POE Injector – A POE switch is better for multiple cameras; an injector works for one.
• Ethernet Cables (Cat5e or Cat6) – Use solid-core cables for permanent runs.
• Router (optional but recommended) – For remote access and cloud features.
• Power Drill & Fish Tape (for installation) – If running cables through walls.
• Network Tester (optional) – To check cable integrity before connecting.
• Computer or Smartphone – For initial configuration and DVR software access.

Pro Tip: Always check your DVR’s maximum IP camera capacity. Some hybrid DVRs support only 4–8 IP cameras alongside analog ones. Overloading it can cause performance issues.

Step-by-Step Guide to How to Connect IP POE Camera to a DVR Easily and Securely

Step 1: Choose the Right DVR and Verify Compatibility

Not all DVRs work with IP POE cameras. You need a hybrid DVR—one that supports both analog (HD-TVI, AHD) and IP cameras. Look for models labeled “Hybrid DVR with IP Camera Support” or “IP + Analog Input.”

Check the DVR’s specifications for:

• Maximum number of IP cameras supported (e.g., 4, 8, 16).
• ONVIF Profile S or G support (ensures standard protocol compatibility).
• POE passthrough capability (some DVRs have built-in POE ports).

Example: A Dahua XVR5104HS-4KL-I3 is a hybrid DVR that supports up to 4 IP cameras and has built-in POE ports. This makes how to connect IP POE camera to a DVR easily and securely much simpler.

Warning: Don’t assume “supports IP cameras” means full integration. Some DVRs only allow IP cameras as an “add-on” with limited features. Always read the manual.

Step 2: Power the Cameras Using a POE Switch or DVR’s Built-in POE

POE (Power over Ethernet) delivers both data and power through a single Ethernet cable. This is key to a clean, cable-free installation.

• If your DVR has built-in POE ports, plug the camera directly into one using a Cat5e/Cat6 cable.
• If it doesn’t, use a POE switch (e.g., 8-port POE switch). Connect the switch to a power outlet, then plug the camera into the switch.
• For a single camera, a POE injector works—connect the injector between the camera and your network (router or DVR).

Once connected, the camera should power on and show activity lights. If not, check the cable length (stay under 100 meters) and use a network tester to verify continuity.

Real-Life Scenario: A user once used a 120-meter cable for a backyard camera. The camera powered on but had constant lag. Trimming to 90 meters fixed it.

Step 3: Connect the POE Switch to the DVR (or Use DVR’s POE Ports)

Now, link the network to your DVR.

• If using a POE switch, connect one of its LAN ports to the DVR’s network port (usually labeled “LAN” or “Ethernet”) using an Ethernet cable.
• If using DVR’s built-in POE, your cameras are already connected—no extra step needed.
• For remote access, connect the DVR to your router using a second Ethernet cable (or use the same port if your DVR supports dual-network).

This creates a local network where the DVR can discover and communicate with the IP cameras. Think of it as a mini “home network” just for your security system.

Pro Tip: Use a separate VLAN or subnet for cameras if you have a managed network. This isolates traffic and improves security.

Step 4: Access the DVR’s Web Interface or On-Screen Menu

Now it’s time to configure the DVR to recognize your IP cameras.

• Connect a monitor (HDMI/VGA) and keyboard/mouse to the DVR, or access it remotely via a web browser.
• Log in using the DVR’s default credentials (check the manual—often admin/123456 or admin/admin).
• Navigate to Camera Management > IP Camera Setup (the exact menu varies by brand).

You’ll see options like “Add IP Camera,” “Auto Search,” or “Manual Add.” Start with “Auto Search”—the DVR will scan the local network for connected IP cameras.

Warning: Never skip changing the default password. Hackers target DVRs with default logins—this is crucial for how to connect IP POE camera to a DVR easily and securely.

Step 5: Add the IP Camera to the DVR

The DVR should detect your camera(s). Here’s how to add them:

• Click Auto Search. Wait 30–60 seconds. The DVR will list found IP cameras.
• Select your camera(s) and click Add. The DVR will assign it a channel (e.g., Channel 5).
• If auto search fails, use Manual Add:
  • Enter the camera’s IP address (find it via the camera’s mobile app or a network scanner).
  • Enter the camera’s login credentials (usually admin/123456).
  • Set the protocol to ONVIF (recommended) or RTSP.

Once added, the camera feed should appear on the DVR’s live view screen. If it shows “No Signal” or “Connection Failed,” proceed to Step 6.

Pro Tip: Use a static IP for the camera (not DHCP) to prevent IP conflicts if the router reboots.

Step 6: Troubleshoot Connection Issues

Don’t panic if the camera doesn’t show up. Here are common fixes:

• Check IP Conflict: Two devices with the same IP won’t work. Use a network scanner (e.g., Advanced IP Scanner) to find duplicates. Change the camera’s IP via its web interface.
• Verify Subnet: DVR and camera must be on the same subnet (e.g., 192.168.1.x). If the DVR is 192.168.1.100, the camera should be 192.168.1.101.
• Firewall/NAT Issues: Disable the camera’s built-in firewall temporarily. Some DVRs can’t connect if the camera blocks “unknown” devices.
• ONVIF Not Enabled: Log into the camera’s web interface and enable ONVIF under Network > Advanced.
• Firmware Mismatch: Update both DVR and camera firmware. Outdated firmware often causes compatibility issues.

Example: A user’s Reolink camera wouldn’t connect. After checking, the DVR was on 192.168.0.x, but the camera was on 192.168.1.x. Changing the camera’s IP fixed it.

Step 7: Configure Video Settings and Motion Detection

Now that the camera is connected, optimize the feed.

• Resolution & FPS: Set to 1080p or 4K (if supported). Lower FPS (15–20) saves storage; higher (30) captures fast motion.
• Motion Detection: Enable in the DVR or camera settings. Draw a detection zone (e.g., doorway) to avoid false alarms from trees.
• Recording Schedule: Set continuous or motion-based recording. Motion-only saves space but may miss events.
• Night Mode: Enable IR or color night vision if available.

Test by walking in front of the camera. The DVR should trigger recording and show a motion alert.

Step 8: Set Up Remote Access (Optional but Recommended)

Want to check your cameras from your phone? Here’s how:

• Enable DDNS on the DVR (e.g., No-IP, DynDNS). This gives your DVR a permanent web address.
• Forward ports on your router (usually 80, 8000, or 554). Use the DVR’s manual for exact ports.
• Download the DVR’s mobile app (e.g., Hik-Connect, Dahua DMSS).
• Log in with your DDNS address and credentials.

Now you can view live feeds, playback recordings, and receive alerts from anywhere.

Security Warning: Always use strong passwords and enable two-factor authentication (if available) for remote access.

Step 9: Final Checks and Testing

Before calling it done, run these tests:

• Verify all cameras show a stable feed (no flickering or lag).
• Check night vision by covering the camera’s IR sensor.
• Test motion detection with a person or object.
• Ensure recordings are saved (check the DVR’s storage menu).
• Confirm remote access works from a different network (e.g., mobile data).

If everything works, you’ve successfully learned how to connect IP POE camera to a DVR easily and securely.

Pro Tips & Common Mistakes to Avoid

• Use a Network Diagram: Sketch your setup (DVR, switch, router, cameras). This helps troubleshoot later.
• Label Cables: Use tags or color-coded sleeves. “Camera 1,” “Backyard,” etc.
• Don’t Overload POE: Check the POE switch’s total power budget (e.g., 60W). A 4-camera system might need 50W—leave room for future upgrades.
• Secure Your Network: Use WPA3 on your Wi-Fi, disable UPnP on your router, and change default DVR passwords.
• Avoid Daisy-Chaining: Connect each camera directly to the POE switch—don’t chain them. This prevents signal loss.
• Test Before Mounting: Set up the camera indoors first. Confirm it works before drilling holes.

Common Mistake: Assuming “plug-and-play.” IP cameras and DVRs often need manual IP configuration. Auto-search isn’t magic.

Real-World Fix: A user’s camera kept disconnecting. Turns out, the POE switch was unmanaged and didn’t support 802.3af. Switching to a managed POE switch solved it.

FAQs About How to Connect IP POE Camera to a DVR Easily and Securely

Q1: Can I connect IP POE cameras to a regular (non-hybrid) DVR?
No. Standard DVRs only support analog signals (CVBS, HD-TVI). You’ll need a hybrid DVR or convert the IP signal using an encoder (not recommended due to latency).

Q2: Why does my camera show “Offline” even though it’s powered on?
Check: (1) IP address conflict, (2) subnet mismatch, (3) firewall blocking the DVR, or (4) faulty Ethernet cable. Use a network tester to rule out hardware issues.

Q3: Do I need a router if the DVR and cameras are on the same network?
Not for local viewing. But for remote access or cloud features, a router is essential. Even a basic one works.

Q4: What if my DVR doesn’t have ONVIF support?
Use RTSP instead. Enter the camera’s RTSP stream URL (e.g., rtsp://192.168.1.100:554/ch0_0.h264) in the DVR’s manual add section. Find the URL in the camera’s manual.

Q5: How far can I run an Ethernet cable from the POE switch to the camera?
Max 100 meters (328 feet) for reliable POE. Beyond that, use a POE extender or fiber converter.

Q6: Can I mix different camera brands with my DVR?
Yes, if both support ONVIF. But features like AI detection may not work across brands. Stick to one brand for best results.

Q7: Why is my video quality poor or laggy?
Causes: (1) Low bandwidth (upgrade to Cat6 cable), (2) High resolution without enough storage, (3) Network congestion (use QoS on your router), or (4) POE voltage drop (check cable length).

Final Thoughts

Connecting IP POE cameras to a DVR isn’t rocket science, but it does require attention to detail. By following this guide, you’ve learned how to connect IP POE camera to a DVR easily and securely—from choosing the right gear to troubleshooting common hiccups.

Remember: Security starts with setup. Change default passwords, keep firmware updated, and isolate your camera network. A secure system is a reliable system.

Now it’s your turn. Grab your tools, follow the steps, and get your surveillance system up and running. And if you run into issues? Revisit Step 6—most problems have simple fixes. Happy monitoring!

“`
