What Is an NVR Switch and How It Connects Cameras

In today’s security-conscious world, sophisticated surveillance systems are becoming increasingly common, safeguarding homes and businesses alike. If you’ve been exploring modern security camera solutions, you’ve likely come across Network Video Recorders (NVRs) and Internet Protocol (IP) cameras. These systems offer superior image quality and flexibility, but connecting multiple cameras, especially across a large property, can seem like a daunting task. How do all these cameras get power and send their data back to the NVR without a jungle of cables?

The answer often lies in a crucial yet often overlooked component: the NVR switch. This powerful little device acts as the central nervous system for your IP cameras, simplifying installation and ensuring your surveillance system operates smoothly and reliably. Understanding the role of an NVR switch is key to building an efficient and scalable security setup. Let’s dive deep into what an NVR switch is and how it revolutionizes camera connectivity.

Understanding the Core: What Exactly is an NVR Switch?

At its heart, an NVR switch is a specialized type of network switch designed to facilitate the connection and power delivery for IP security cameras to your Network Video Recorder. While a standard network switch simply routes data, an NVR switch typically incorporates Power over Ethernet (PoE) technology, making it uniquely suited for IP camera systems.

Think of it as a central hub where all your IP cameras plug in. Instead of each camera needing its own power adapter and a separate data cable, the NVR switch provides both electricity and network access through a single Ethernet cable. This dual functionality is what makes the NVR switch an indispensable component for any modern IP camera installation, drastically simplifying wiring and reducing infrastructure costs.

The Magic of PoE: Powering Your Cameras with a Single Cable

The standout feature of most NVR switches is their Power over Ethernet (PoE) capability. PoE is a technology that allows network cables (like Cat5e or Cat6) to carry electrical power along with data. This means that an IP camera, once connected to a PoE-enabled NVR switch, receives both its operational power and its network connection through that single Ethernet cable.

Benefits of PoE for IP Cameras:

• Simplified Installation: Eliminates the need for separate power outlets near each camera, allowing for greater flexibility in camera placement.
• Reduced Cabling: Less clutter and fewer cables to run, leading to a cleaner and more organized setup.
• Cost Savings: Reduces the need for additional electrical wiring, outlets, and power adapters, potentially saving on material and labor costs.
• Enhanced Reliability: Centralized power management from the switch can offer better power stability and easier troubleshooting.

There are different PoE standards, each offering varying power levels: IEEE 802.3af (PoE) provides up to 15.4W per port, IEEE 802.3at (PoE+) offers up to 30W, and IEEE 802.3bt (PoE++) can deliver up to 60W or even 100W for demanding devices like PTZ (Pan-Tilt-Zoom) cameras with heaters or advanced functionalities. When selecting an NVR switch, it’s crucial to match its PoE capabilities with the power requirements of your cameras.

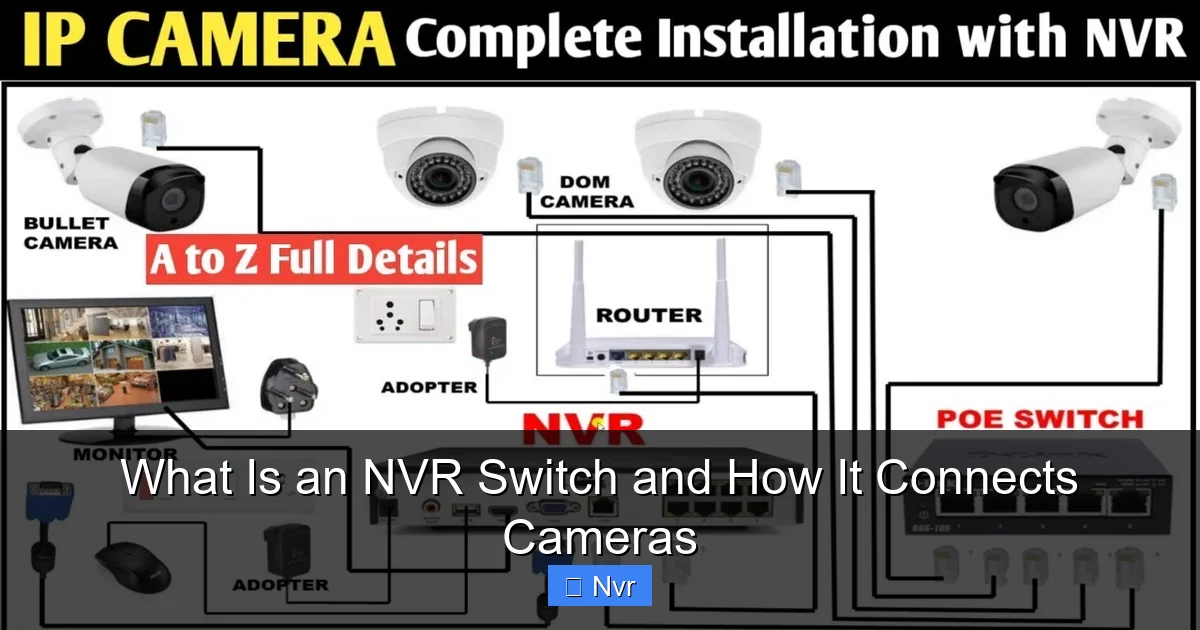

How an NVR Switch Connects Your Cameras to the NVR

The connectivity process with an NVR switch is surprisingly straightforward, yet highly efficient. Here’s a breakdown of the typical flow:

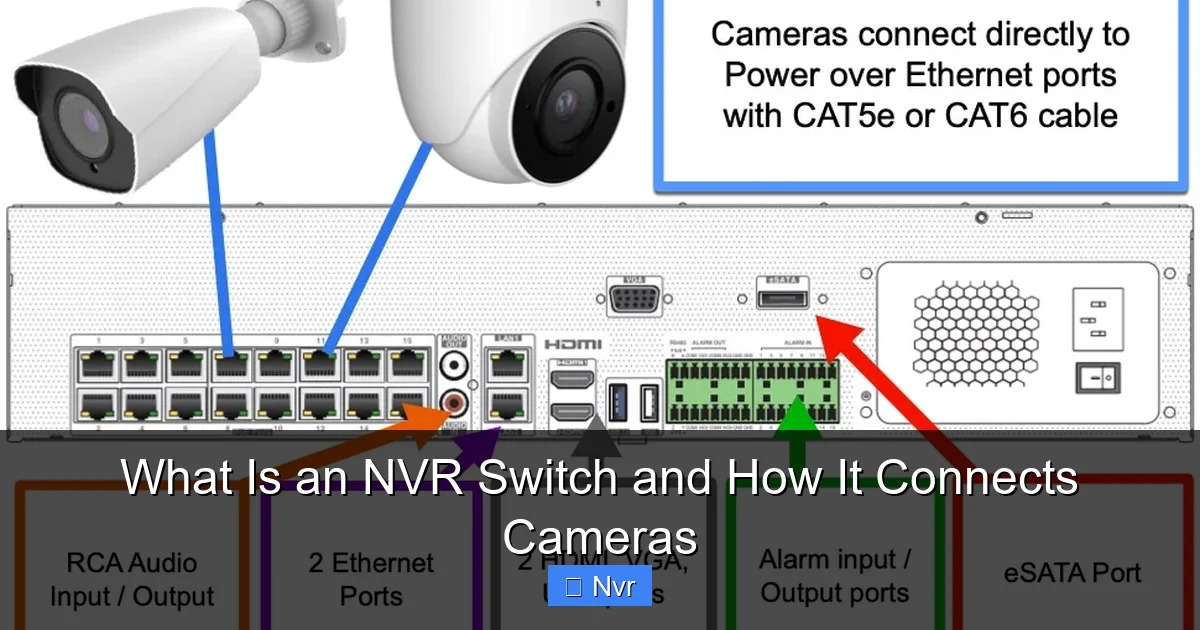

1. Camera to Switch: Each IP camera is connected to a PoE port on the NVR switch using a standard Ethernet cable (e.g., Cat5e or Cat6). The switch immediately provides power to the camera and establishes a network link.
2. Switch to NVR/Network: The NVR switch itself connects to your NVR. Often, the NVR has a dedicated Ethernet port for connecting to the local network or directly to a switch. Some NVRs even have built-in PoE ports, acting as their own small NVR switch for a limited number of cameras.
3. Data Flow: Once connected, the NVR discovers the cameras on the network. The video data from each camera flows through the Ethernet cable to the NVR switch, then from the switch to the NVR, where it is recorded and can be viewed.

This setup creates a dedicated, high-bandwidth network segment for your security cameras, minimizing interference with other network traffic and ensuring reliable video streaming. Whether you have 4, 8, 16, or even 32 cameras, a scalable PoE NVR switch provides the necessary ports and power budget to keep everything connected and running.

Key Benefits of Integrating an NVR Switch into Your Security System

Beyond simplified wiring, leveraging an NVR switch brings a host of advantages that significantly enhance the overall functionality and cost-effectiveness of your surveillance system.

• Optimal Performance: By creating a dedicated network segment for your IP cameras, an NVR switch helps prevent bandwidth congestion that might occur if cameras were sharing your general home or office network. This ensures smooth, uninterrupted video streaming, especially for high-resolution 4K cameras.
• Enhanced Scalability: Need to add more cameras later? No problem. As long as your PoE NVR switch has available ports and sufficient power budget, expanding your system is as simple as plugging in a new camera. This makes your security infrastructure future-proof.
• Reduced Points of Failure: Centralizing power through the security camera switch means fewer power bricks and outlets, reducing the potential for individual camera power failures.
• Flexible Design: Install cameras in locations far from traditional power outlets, such as high ceilings, exteriors, or remote corners of a property. A single Ethernet cable can span up to 100 meters (about 328 feet) without signal degradation.
• Professional Aesthetics: Fewer cables and power adapters lead to a much cleaner and more professional installation, which is particularly appealing for visible setups in commercial environments.

Industry data consistently shows the growing adoption of PoE in security, with a market size projected to reach billions, underscoring its efficiency and reliability for camera deployments.

Choosing the Right NVR Switch for Your Needs: What to Look For

Selecting the ideal NVR switch is crucial for the performance and longevity of your security system. Here are the key factors to consider:

Number of Ports

• Determine how many cameras you have currently and how many you anticipate adding in the future. Switches come in various configurations, commonly 4, 8, 16, or 24 PoE ports, plus one or two uplink ports for connection to the NVR or main network.

PoE Standard and Power Budget

• Check the power requirements of your IP cameras. Ensure the switch supports the necessary PoE standard (802.3af, 802.3at/PoE+, 802.3bt/PoE++).
• Crucially, verify the switch’s total power budget (e.g., 60W, 120W, 250W). This is the maximum total power the switch can supply to all connected PoE devices. Sum the maximum power draw of all your cameras and add a buffer (e.g., 20%) to ensure stability.

Managed vs. Unmanaged Switch

• Unmanaged Switches: Simple plug-and-play operation, ideal for basic setups. They offer no configuration options.
• Managed Switches: Provide advanced features like VLANs (Virtual Local Area Networks) for network segmentation, QoS (Quality of Service) for prioritizing video traffic, and monitoring tools. While more complex and expensive, they offer greater control and optimization for larger or more demanding systems.

Gigabit Ethernet

• For high-resolution cameras (2MP, 4MP, 8MP/4K), ensure the switch has Gigabit (1000Mbps) ports. This prevents network bottlenecks and ensures smooth, high-quality video streams, especially when multiple cameras are recording simultaneously. Fast Ethernet (10/100Mbps) may suffice for lower-resolution cameras but can be a limitation for modern systems.

Durability and Environment

• Consider where the switch will be located. For harsh environments (extreme temperatures, dust), an industrial-grade PoE switch with robust housing might be necessary.

Installation Tips and Best Practices for Your NVR Switch

To ensure a smooth and reliable security system, follow these best practices when installing your NVR switch:

• Plan Your Layout: Before running cables, map out camera locations and plan the shortest, most secure cable routes to the switch. This saves time and material.
• Use Quality Cables: Invest in high-quality Cat5e or Cat6 Ethernet cables. Cheaper cables can lead to signal loss and power issues, especially over longer distances or with higher PoE demands.
• Ventilation is Key: Switches can generate heat. Ensure the NVR switch is installed in a well-ventilated area, away from direct sunlight or heat sources, to prevent overheating and extend its lifespan.
• Check Power Budgets: Always double-check that your total camera power requirements do not exceed the switch’s overall PoE power budget. Overloading the switch can lead to camera instability or failure.
• Secure Connections: Use proper cable termination (RJ45 connectors) and consider using waterproof enclosures for outdoor cable connections to prevent moisture ingress.
• Organize and Label: Use cable ties and labels to keep your wiring neat and easily identifiable. This simplifies troubleshooting and future maintenance.

By following these guidelines, you can ensure your NVR switch provides a stable and efficient backbone for your entire IP surveillance system.

PoE Standards at a Glance

Standard	Maximum Power at Port (W)	Typical Devices Supported
IEEE 802.3af (PoE)	15.4W	Standard IP cameras, VoIP phones, wireless access points
IEEE 802.3at (PoE+)	30W	High-performance IP cameras, PTZ cameras, video phones, thin clients
IEEE 802.3bt (PoE++) Type 3	60W	Video conferencing systems, LED lighting, powerful PTZ cameras
IEEE 802.3bt (PoE++) Type 4	100W	Laptops, large LED displays, advanced building management systems

Conclusion: The Unsung Hero of IP Surveillance

The NVR switch, particularly one with PoE capabilities, is more than just a networking device; it’s the unsung hero that brings modern IP camera systems to life. By streamlining power and data delivery through a single cable, it dramatically simplifies installation, reduces clutter, and ensures optimal performance for your security cameras.

Whether you’re setting up a small home surveillance system or a large commercial network, understanding and correctly choosing an NVR switch is paramount. It ensures your cameras are reliably powered, connected, and ready to capture critical footage, providing the peace of mind you expect from a robust security solution. Invest wisely in a quality PoE NVR switch, and you’ll lay a solid foundation for a powerful and efficient security system for years to come.

Frequently Asked Questions

What exactly is an NVR switch?

An NVR switch is a specialized network switch, often with Power over Ethernet (PoE) capabilities, designed to simplify the connection and power delivery for IP cameras to a Network Video Recorder (NVR) system. It acts as an intermediary, centralizing camera connections before they reach the NVR.

What is the primary function of an NVR switch in a surveillance system?

The main purpose of an NVR switch is to provide network connectivity and power (via PoE) to multiple IP cameras, and then consolidate these connections into a single uplink to the NVR. This streamlines cabling and makes installation cleaner and more efficient by combining power and data over one cable.

How does an NVR switch connect IP cameras to the Network Video Recorder?

IP cameras connect directly to the PoE ports on the NVR switch using standard Ethernet cables. The NVR switch then uses an uplink port to connect to the NVR, allowing the NVR to discover, access, and record footage from all connected cameras seamlessly.

What makes an NVR switch different from a standard PoE switch?

While similar to a standard PoE switch in providing power and data, an NVR switch is specifically optimized for surveillance systems, often offering features like plug-and-play compatibility with certain NVR brands or higher port counts tailored for camera deployments. It’s designed with the needs of a security camera system in mind.

What are the main benefits of using an NVR switch for IP cameras?

The primary benefits include simplified wiring by combining power and data over a single Ethernet cable (PoE), reduced clutter, and easier scalability for adding more cameras to your system. It also centralizes camera management before feeding into the NVR, improving overall system organization and troubleshooting.

Do I always need a dedicated NVR switch for my surveillance system?

Not always, but an NVR switch is highly recommended for systems with multiple IP cameras to simplify installation, cable management, and provide dedicated bandwidth. For systems with only one or two PoE-enabled cameras, a PoE NVR with integrated ports or a small PoE injector might suffice, but a dedicated NVR switch offers better scalability and performance for larger setups.
