What Are DVR NVR Channels and How to Configure Them

Ever found yourself staring at a security system product description, scratching your head at terms like “4-channel DVR” or “16-channel NVR”? You’re not alone! Understanding DVR NVR channels is fundamental to setting up an effective and scalable video surveillance system. It’s the core specification that dictates how many cameras your system can support, directly impacting your property’s coverage and overall security.

Whether you’re a homeowner looking to secure your family, a small business owner protecting assets, or a professional installer, demystifying DVR NVR channels is crucial. This comprehensive guide will walk you through what these channels are, the key differences between DVR and NVR systems in this context, how to determine your ideal channel count, and even provide actionable steps on how to configure DVR NVR channels for optimal performance. Let’s dive in!

Understanding DVR and NVR Systems: A Quick Refresh

Before we delve into channels, let’s briefly recap the two main types of video recording systems:

• Digital Video Recorders (DVRs): Primarily used with analog security cameras, DVRs process and store video footage received via coaxial cables. They convert the analog signal into a digital format for recording and playback.
• Network Video Recorders (NVRs): Designed for Internet Protocol (IP) cameras, NVRs record video footage directly from the network. IP cameras process the video themselves before sending a digital stream to the NVR via an Ethernet cable, often powered by Power over Ethernet (PoE).

The type of system you choose directly influences how channels are managed and the kind of cameras you can connect.

What Exactly Are DVR/NVR Channels?

In simple terms, DVR NVR channels refer to the number of individual camera inputs your recording device can support simultaneously. Think of each channel as a dedicated port or connection point for one camera. If a DVR or NVR is advertised as an “8-channel system,” it means you can connect and record footage from up to eight cameras at once.

DVR Channels vs. NVR Channels: Key Differences

While both systems use the term “channels,” the underlying technology differs significantly:

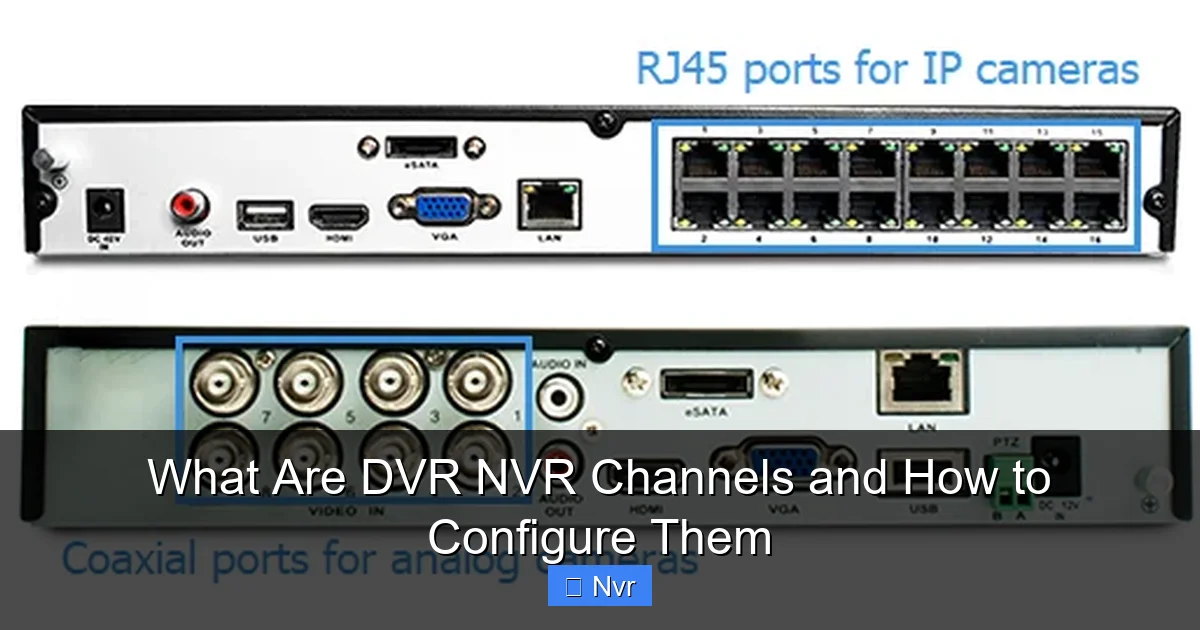

• DVR Channels: Each channel on a DVR corresponds to a physical BNC input port where an analog camera is connected via a coaxial cable. The DVR’s internal hardware is responsible for digitizing and compressing the video stream from each analog camera.
• NVR Channels: NVR channels represent the number of IP cameras the system can discover, manage, and record from over a network connection. Unlike DVRs, NVRs don’t have a direct physical port for each camera (though many NVRs include built-in PoE switches with dedicated Ethernet ports). The processing is primarily done by the IP cameras themselves, with the NVR acting as a central recording and management hub. This network-based approach often offers greater flexibility in camera placement and system scalability.

How Many Channels Do You Really Need? Factors to Consider

Choosing the right channel count is paramount for effective video surveillance. It’s not just about today’s needs but also potential future expansion. Here’s what to consider:

Property Size and Coverage Area

A larger property will naturally require more cameras to eliminate blind spots. For instance, a small apartment might be covered by 2-4 cameras, while a medium-sized home often benefits from 8-16. Commercial properties or large estates could easily require 32, 64, or even more channels.

Critical Surveillance Zones

Identify high-priority areas: main entry points (front door, back door), windows, garage, valuable items, cash registers, and common areas. Each critical zone might warrant one or more cameras, potentially from different angles, which adds to your required channel count.

Future Expansion Plans

It’s almost always a good idea to invest in a system with more channels than you currently need. For example, if you plan for 4 cameras now but might add two more next year, an 8-channel system is a wiser choice than a 4-channel one. Upgrading an entire DVR or NVR later can be more costly and time-consuming than simply adding cameras to an existing, higher-capacity system. Many experts suggest purchasing a system with at least 25-50% more channels than your immediate needs.

Budget Considerations

More channels generally equate to a higher upfront cost for the DVR or NVR itself. Balance your security needs with your financial constraints, but remember that compromising on crucial coverage to save a few dollars might prove costly in the long run.

Configuring Your DVR/NVR Channels: A Step-by-Step Guide

Once you’ve chosen your system, setting up the DVR NVR channels involves both physical connections and software configuration.

Physical Connection (DVR)

For DVRs, simply connect each analog camera to an available BNC port on the back of the DVR using coaxial cables. Ensure the cables are securely fastened and that each camera receives adequate power from a separate power adapter or a centralized power supply box.

Network Connection (NVR)

For NVRs, connect your IP cameras to the NVR’s built-in PoE ports or to an external PoE switch that is then connected to the NVR’s LAN port. Ensure all cameras and the NVR are on the same local area network (LAN). Cameras will typically receive power directly via the Ethernet cable if connected to a PoE-enabled NVR or switch.

Software Configuration

This is where you activate and manage each channel:

1. Access the Interface: Connect a monitor to your DVR/NVR and use a mouse, or access its web interface via a computer on the same network.
2. Discover Cameras (NVR): NVRs usually have an “IP Camera Search” or “Add Camera” function. The NVR will scan the network for compatible IP cameras. Select the discovered cameras and add them to specific channels. You’ll likely need to enter each camera’s default password (and change it immediately for security).
3. Verify Connections (DVR): For DVRs, once connected physically, the camera feed should appear automatically on the corresponding channel.
4. Configure Settings: For each active channel, you can adjust various settings:
   • Resolution & Frame Rate: Higher resolution (e.g., 4K) and frame rate (e.g., 30fps) consume more bandwidth and storage.
   • Recording Schedule: Continuous, motion-activated, or scheduled recording.
   • Motion Detection Zones: Define specific areas within the camera’s view to trigger recording.
   • Video Quality: Compression settings affecting file size and clarity.

Testing and Optimization

After configuration, thoroughly test each camera channel. Check live views, playback recorded footage, and verify motion detection alerts. Adjust camera angles and settings as needed to ensure optimal coverage and performance.

Common Channel Counts and Their Ideal Use Cases

To help you visualize, here are some typical channel count scenarios:

• 4-Channel Systems: Ideal for small apartments, single-car garages, or monitoring a couple of critical entry points. Often chosen by budget-conscious homeowners for basic coverage.
• 8-Channel Systems: A popular choice for average-sized homes, offering comprehensive coverage for front/back doors, garage, side yards, and common indoor areas. Also suitable for small offices.
• 16-Channel Systems: Recommended for larger homes, small-to-medium businesses (e.g., retail stores, restaurants), and properties with multiple outbuildings. Provides extensive coverage with fewer blind spots.
• 32-Channel Systems and Up: Primarily used in commercial and industrial settings, large retail complexes, warehouses, schools, or multi-tenant buildings where extensive monitoring is required across numerous zones.

Conclusion

Understanding DVR NVR channels is the cornerstone of designing and implementing an effective security camera system. It’s not just a technical specification; it’s a direct indicator of your system’s capacity to protect what matters most. By carefully considering your property’s unique needs, critical areas, and future expansion plans, you can select a system with the ideal channel count.

Remember, a well-planned and properly configured surveillance system provides invaluable peace of mind. So, take the time to assess your requirements, choose wisely, and confidently configure DVR NVR channels to create a robust security solution tailored just for you.

Frequently Asked Questions

What exactly are DVR and NVR channels?

DVR and NVR channels refer to the number of video inputs a recording device can support for surveillance cameras. Each channel provides a dedicated connection point for a single camera, enabling the device to process, display, and record footage from multiple cameras simultaneously.

What is the primary difference between DVR channels and NVR channels?

DVR channels are designed to connect with traditional analog cameras via coaxial cables, converting the analog signal into a digital format. In contrast, NVR channels are built for IP cameras, connecting them directly over an Ethernet network to record pre-digitized video streams.

How do I determine how many DVR NVR channels I need for my security system?

To determine the ideal number of DVR NVR channels, count all the cameras you plan to install initially and consider any potential future additions. It’s often advisable to select a recorder with a few extra channels beyond your immediate needs to allow for system expansion without a full hardware upgrade.

How do I add or configure cameras to my DVR or NVR channels?

For DVR channels, you physically connect analog cameras using BNC coaxial cables to the corresponding ports on the DVR. For NVR channels, IP cameras are typically connected to the NVR’s PoE ports or to the same local network, then discovered and added through the NVR’s software interface.

Can I mix different types of cameras on my DVR or NVR channels?

While traditional DVRs support only analog cameras and NVRs only IP cameras, some modern hybrid DVRs (HDVRs) offer versatility. These HDVRs can support a combination of both analog and certain IP cameras on their available channels, providing more flexibility for mixed security setups.

Are there limitations to expanding the number of DVR NVR channels?

Yes, the number of DVR NVR channels is fixed by the hardware design of the recording unit itself and generally cannot be expanded internally. If your camera needs exceed the available channels on your current device, you would typically need to upgrade to a new DVR or NVR with a higher channel count or integrate an additional recorder.
