What Is DVR NVR XVR – Complete Guide

Navigating the world of security camera systems can feel like learning a new language. You’ve probably heard terms like DVR, NVR, and XVR thrown around, and it’s easy to get confused about what each one does and which is right for your home or business. Choosing the wrong video recorder can lead to compatibility headaches, performance issues, or even a system that doesn’t meet your security needs.

Fear not! This comprehensive guide will break down the complexities, helping you understand the core differences, advantages, and disadvantages of each system. By the end, you’ll be equipped with the knowledge to make an informed decision for your video surveillance setup. Let’s dive in!

Understanding the Basics: What is DVR?

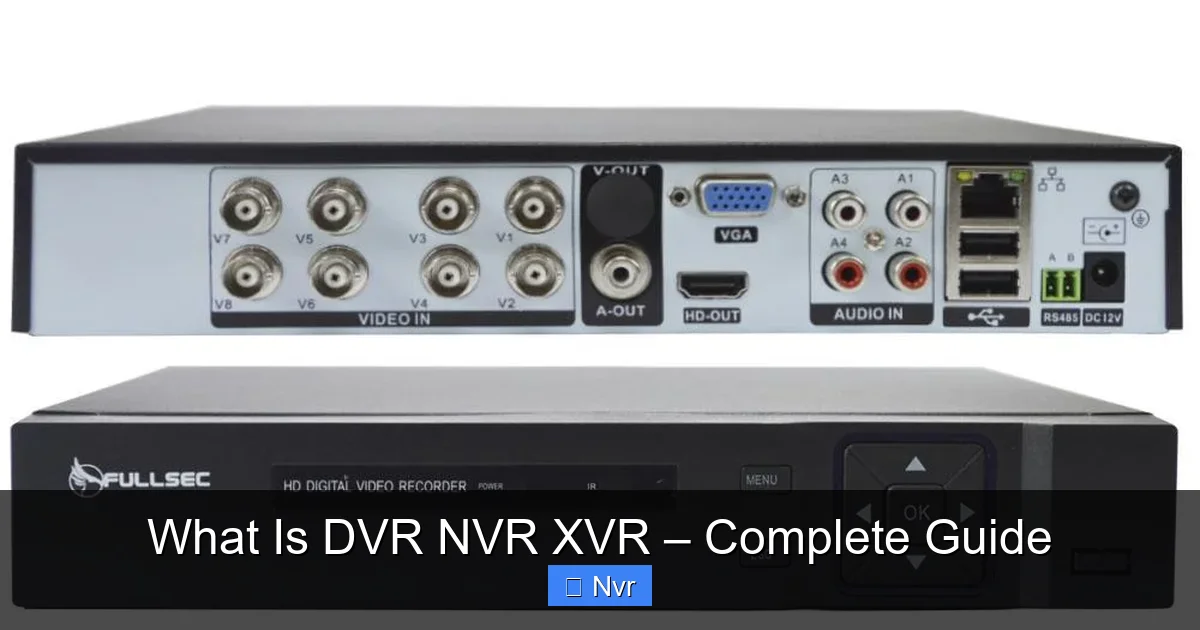

The Digital Video Recorder (DVR) is perhaps the most traditional and widely recognized type of video surveillance system. DVRs work exclusively with analog cameras, which connect directly to the recorder via coaxial cables (like the ones used for old cable TV). The DVR processes and stores the video footage digitally.

Key Characteristics of DVR Systems:

• Camera Compatibility: Only works with analog security cameras (CVBS, AHD, HD-TVI, HD-CVI).
• Cabling: Requires coaxial cables for video transmission and separate power cables for each camera.
• Video Processing: Video signals are processed at the DVR unit itself, then converted to a digital format for storage.
• Resolution: Historically limited to lower resolutions (e.g., D1, 960H). Modern HD-over-Coax DVRs can support 720p, 1080p, and even 4K resolutions, but still rely on coaxial infrastructure.
• Cost: Generally the most budget-friendly option, especially if you have existing analog cabling.

DVR security camera systems are ideal for upgrading older analog setups or for users on a tighter budget who don’t require advanced features or extremely high resolutions. They are straightforward to install if the infrastructure is already in place.

Stepping Up: What is NVR?

The Network Video Recorder (NVR) represents a more modern approach to video surveillance. Unlike DVRs, NVRs work exclusively with IP cameras (Internet Protocol cameras). These cameras are essentially mini-computers with their own built-in video encoders, processing the video footage directly at the camera source before sending it digitally over a network.

Key Characteristics of NVR Systems:

• Camera Compatibility: Exclusively uses IP cameras.
• Cabling: Connects to cameras using standard Ethernet cables (Cat5e, Cat6). Many NVRs feature Power over Ethernet (PoE) ports, meaning a single Ethernet cable can provide both power and data to the camera, simplifying installation.
• Video Processing: Video is processed at the camera and then streamed digitally to the NVR for storage and viewing.
• Resolution: Supports significantly higher resolutions, including 1080p, 4K, 8K, and beyond. This allows for greater detail and wider coverage.
• Features: Often includes advanced features like intelligent video analytics (IVA), facial recognition, object detection, and better integration with smart home systems.
• Scalability: Highly scalable and flexible, as cameras can be located anywhere on the network, not just within a direct cable run from the recorder.

NVR security camera systems are the go-to choice for new installations requiring high-definition video, advanced features, and greater flexibility. While generally more expensive than DVRs, the benefits in image quality and functionality often outweigh the initial cost.

The Best of Both Worlds: What is XVR?

The eXtended Video Recorder (XVR) is a relatively newer player designed to bridge the gap between traditional analog and modern IP systems. An XVR is essentially a hybrid DVR, offering compatibility with multiple camera technologies simultaneously.

Key Characteristics of XVR Systems:

• Camera Compatibility: Supports a wide range of camera types, typically including standard analog (CVBS), High-Definition over Coax (AHD, HD-TVI, HD-CVI), and a certain number of IP cameras.
• Cabling: Utilizes both coaxial cables (for analog and HD-over-Coax cameras) and Ethernet cables (for IP cameras).
• Flexibility: The main advantage is its versatility. You can leverage existing coaxial infrastructure while gradually integrating newer IP cameras.
• Cost-Effectiveness: An excellent solution for those looking to upgrade an older analog system without replacing all their cameras and cabling at once. It offers a path to higher resolution and IP features without a complete overhaul.
• Video Processing: Processes signals from both analog/HD-over-Coax cameras (at the XVR) and IP cameras (at the camera).

An XVR recorder is perfect for users with existing analog setups who want to improve their image quality, add a few IP cameras, or future-proof their security camera systems without committing to a full NVR conversion immediately. It provides a balanced approach to budget and performance.

DVR vs. NVR vs. XVR: Key Differences

To help solidify your understanding, here’s a direct comparison of the three types of video recorders:

Feature	DVR (Digital Video Recorder)	NVR (Network Video Recorder)	XVR (eXtended Video Recorder)
Camera Type	Analog (CVBS, AHD, HD-TVI, HD-CVI)	IP Cameras only	Analog, HD-over-Coax, and IP Cameras (Hybrid)
Cabling	Coaxial cables + separate power	Ethernet (Cat5e/6), often with PoE	Coaxial and Ethernet
Video Processing	At the DVR unit	At the camera	At XVR (analog) & at camera (IP)
Resolution	Up to 4K (via HD-over-Coax)	Significantly higher (4K, 8K+)	Up to 4K (mix of analog/IP capabilities)
Features	Basic recording, remote viewing	Advanced analytics, AI, better integration	Mix of basic and some advanced (depending on IP cameras used)
Installation	Relatively simple with existing coax	Can be more complex without existing network/PoE	Flexible, allows leveraging existing infrastructure
Cost (initial)	Lowest	Highest	Medium (good value for hybrid needs)

Choosing the Right Video Recorder for Your Needs

Deciding between a DVR NVR XVR system depends on several critical factors. Consider the following:

1. Existing Infrastructure:
   • Coaxial cables already in place? A DVR or XVR allows you to reuse existing wiring, saving on installation costs.
   • No existing wiring or prefer modern networking? An NVR system is ideal, especially if you can run Ethernet cables or use wireless IP cameras.
2. Desired Video Quality and Features:
   • Need the sharpest images (4K and beyond) and advanced analytics (AI, facial recognition)? An NVR with high-resolution IP cameras is your best bet.
   • Standard HD resolution is sufficient for basic monitoring? Modern HD-over-Coax DVRs and XVRs can deliver excellent image quality.
3. Budget:
   • Tight budget? DVR systems are often the most affordable entry point.
   • Willing to invest more for cutting-edge technology and future-proofing? An NVR is a stronger long-term investment.
   • Looking for a cost-effective upgrade path? An XVR offers a balanced approach, letting you mix and match.
4. Scalability and Future Needs:
   • Planning to expand your system significantly or integrate with smart home devices? NVR systems offer superior flexibility and integration capabilities.
   • Need to slowly upgrade over time? An XVR provides a smooth transition from analog to IP.

According to industry reports, the market for NVRs is expected to grow significantly due to increasing demand for high-resolution surveillance and smart features, highlighting a clear trend towards IP-based solutions. However, DVRs and XVRs continue to hold strong market segments, especially in scenarios where legacy infrastructure or cost-effectiveness are primary concerns.

Conclusion

Choosing the right video surveillance recorder – whether it’s a DVR, NVR, or XVR – is a crucial decision for your security setup. Each system offers distinct advantages tailored to different needs, budgets, and technical requirements. While DVRs provide a cost-effective solution for traditional analog setups, NVRs excel in delivering high-resolution, feature-rich IP-based security. XVRs offer a flexible, hybrid approach, allowing you to gradually upgrade and blend old and new technologies.

By carefully evaluating your existing infrastructure, desired features, budget, and future expansion plans, you can confidently select the perfect recording solution to safeguard your property. Don’t hesitate to consult with security professionals to ensure your choice aligns perfectly with your specific security goals.

Frequently Asked Questions

What is the fundamental difference between DVR, NVR, and XVR systems?

A DVR (Digital Video Recorder) primarily processes analog camera signals using coaxial cables, while an NVR (Network Video Recorder) records digital footage from IP cameras over a network. An XVR (eXtended Video Recorder) is a hybrid solution designed to support multiple camera types simultaneously, including traditional analog, various HD-over-Coax (HD-TVI, CVI, AHD), and IP cameras.

Which type of recorder—DVR, NVR, or XVR—is best suited for my security camera setup?

The best choice depends on your existing infrastructure and future plans. If you have older analog cameras and want a cost-effective solution, a DVR works well. An NVR is ideal for new installations using modern IP cameras, offering higher resolution and flexibility. An XVR is the most versatile option if you have a mix of camera types or plan to gradually upgrade your system.

Can an XVR truly combine different camera technologies like analog and IP cameras?

Yes, an XVR is specifically engineered to be a truly hybrid solution. It allows you to connect and record footage from traditional analog cameras via coaxial cables alongside newer IP cameras over an Ethernet network. This makes it an excellent choice for upgrading existing systems without having to replace all your cameras at once.

What are the key advantages of choosing an NVR over a traditional DVR system?

NVRs offer several significant advantages, including support for much higher resolution IP cameras, often providing clearer and more detailed images. They also commonly feature Power over Ethernet (PoE) ports, simplifying installation as cameras receive both power and data through a single cable. Additionally, NVRs provide greater flexibility in camera placement, as cameras don’t need a direct physical cable run to the recorder.

If I have an old DVR system, is an XVR a good upgrade path for me?

Absolutely, an XVR is an excellent and practical upgrade path for users with existing DVR systems. It allows you to continue utilizing your current analog cameras, protecting your initial investment, while simultaneously integrating newer, higher-resolution HD-over-Coax or IP cameras into the same system. This provides a flexible and cost-effective way to modernize your surveillance.

Do DVR, NVR, and XVR systems all support remote viewing and mobile access?

Yes, nearly all modern DVR, NVR, and XVR systems are equipped with features that support remote viewing and mobile access. Through dedicated smartphone apps or web browsers, you can typically view live camera feeds, review recorded footage, and manage system settings from virtually anywhere with an internet connection. This provides convenience and constant oversight of your property.
