NVR DVR HVR Explained: Key Differences and Uses

Are you looking to upgrade your home or business security, but feeling overwhelmed by the jargon? You’re not alone! The world of surveillance systems can be confusing, especially when terms like NVR DVR HVR are thrown around interchangeably. Understanding the differences between these core components is crucial for making an informed decision that meets your specific security needs and budget.

In this comprehensive guide, we’ll demystify these acronyms, breaking down what each system is, how it works, and most importantly, the key distinctions between them. By the end, you’ll clearly understand NVR vs DVR vs HVR and be equipped to choose the perfect security camera system for you.

NVR DVR HVR Explained: Key Differences and Uses

At the heart of any video surveillance system is a recorder, processing and storing footage from your cameras. While their ultimate goal is similar, the technology they employ, the types of cameras they support, and their overall capabilities vary significantly. Let’s dive into each one.

Understanding the Digital Video Recorder (DVR)

The Digital Video Recorder (DVR) is a traditional surveillance recorder operating with analog cameras. These cameras, often called CCTV, transmit raw video signals over coaxial cables (BNC connectors) directly to the DVR, which then converts them to digital for storage. This makes DVRs a familiar and often cost-effective choice for basic setups.

Key characteristics of a DVR system:

• Camera Compatibility: Exclusively works with analog security cameras (e.g., CVBS, AHD, TVI, CVI).
• Connectivity: Cameras connect directly to the DVR via dedicated coaxial cable runs.
• Processing: Video encoding and processing happen at the DVR unit.
• Power: Analog cameras typically require a separate power cable in addition to the coaxial video cable.
• Video Quality: Generally offers lower resolutions compared to IP systems, though modern analog formats (AHD, TVI, CVI) can reach 1080p and even 4K.

Exploring the Network Video Recorder (NVR)

The Network Video Recorder (NVR) is an advanced surveillance system working exclusively with IP cameras. These cameras act as mini-computers, processing and encoding video digitally at the camera before transmitting it over a network. This distributed processing model offers significant advantages in terms of video quality and system flexibility.

Key characteristics of an NVR system:

• Camera Compatibility: Exclusively works with IP cameras.
• Connectivity: Cameras connect to the NVR (or a network switch connected to the NVR) using standard Ethernet cables. Power over Ethernet (PoE) is a common feature, simplifying installation by providing both data and power through a single cable.
• Processing: Video encoding happens at the camera, sending a digital stream to the NVR for storage and management.
• Video Quality: Known for superior video quality and higher resolutions, commonly supporting 4MP, 8MP (4K), and even higher.
• Flexibility: Offers greater flexibility in camera placement, as long as there’s network access.

Introducing the Hybrid Video Recorder (HVR)

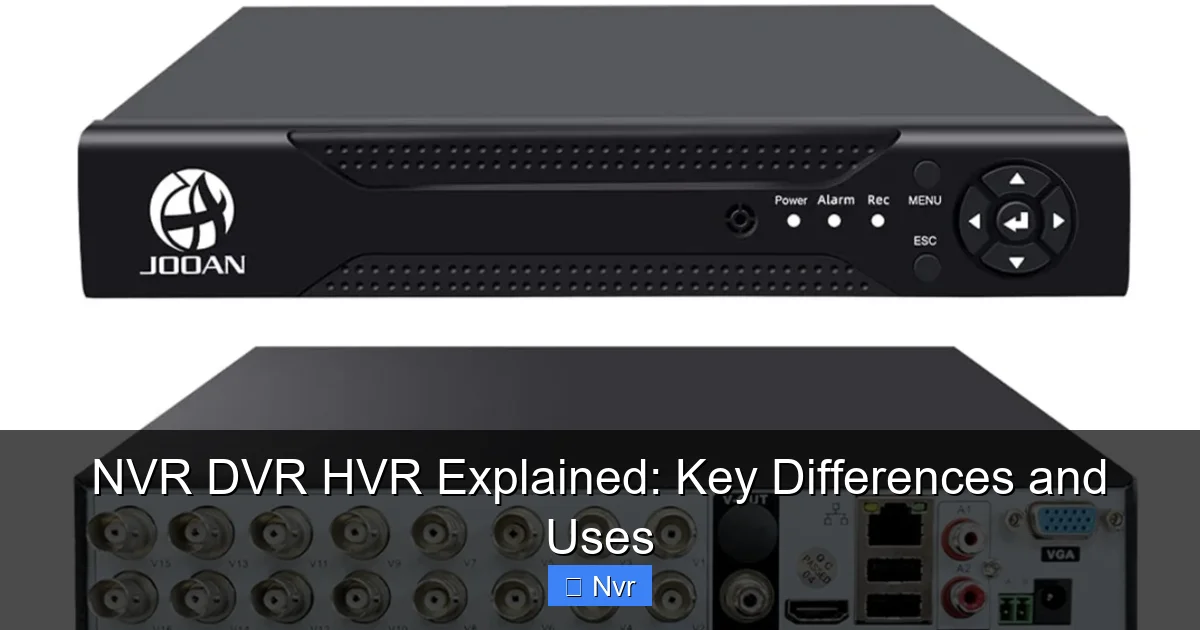

The Hybrid Video Recorder (HVR) bridges traditional analog and modern IP systems. It records footage from both analog (BNC) and IP cameras simultaneously, making it ideal for users with existing analog investments who want to gradually upgrade to IP without replacing their entire surveillance system.

Key characteristics of an HVR system:

• Camera Compatibility: Supports a mix of analog cameras (CVBS, AHD, TVI, CVI) and IP cameras.
• Connectivity: Features both BNC inputs for analog cameras and Ethernet ports for IP cameras.
• Upgrade Path: Ideal for transitioning from an older analog system to a newer IP-based system.
• Cost-Effective Upgrade: Allows you to leverage existing coaxial cabling for analog cameras while adding new IP cameras where higher quality or specific features are needed.

NVR vs. DVR vs. HVR: A Detailed Comparison

Let’s compare NVR vs DVR vs HVR across critical factors to highlight their core distinctions.

Camera Type and Resolution

• DVR: Analog cameras (e.g., 720p, 1080p, sometimes 4K with modern HD-over-Coax).
• NVR: IP cameras (e.g., 1080p, 4MP, 8MP/4K, 12MP+). Offers significantly higher resolution and clearer images.
• HVR: Mix of both analog and IP cameras. Resolutions vary based on the camera type connected.

Connectivity and Cabling

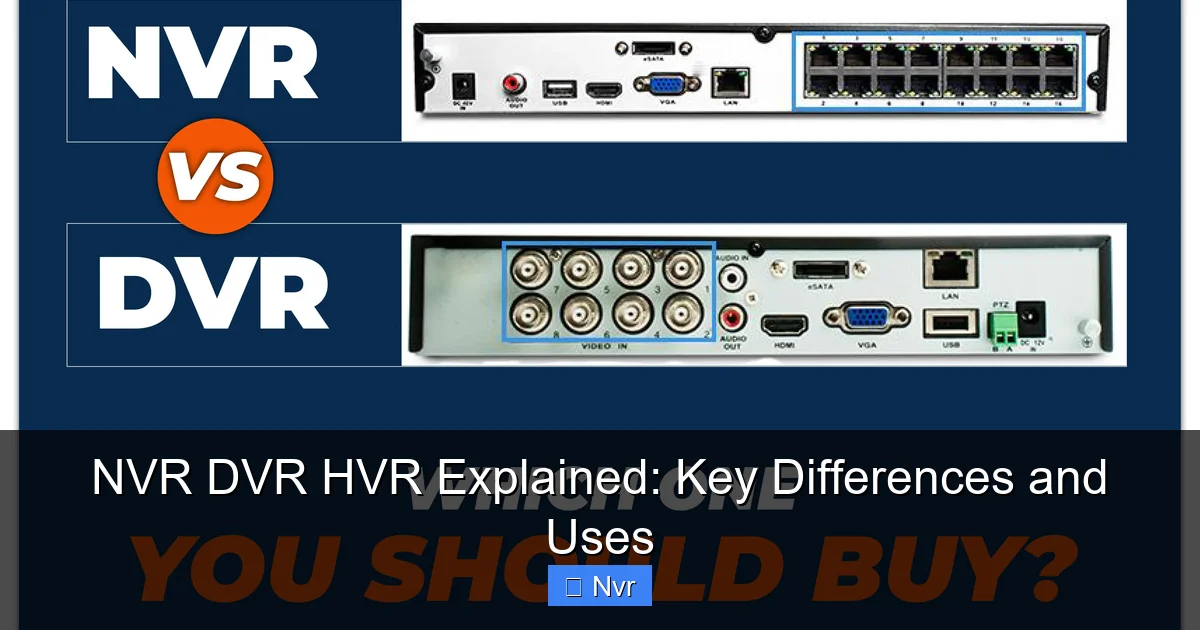

• DVR: Uses coaxial cable (BNC) for video, often separate power cables. Limited cable run distance without signal boosters.
• NVR: Uses Ethernet cable, often with PoE for single-cable power and data. Greater flexibility in cable length and networking.
• HVR: Uses both coaxial and Ethernet cables depending on the camera type.

Video Processing Location

• DVR: The DVR unit processes the raw analog video signal.
• NVR: IP cameras process and encode video at the camera, sending a compressed digital stream to the NVR. This distributed processing can mean higher overall system efficiency for large setups.
• HVR: Processes analog signals at the unit, receives pre-processed digital streams from IP cameras.

Powering the Cameras

• DVR: Cameras typically require local power or power sent over a separate wire alongside the coaxial cable.
• NVR: Frequently uses PoE (Power over Ethernet), meaning cameras draw power directly from the NVR or a PoE switch via the Ethernet cable, simplifying wiring.
• HVR: Analog cameras need separate power, IP cameras can use PoE if the HVR or switch supports it.

Installation and Flexibility

• DVR: Can be simpler for small, basic systems if you only use analog cameras. However, longer cable runs can be challenging.
• NVR: More flexible installation due to network connectivity. Cameras don’t need to be physically close to the NVR; they just need to be on the same network. Easier scaling.
• HVR: Offers flexibility for hybrid environments, but managing two types of cabling can add complexity.

Cost Considerations

• DVR: Generally lower initial cost for the recorder and analog cameras.
• NVR: Higher initial cost for the NVR unit and IP cameras, but often provides better long-term value, superior quality, and advanced features.
• HVR: Mid-range cost, as it blends technologies. Can save money if you’re gradually upgrading.

Here’s a quick comparison table for at-a-glance understanding:

Feature	DVR (Digital Video Recorder)	NVR (Network Video Recorder)	HVR (Hybrid Video Recorder)
Camera Type	Analog cameras (BNC)	IP cameras	Both Analog & IP cameras
Connectivity	Coaxial cable (BNC)	Ethernet cable (RJ45)	Coaxial & Ethernet
Video Processing	At the DVR unit	At the IP camera	Analog at HVR, IP at camera
Power (Cameras)	Separate power cable	PoE (Power over Ethernet) common	Analog: Separate; IP: PoE possible
Video Quality	Good (up to 4K on modern HD-over-Coax)	Excellent (up to 4K, 8K, and beyond)	Varies by camera type
Installation	Can be simpler for basic setups, but limited range.	Highly flexible, network-dependent.	Flexible for upgrades, can be complex to wire both types.

Choosing the Right Surveillance System for Your Needs

Now that you understand the core differences between NVR DVR HVR, which one is right for your home security or business security? Consider these factors:

• Budget: If you’re on a very tight budget and simply need basic coverage, a DVR system with entry-level analog cameras might be the most cost-effective initial investment.
• Existing Infrastructure: Do you have old analog cameras or existing coaxial cabling? An HVR system allows you to reuse your current setup while providing an upgrade path to IP cameras.
• Video Quality and Features: For the highest resolution, advanced features (like AI-powered analytics, facial recognition), and scalability, an NVR system with IP cameras is the clear winner. This is ideal for critical areas where detail matters, such as monitoring cash registers or identifying intruders.
• Ease of Installation: If you prefer a simpler wiring scheme, NVR systems with PoE cameras can be much easier to install for a DIY enthusiast, as only one cable per camera is needed.
• Scalability: NVR systems are inherently more scalable. You can easily add more cameras, integrate them into larger networks, and manage them remotely with greater flexibility.

According to recent industry reports, the global video surveillance market is projected to grow significantly, with a clear trend towards IP-based solutions due to their superior capabilities and declining costs over time. Investing in an NVR system often represents a future-proof choice.

Navigating the options for a new security camera system, whether for home security or business security, doesn’t have to be daunting. By understanding the fundamental differences between NVR DVR HVR, you can make a confident decision. While DVRs offer a budget-friendly entry point, NVRs provide unparalleled image quality, flexibility, and advanced features for those seeking a modern, scalable solution. And for those in between, the HVR offers a convenient bridge. Assess your priorities, budget, and future needs, and choose the recorder that best secures your peace of mind.

Frequently Asked Questions

What is the primary difference between an NVR and a DVR security system?

The core difference lies in how they process video signals. A DVR (Digital Video Recorder) processes analog video signals from traditional CCTV cameras directly at the recorder, whereas an NVR (Network Video Recorder) processes digital video signals from IP cameras at the camera itself before receiving them over a network.

Which type of recorder, NVR or DVR, is best suited for IP cameras?

An NVR (Network Video Recorder) is specifically designed to work with IP cameras. It records digital streams directly from network cameras, offering higher resolution and more advanced features. A standard DVR is not compatible with IP cameras.

What is an HVR, and how does it fit in with NVR and DVR systems?

An HVR (Hybrid Video Recorder) combines the functionalities of both a DVR and an NVR. It is designed to record video from both traditional analog cameras via coaxial cables and modern IP cameras over a network, providing flexibility for existing and future camera setups.

Can I connect analog cameras to an NVR, or IP cameras to a DVR?

Generally, a standard NVR only works with IP cameras, and a standard DVR only works with analog cameras. If you need to integrate both types of cameras into one system, an HVR (Hybrid Video Recorder) is the appropriate solution as it supports both technologies.

What are the key advantages of choosing an NVR system over a traditional DVR?

NVR systems typically offer superior video quality (often 1080p and higher), greater flexibility in camera placement through Power over Ethernet (PoE), and more advanced smart analytics directly from the IP cameras. They are also generally easier to scale and integrate into existing network infrastructures.

When might a DVR system still be a better choice compared to an NVR?

A DVR system can be a more cost-effective choice if you already have existing coaxial cabling or older analog cameras you wish to retain for your security system. They are also simpler for very basic, smaller installations where advanced features and very high resolution are not critical requirements.
